Installation Procedure

  1. Install the positive battery cable into the wire loom.

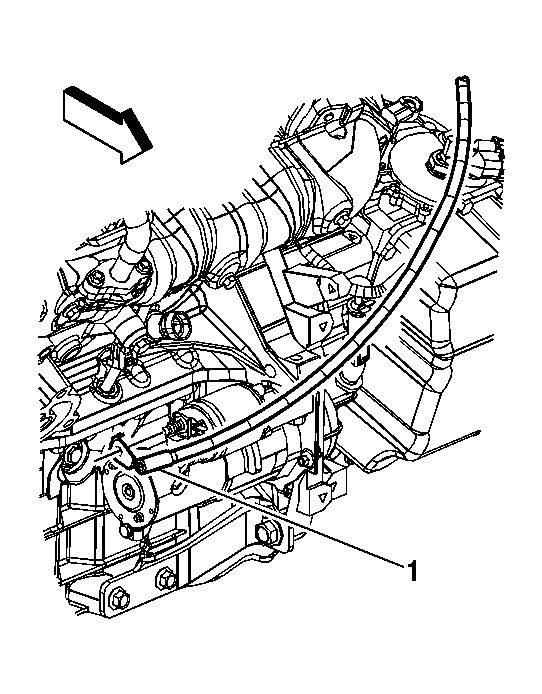

    2. Fig 1: View Of Positive Battery Cable At Starter Solenoid
    GM1371160Courtesy of GENERAL MOTORS CORP.
  2. Connect the positive battery cable (1) to the starter solenoid.

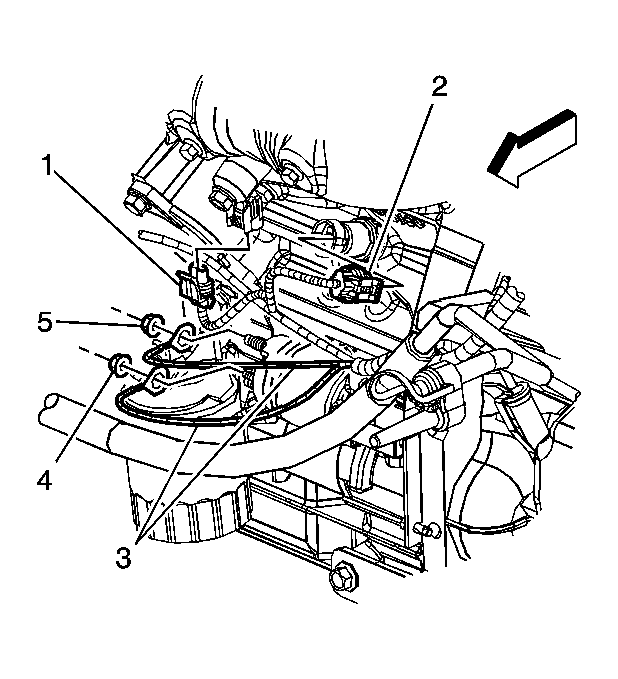

    3. Fig 2: View Of Knock Sensor & Oil Pressure Indicator Switch Electrical Connectors
    GM1371162Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the positive battery terminal nut (5) to the starter

    Tighten:  Tighten the nut to 10 N.m (89 lb ft).

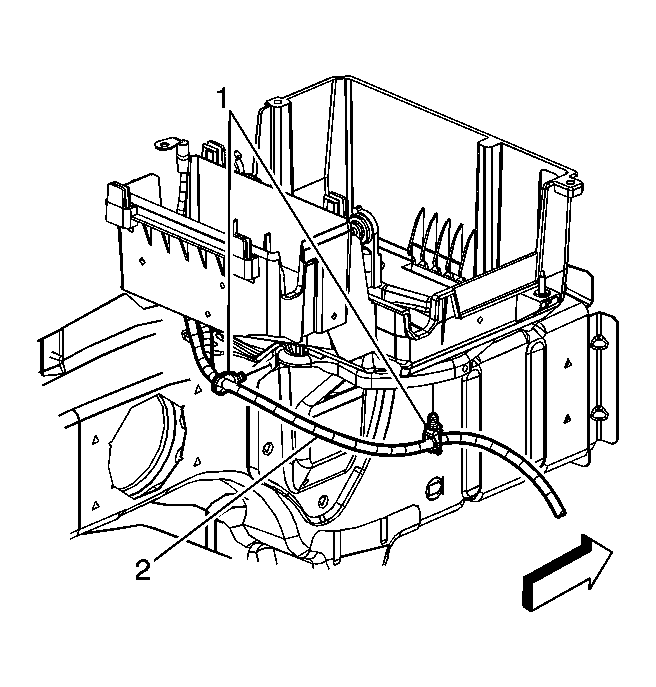

    4. Fig 3: View Of Battery Cable Retainers At Battery Tray
    GM1371155Courtesy of GENERAL MOTORS CORP.
  4. Connect the battery cable retainers (1) to the battery tray.
  5. Install the battery box. Refer to Battery Box Replacement .
    6. Fig 4: Removing/Installing Underhood Electrical Wiring
    GM934966Courtesy of GENERAL MOTORS CORP.
  6. Install the positive battery cable (2) to the UHFB.
  7. Install the positive battery cable nut to the UHFB.

    Tighten:  Tighten the nut to 15 N.m (11 lb ft).

  8. Install the UHFB cover.
  9. Install the battery. Refer to Battery Replacement .
