Removal Procedure

IMPORTANT:
  • Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
  • Always route the replacement cable the same way as the original cable.
    Fig 1: View Of Battery Cable Retainers At Battery Tray
    GM1371155Courtesy of GENERAL MOTORS CORP.
  1. Remove the battery box. Refer to Battery Box Replacement .
  2. Disconnect the battery cable retainers (1) from the battery tray.

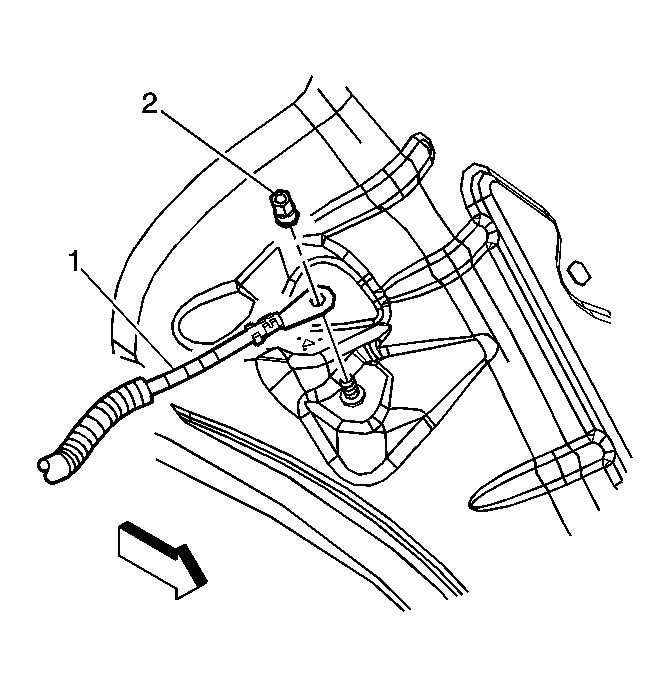

    3. Fig 2: View Of Negative Battery Cable At Inner Fender Body Ground Stud
    GM1371157Courtesy of GENERAL MOTORS CORP.
  3. Remove the negative battery cable nut (2) and cable (1) from the inner fender body ground stud.

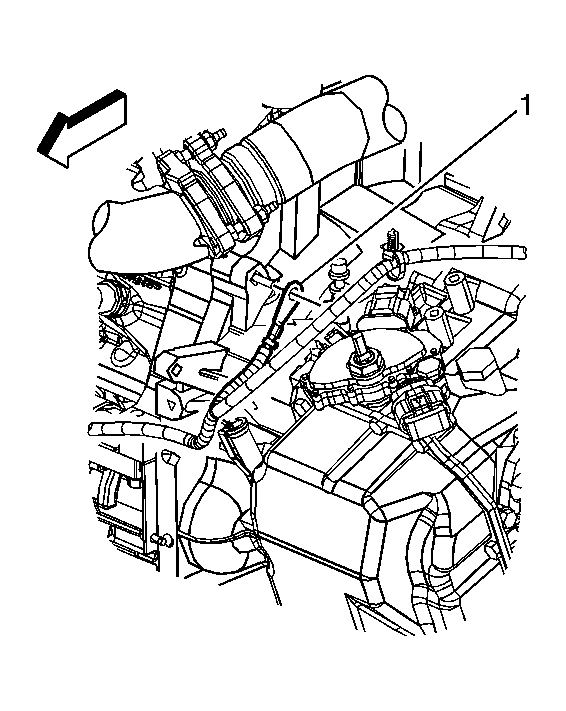

    4. Fig 3: View Of Negative Battery Cable At Transaxle Stud
    GM1371161Courtesy of GENERAL MOTORS CORP.
  4. Remove the negative battery cable nut and cable (1) from the transaxle stud.
  5. Remove the negative battery cable from the wire loom.
