Installation Procedure

    Fig 1: Removing/Installing Wheel Speed Sensor
    GM929664Courtesy of GENERAL MOTORS CORP.
  1. Install the wheel speed sensor to the wheel bearing/hub assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the wheel speed sensor mounting bolt.

    Tighten:  Tighten the bolt to 8 N.m (71 lb in).

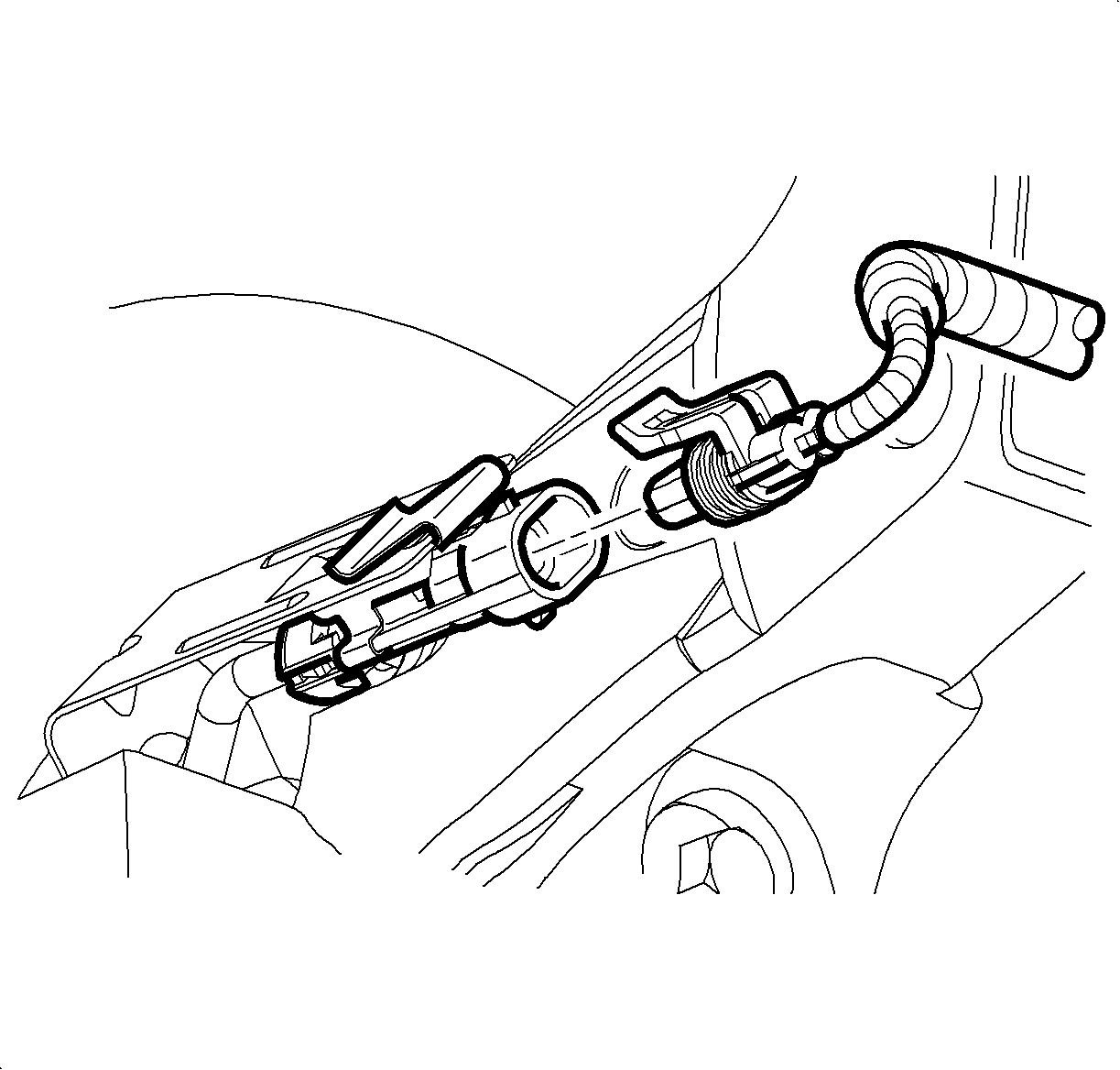

    3. Fig 2: View Of Front Wheel Speed Sensor
    GM926677Courtesy of GENERAL MOTORS CORP.
  3. Connect the wheel speed sensor electrical connector.
  4. Install the brake rotor. Refer to Brake Rotor Replacement in Disc Brakes.
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Lower the vehicle.
