Power Seat Systems Component Views

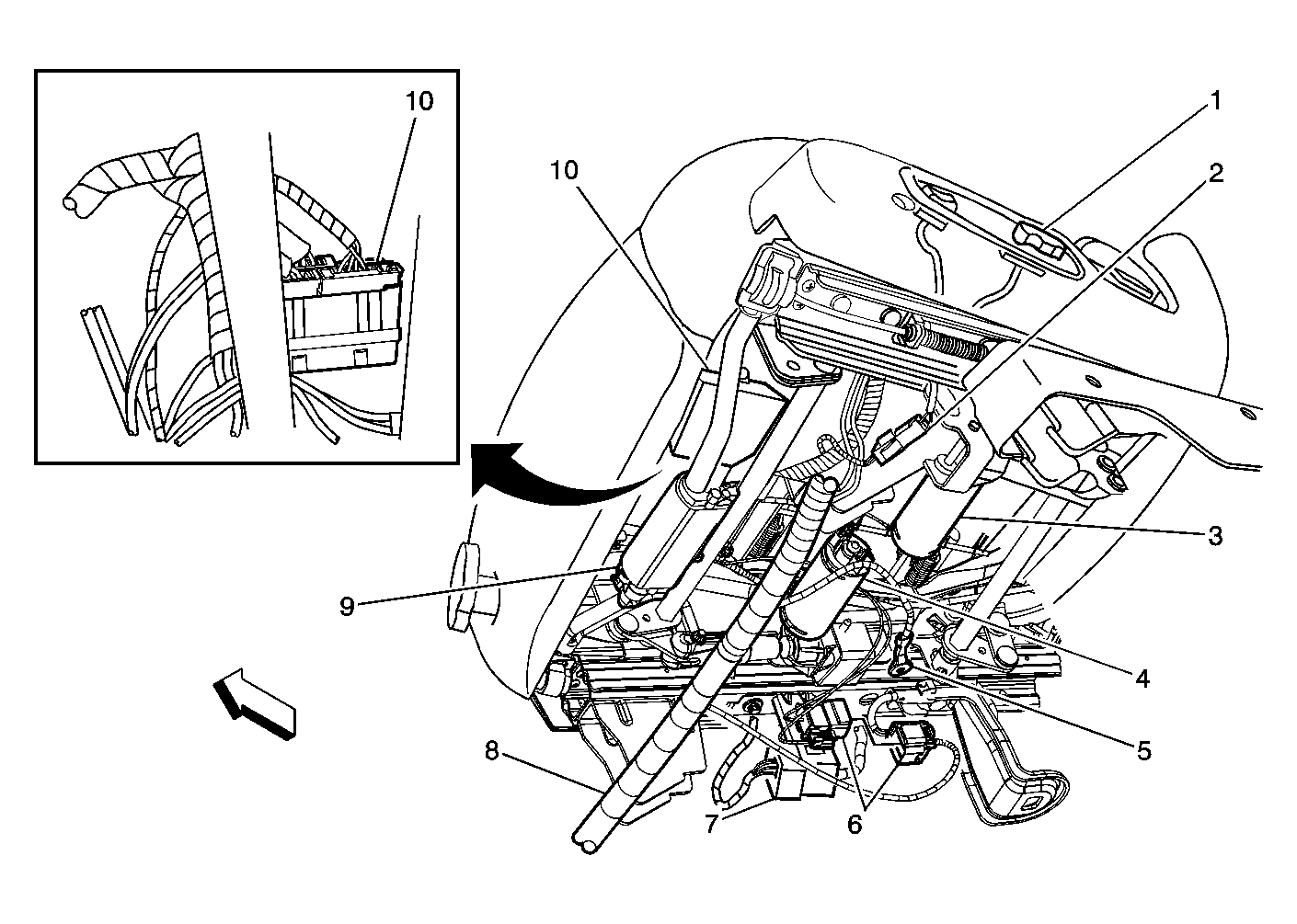

Fig 1: View of Under the LF Seat Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Switch - Driver
2	Heated Seat Switch - Driver, Front Passenger Similar
3	Seat Front Vertical Motor - Driver
4	Seat Rear Vertical Motor - Driver
5	G301
6	C310
7	C305 - Driver Seat, C306 - Front Passenger Seat
8	Body Harness
9	Seat Horizontal Motor - Driver
10	Heated Seat Control Module - Driver, Front Passenger Similar
