Theft Deterrent System Component Views

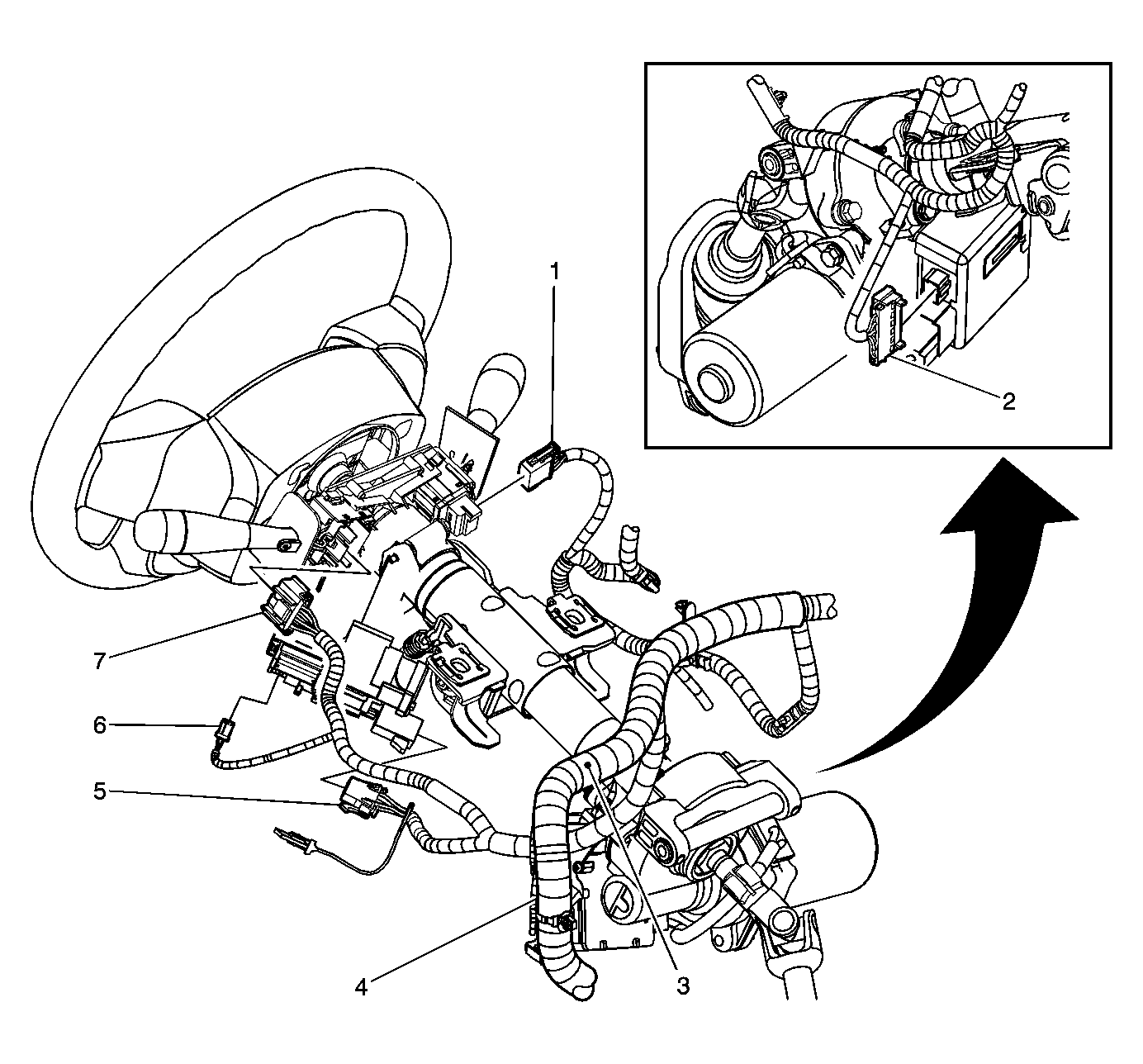

Fig 1: View of Left Side of the I/P, Steering Column Connections Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Power Steering Control Module (PSCM) C2
3	S200
4	I/P Harness
5	Ignition Switch
6	Passlock Sensor
7	Windshield Wiper/Washer Switch
