Installation Procedure

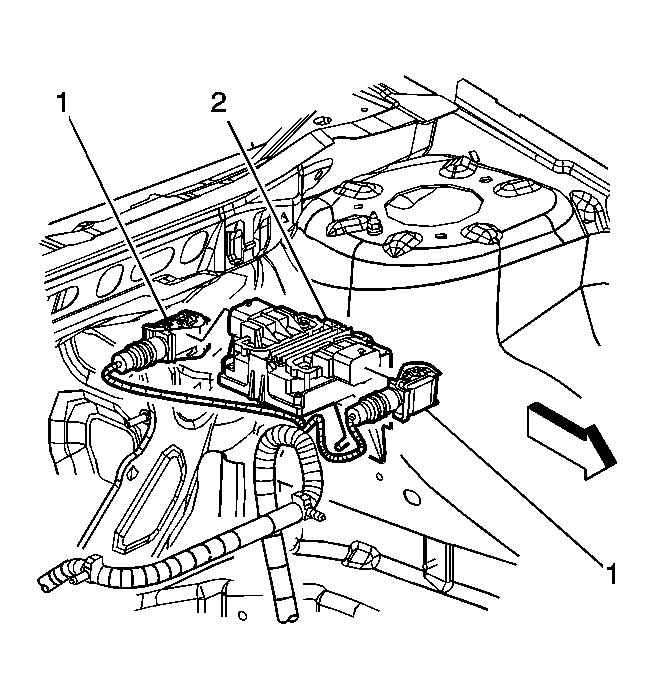

    Fig 1: Disconnecting/Connecting TCM Electrical Connectors
    GM1370528Courtesy of GENERAL MOTORS CORP.
  1. Connect the TCM electrical connector (1) to the TCM (2).
    2. Fig 2: View Of Transaxle Control Module & Bracket
    GM955399Courtesy of GENERAL MOTORS CORP.
  2. Install the TCM to the TCM bracket.
  3. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
    4. IMPORTANT: DTC P0602 is set with all new service transaxle control modules. When the transaxle control module is reprogrammed with the correct software and calibrations, DTC P0602 will be erased.
  4. Reprogram the TCM with the correct calibration. Refer to Transmission Control Module Programming and Setup in Programming and Setup.
  5. Perform the transmission adaptive learn procedure. Refer to Transmission Adaptive Learn Procedure .
