Steering Wheel and Column Component Views

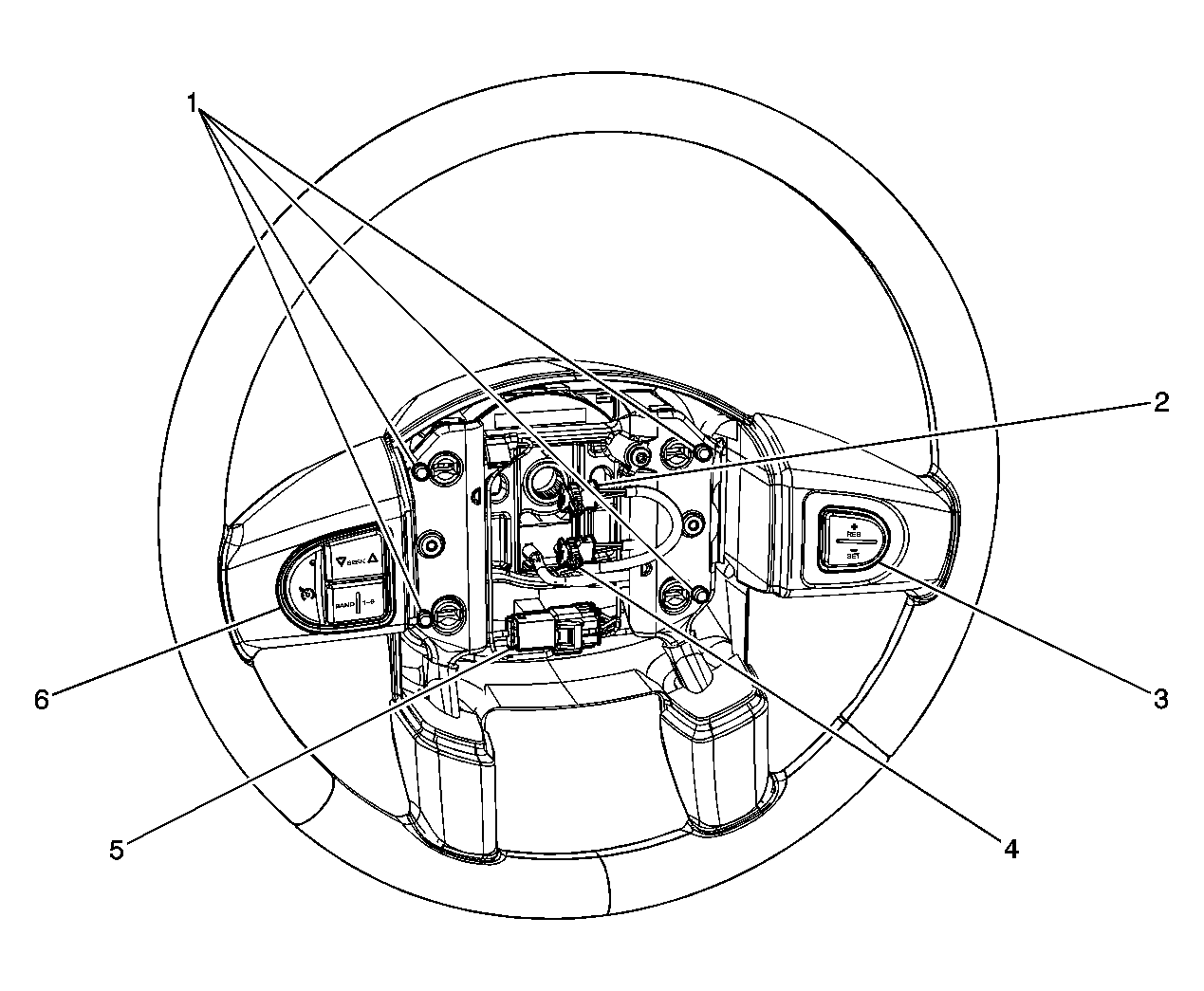

Fig 1: Steering Wheel Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch Contacts
2	Inflatable Restraint Steering Wheel Module C1
3	Steering Wheel Control Switch - Right (Chevrolet w/ UK3/K34 shown, Pontiac Similar)
4	Inflatable Restraint Steering Wheel Module C2
5	C277
6	Steering Wheel Control Switch - Left (Chevrolet w/ UK3/K34 shown, Pontiac Similar)
