Installation Procedure

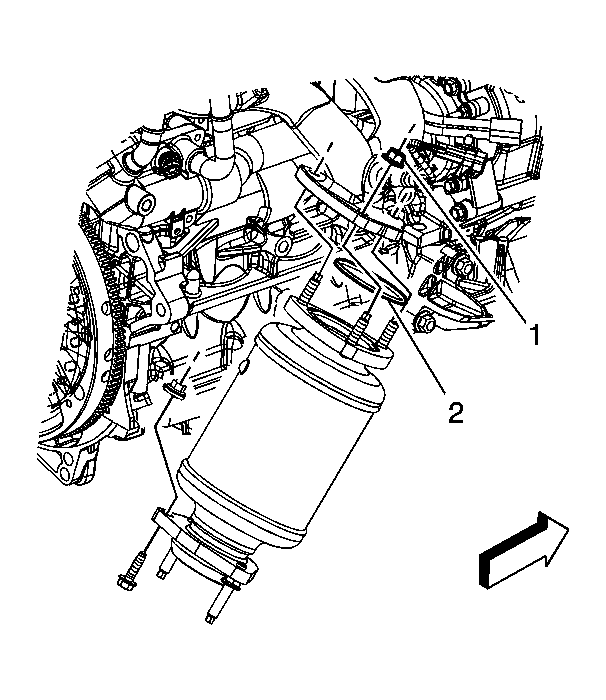

    Fig 1: Catalytic Converter Seal
    GM1592527Courtesy of GENERAL MOTORS CORP.
  1. Install the catalytic converter and a NEW seal (2).
  2. Install the exhaust manifold. Refer to Exhaust Manifold Replacement .
  3. Raise and support the vehicle.
    4. Fig 2: Catalytic Converter-To-Muffler Nut
    GM1593749Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the catalytic converter to muffler nuts.

    Tighten:  Tighten the nuts to 17 N.m (13 lb ft).

    5. Fig 3: Catalytic Converter-To-Catalytic Converter Brace Bracket Bolt
    GM1592529Courtesy of GENERAL MOTORS CORP.
  5. Install the catalytic converter to catalytic converter brace bracket bolt.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

  6. Lower the vehicle.
