Lock Replacement - Front Door

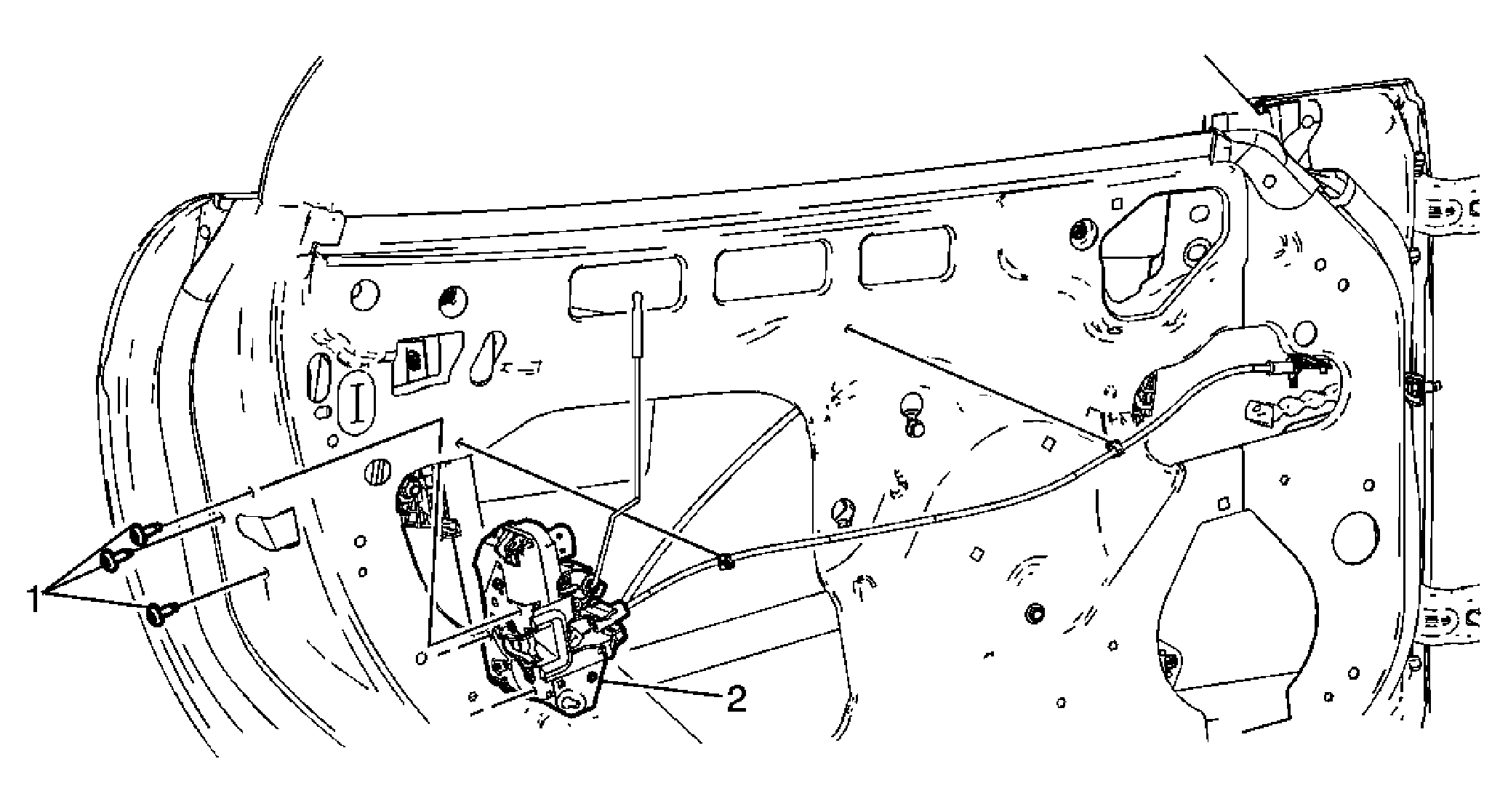

Fig 1: Front Door Lock

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Door . Remove the water deflector. Refer to Water Deflector Replacement - Door .
1	Screw, Front Side Door Lock (Qty: 3) Tip: Disconnect the lock cylinder and outside handle rod from the lock assembly. Tighten: 10 N.m (89 lb in)
2	Lock Assembly, Front Side Door Tip: Release the door lock cable retainers from the door. Disconnect the door lock electrical connector.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Screw, Front Side Door Lock (Qty: 3)
Tip: Disconnect the lock cylinder and outside handle rod from the lock assembly.

Tighten: 10 N.m (89 lb in)

Lock Assembly, Front Side Door
Tip:
