Body Control System Schematics

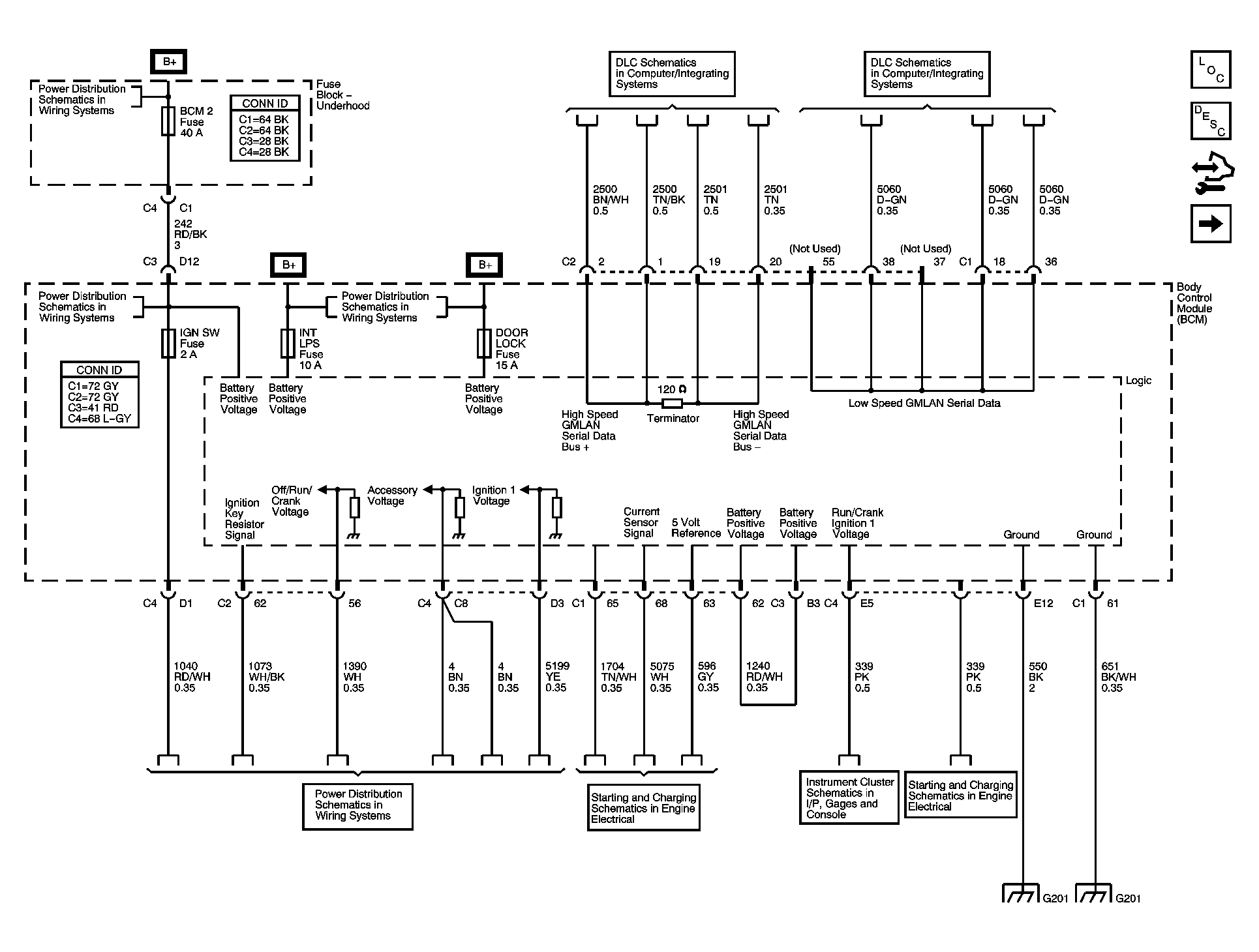

Fig 1: Power and Ground, Data Link, and Engine Reference
GM1583412Courtesy of GENERAL MOTORS CORP.

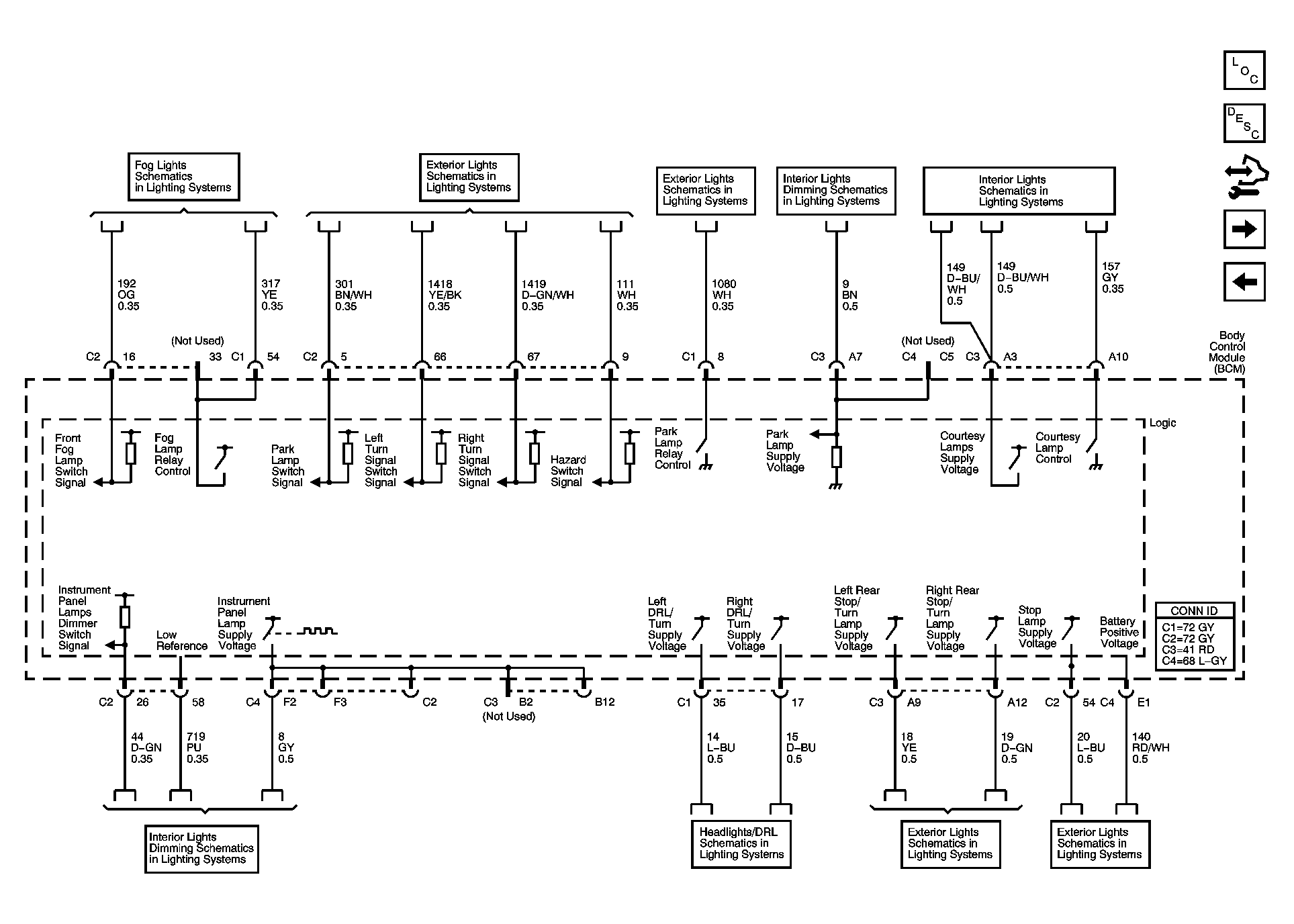

Fig 2: Lighting System Reference
GM1583413Courtesy of GENERAL MOTORS CORP.

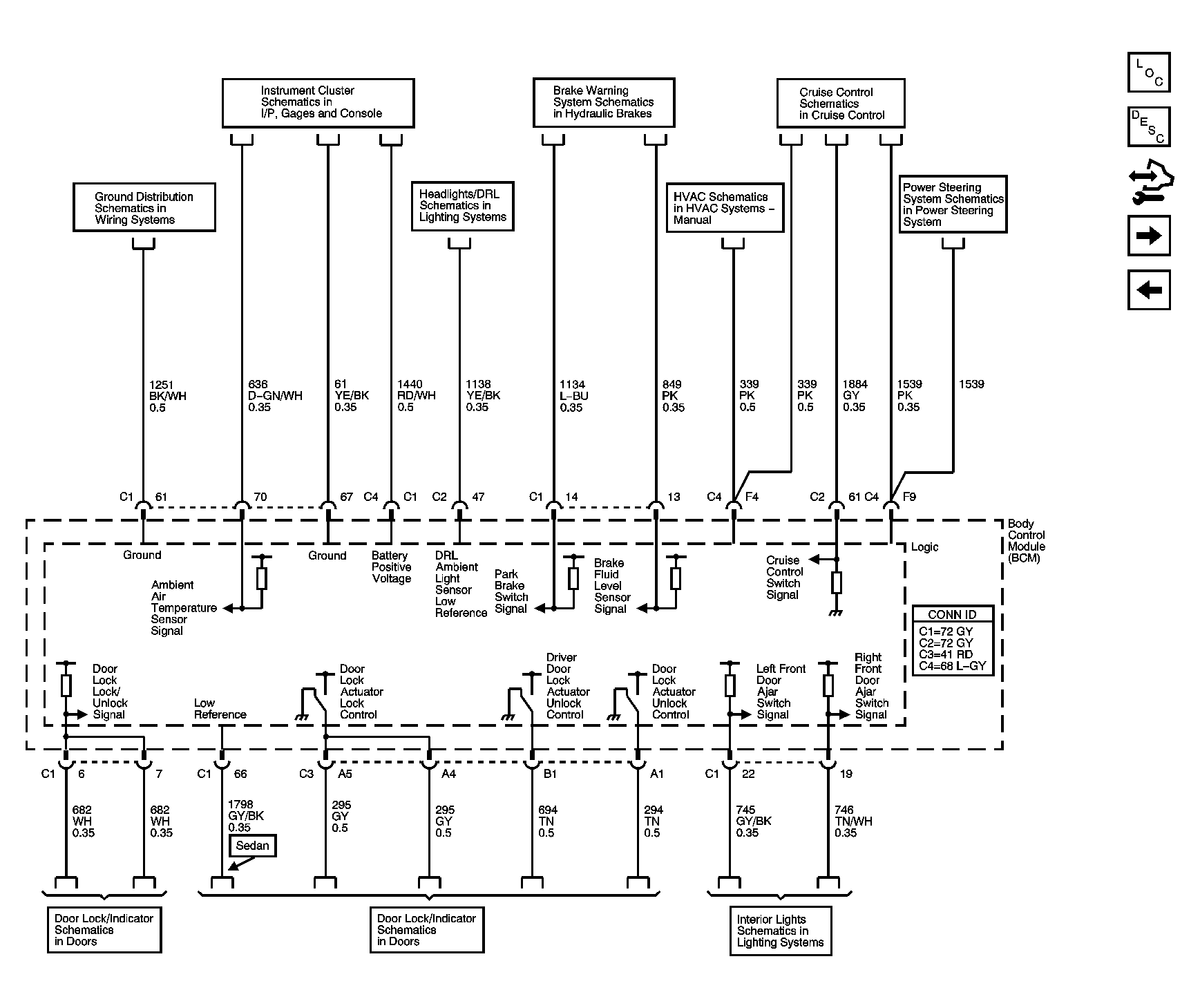

Fig 3: ABS, Brake Warning, Cruise Control, Door Lock, and Engine Cooling
GM1583414Courtesy of GENERAL MOTORS CORP.

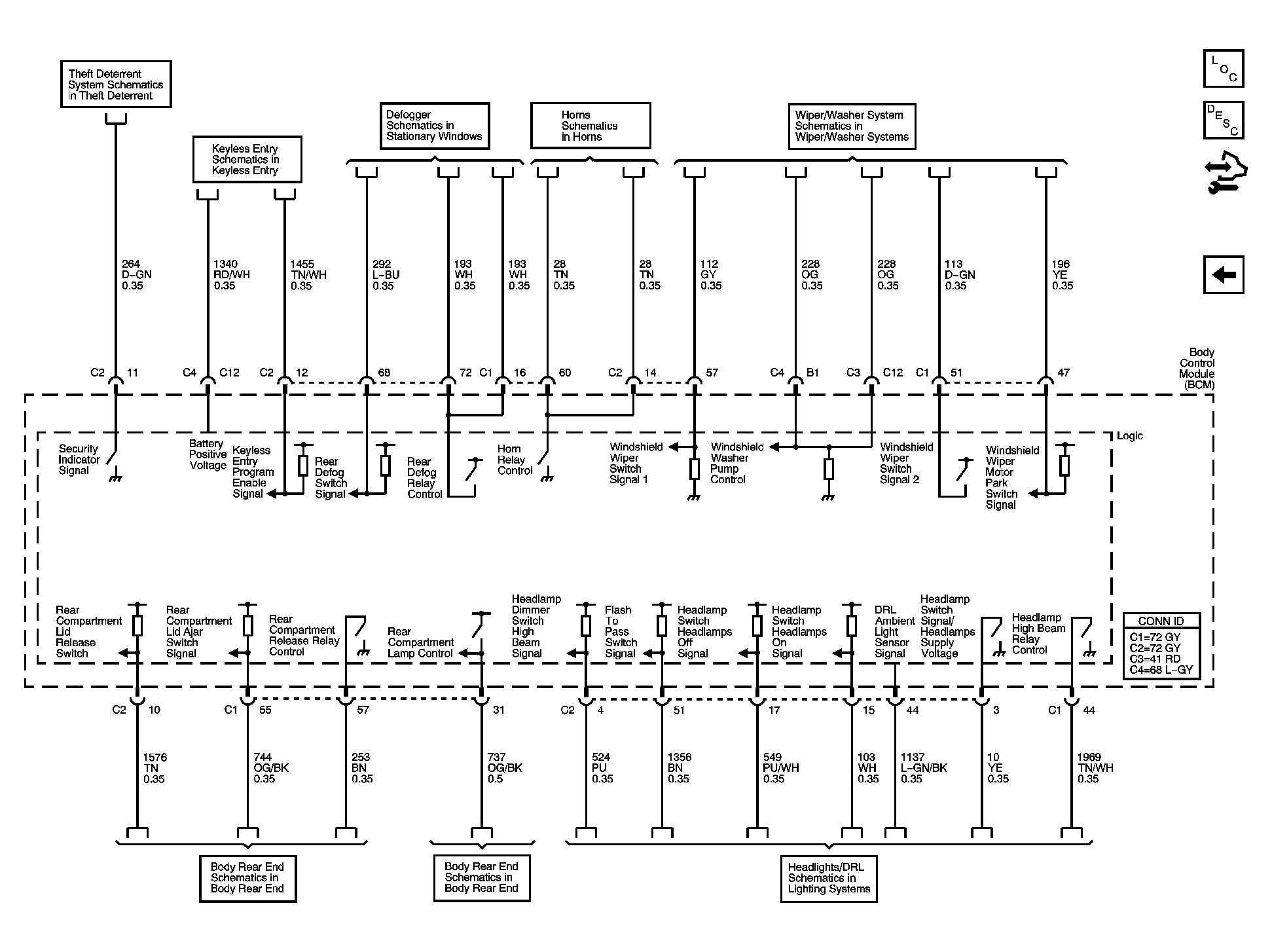

Fig 4: Body Rear End, Defogger, Headlamp, Horns, and Wiper/Washer Reference
GM1583415Courtesy of GENERAL MOTORS CORP.
