Inflatable Restraint Side Impact Sensor Replacement (Impala)

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

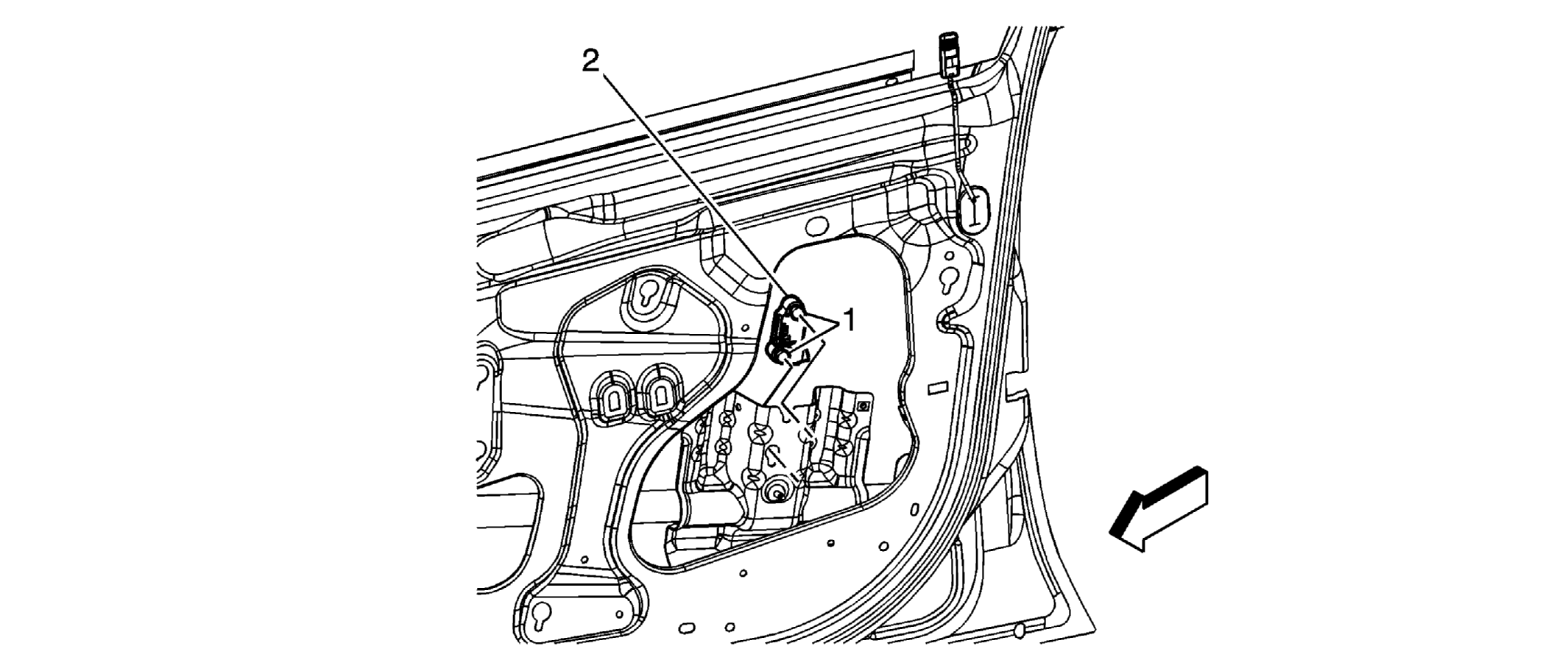

Fig 1: Replacing Inflatable Restraint Side Impact Sensor
GM1614474Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Side Impact Sensor Replacement (Impala)

Callout Component Name
CAUTION: Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury, or unnecessary SIR system repairs.
CAUTION: Refer to SIR Caution .
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the front door panel. Refer to Front Side Door Trim Panel Replacement (Impala) .
1 Bolt/Screw, Inflatable Restraint Side Impact Sensor Assembly (Qty: 2)
Tip:  Loosen the fasteners and slide the sensor out of the keyhole slots.

Tighten:  10 N.m (89 lb in)
2 Sensor Assembly, Inflatable Restraint Side Impact
