Sunshade Anchor Replacement

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

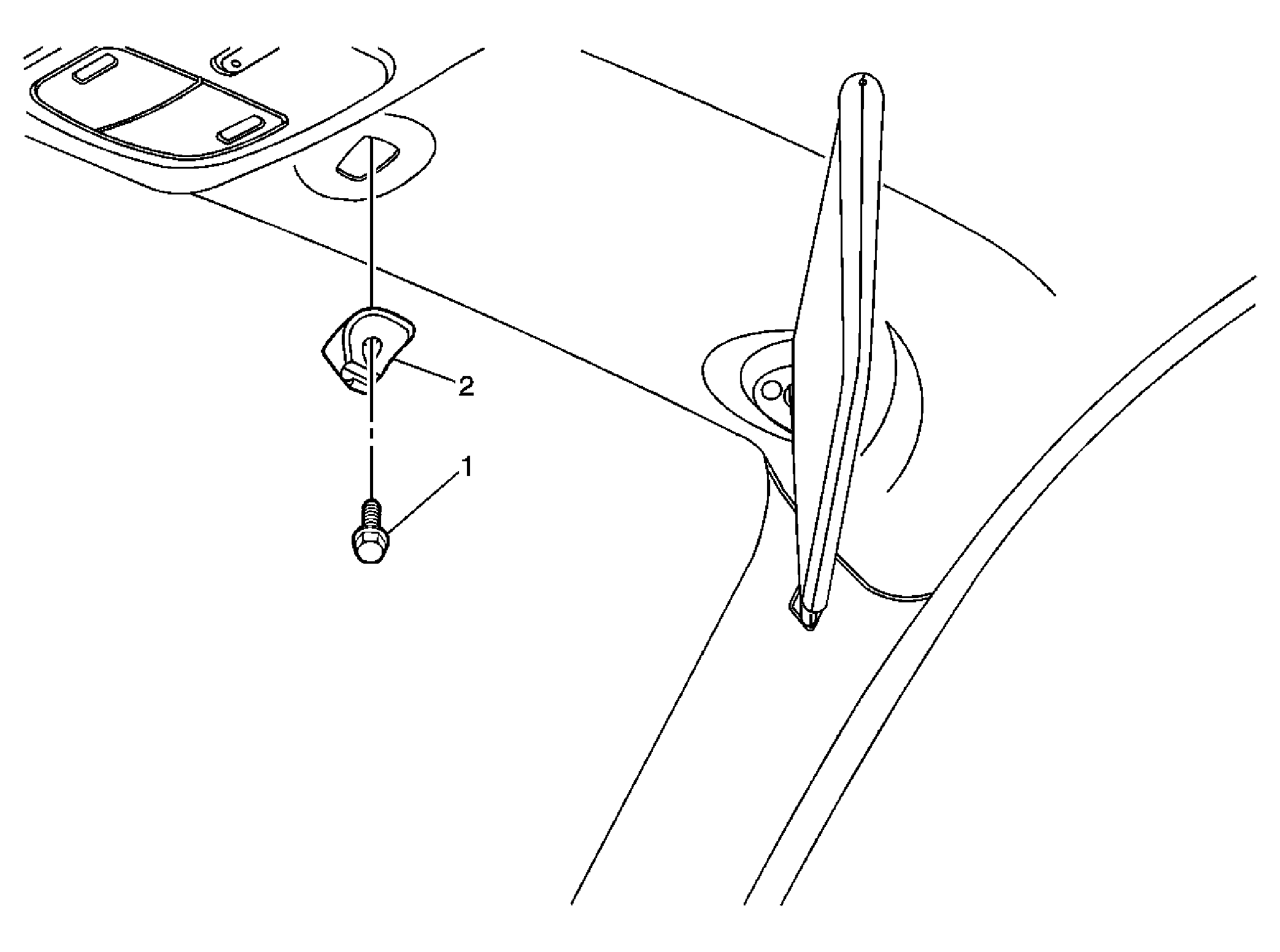

Fig 1: Sunshade Anchor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screw, Sunshade Support Tip: Disengage the sunshade from the support. Tighten: 2 N.m (18 lb in)
2	Support, Sunshade
