Theft Deterrent System Component Views

Fig 1: Cellular Communication Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Microphone
2	Inside Rearview Mirror (UE1)
3	OnStar Button Assembly
4	Inside Rearview Mirror Lamps
5	Antenna
6	Cellular and Navigational Antenna
7	Remote Control Door Lock Receiver (RCDLR)
8	Vehicle Communication Interface Module (VCIM)

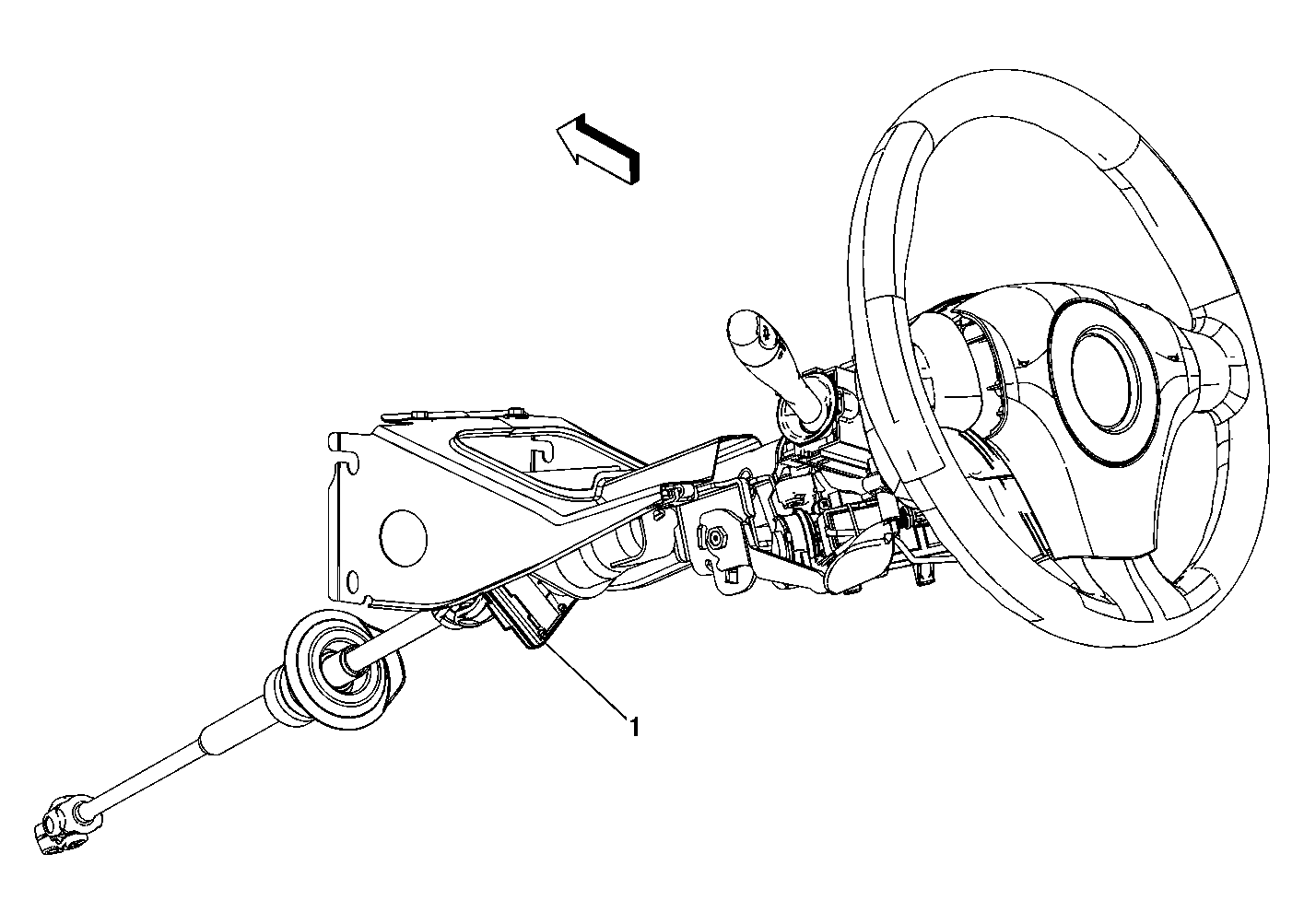

Fig 2: Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Module
