Door Control Module Schematics

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

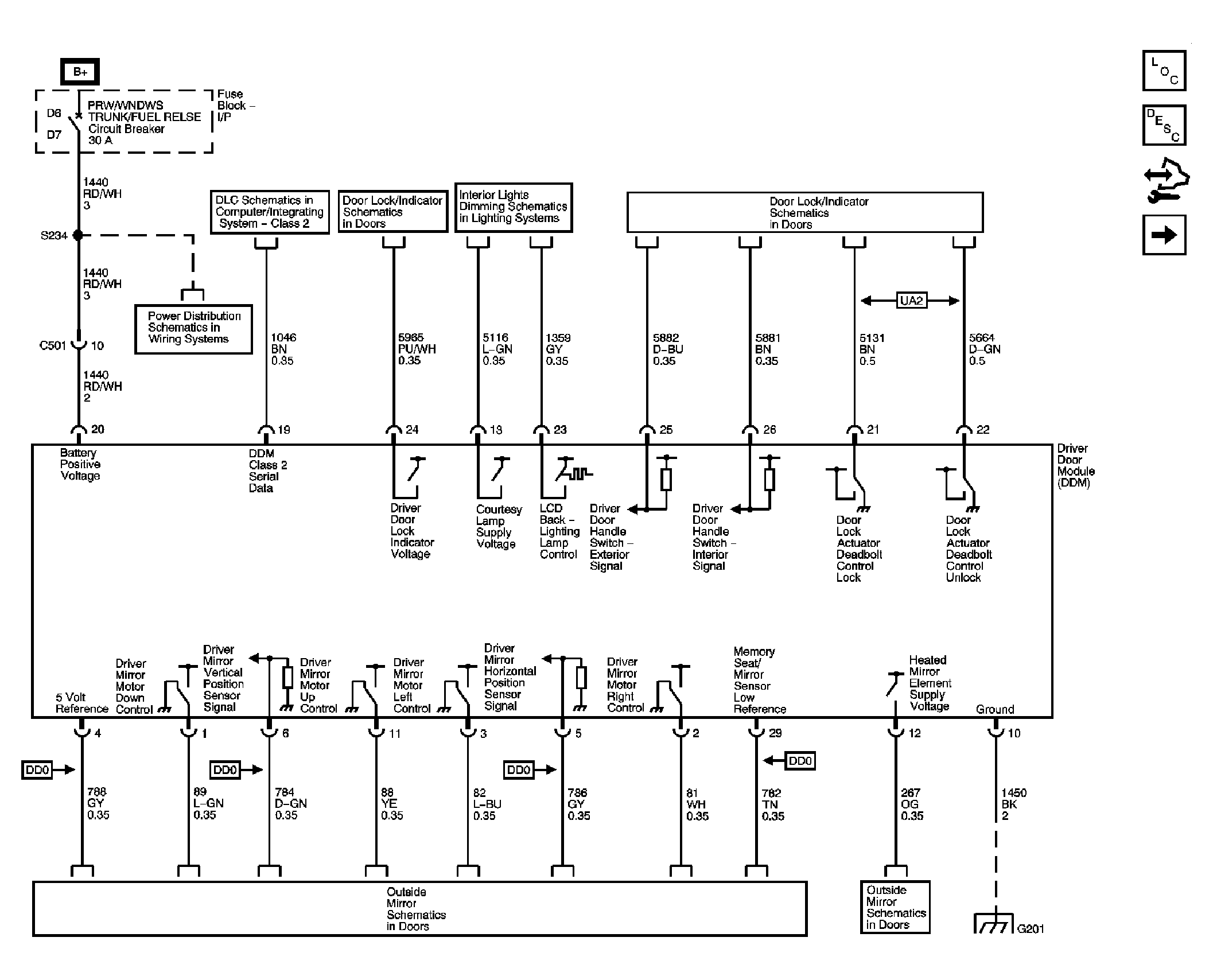

Fig 1: Driver - Wiring Diagram
GM1618752Courtesy of GENERAL MOTORS CORP.

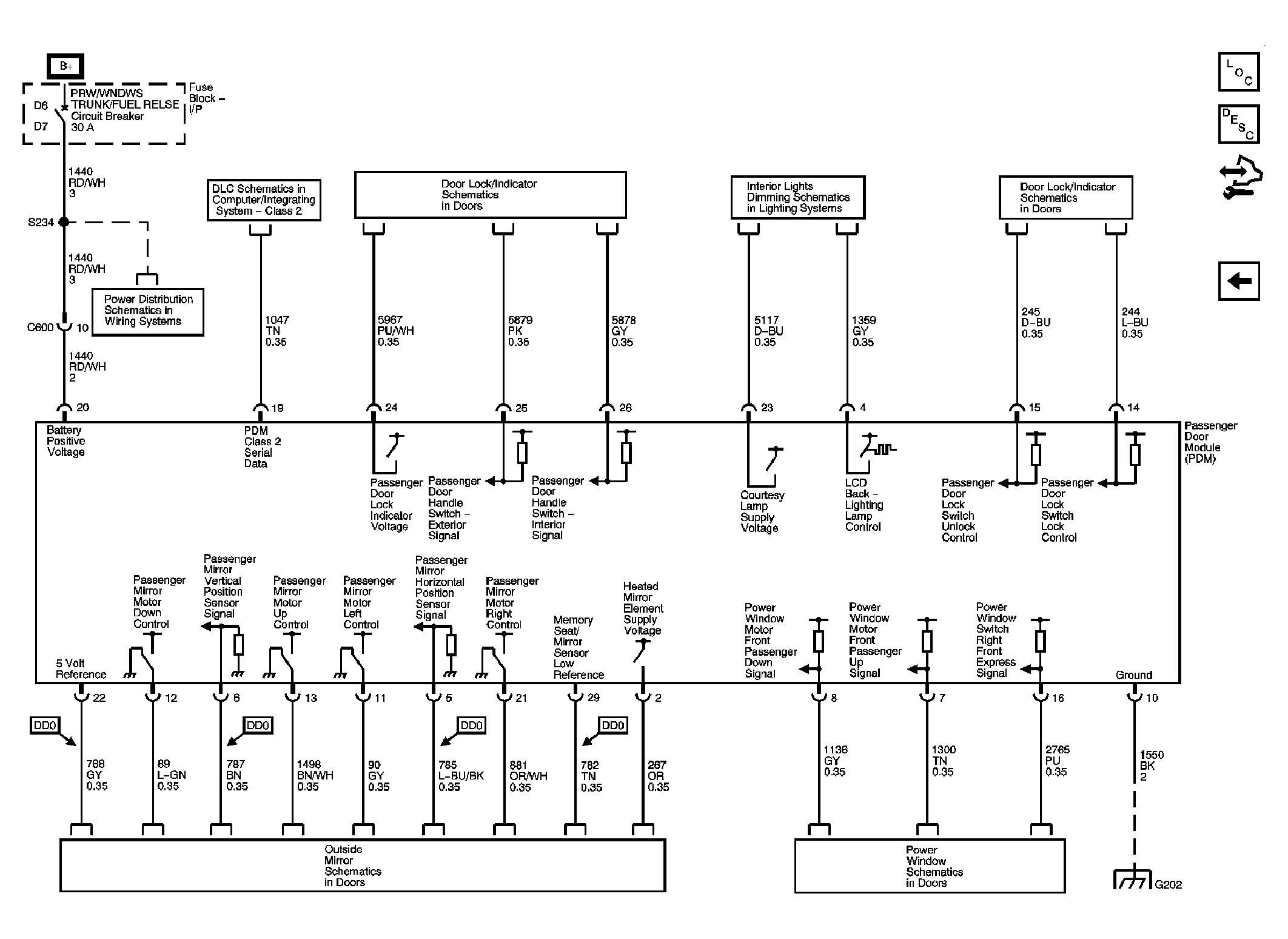

Fig 2: Passenger - Wiring Diagram
GM1408914Courtesy of GENERAL MOTORS CORP.
