Front Side Marker Lamp Replacement (Export)

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

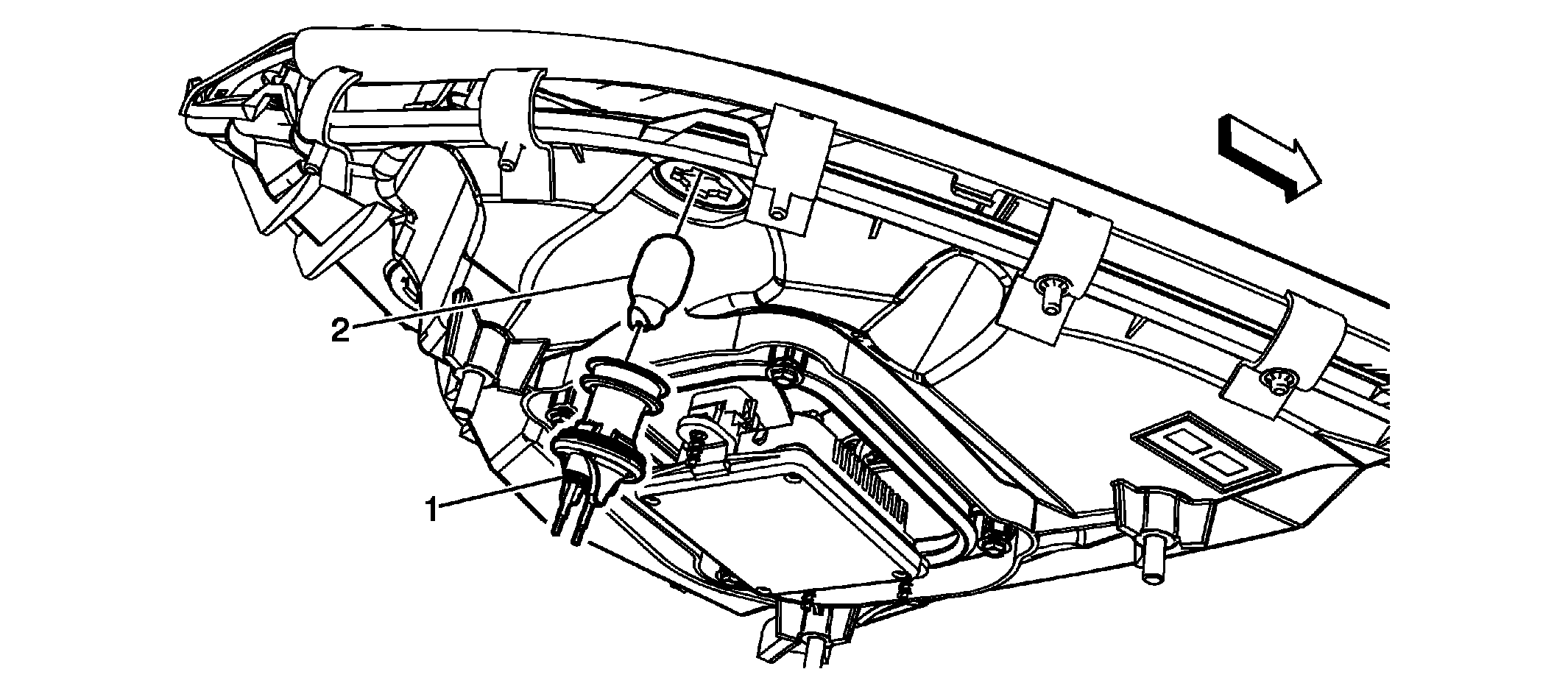

Fig 1: View Of Front Side Lamp Bulb & Assembly Socket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove either the RF or LF headlamp assembly. Refer to High Intensity Discharge Headlamp Replacement .
1	Front Side Marker Lamp Assembly Socket Tip: Rotate the socket a quarter turn in order to remove from the headlamp.
2	Front Side Marker Lamp Bulb
