Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

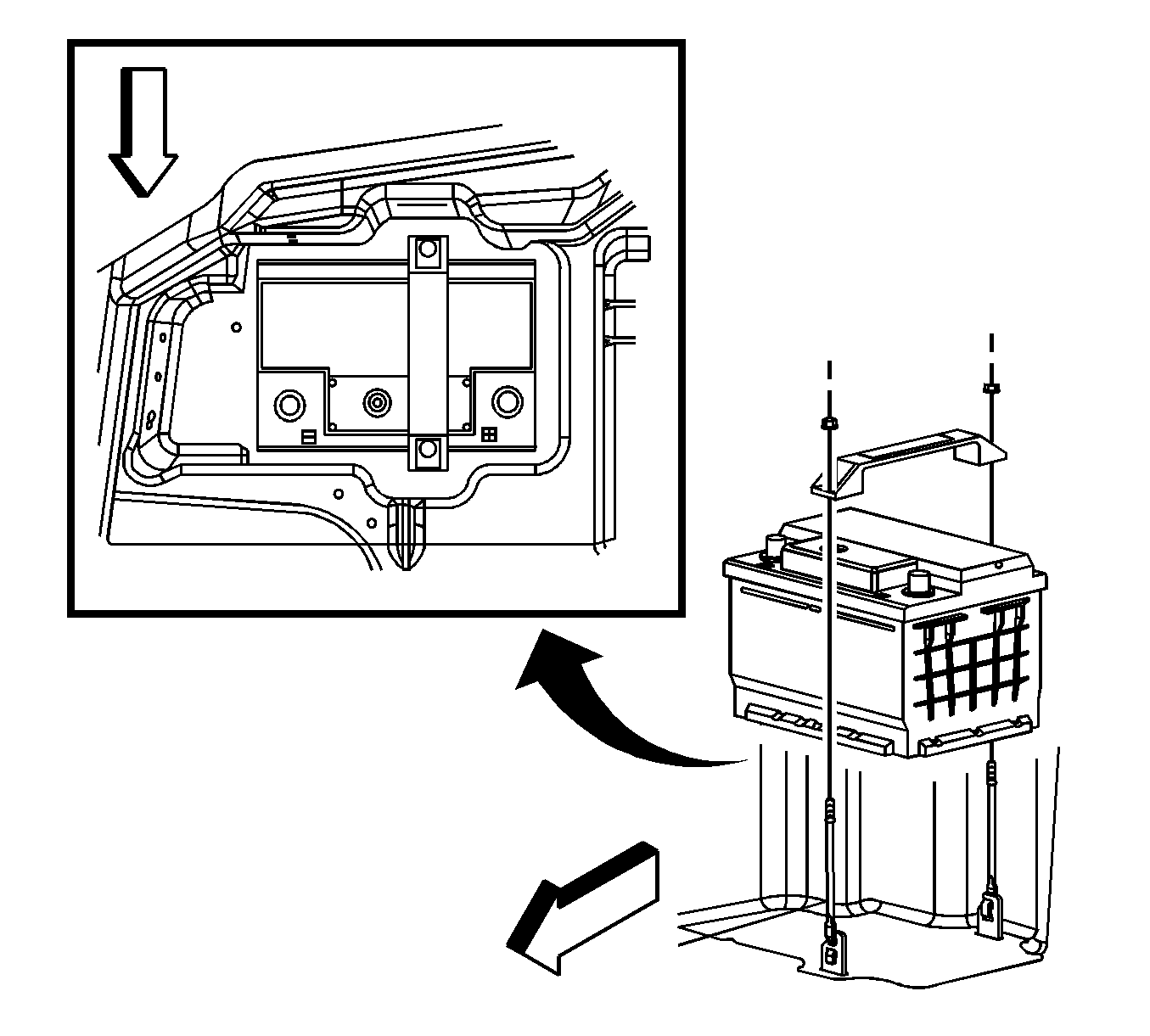

Fig 1: Installing The Battery
GM1672569Courtesy of GENERAL MOTORS CORP.
  1. Install the battery.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the battery hold down retainer and bolts.

    Tighten:  Tighten the battery hold down retainer bolt to 18 N.m (13 lb ft).

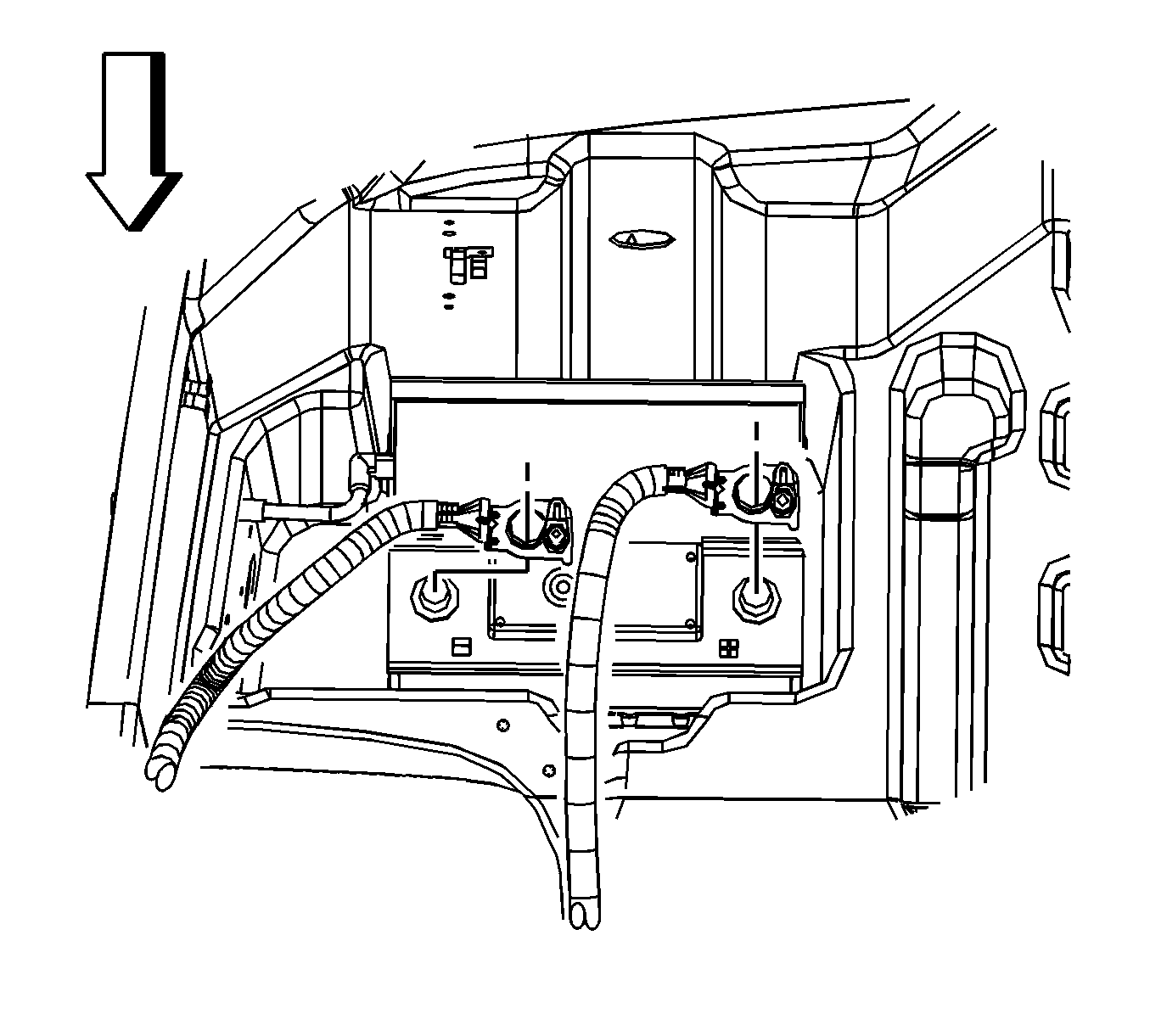

    3. Fig 2: Connecting The Positive Battery Cable
    GM1672575Courtesy of GENERAL MOTORS CORP.
  3. Connect the positive battery cable.

    Tighten:  Tighten the positive battery cable bolt to 15 N.m (11 lb ft).

  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (7.0L)  or Battery Negative Cable Disconnect/Connect Procedure (6.0L) .
  5. Reposition the carpet.
