Cooling System Component Views
Cooling System Component Views

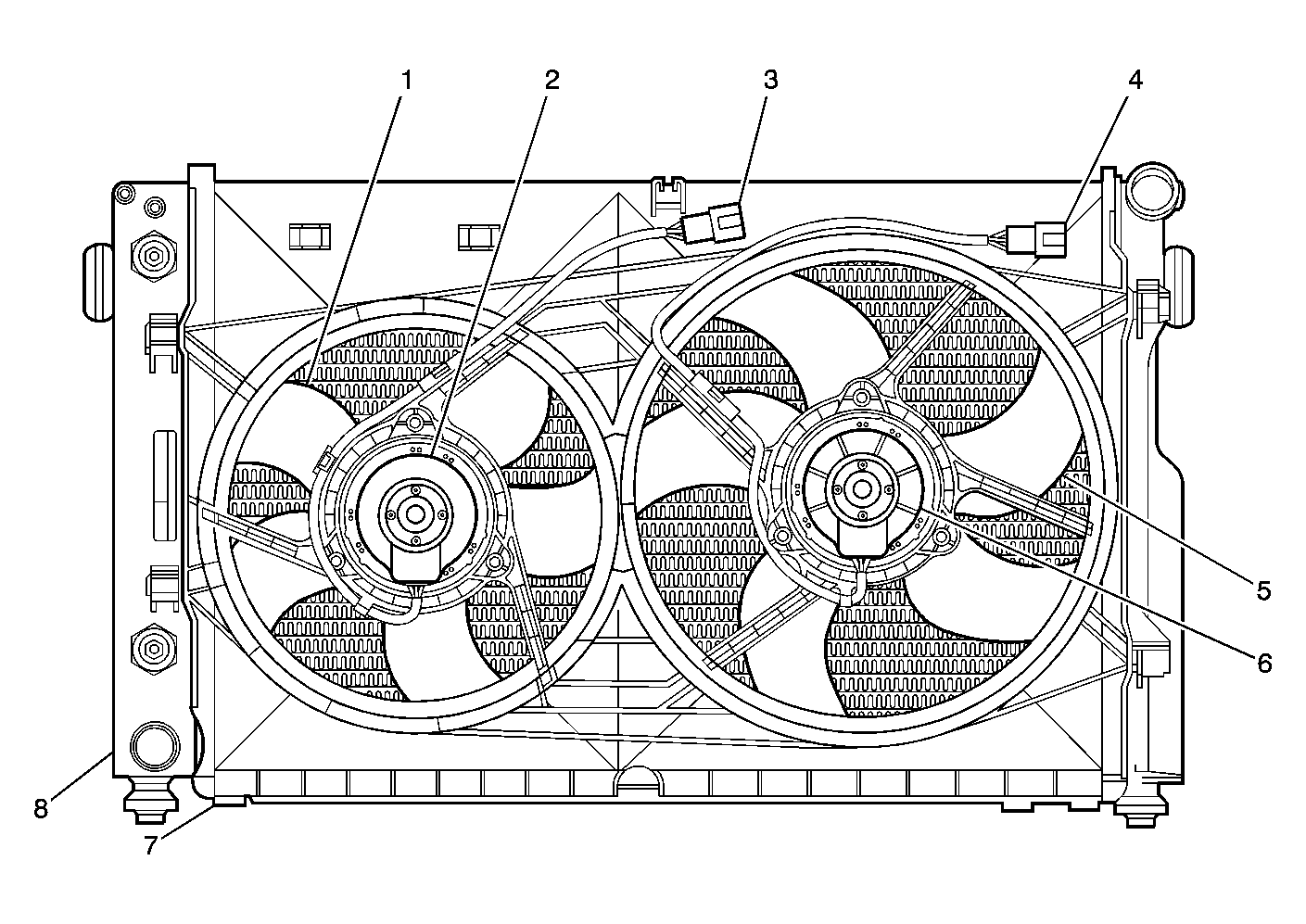

Fig 1: Cooling Fan Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Left Fan
2
Left Fan Motor
3
Left Fan Motor Electrical Connector
4
Left And Right Fan Motor Electrical Connector
5
Right Fan
6
Right Fan Motor
7
Fan Shroud
8
Radiator
Fig 2: Cooling Fan Relay Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Cooling Fan Relay No. 1
2
Cooling Fan Relay No. 2
