Horn Component Views
Horn Component Views

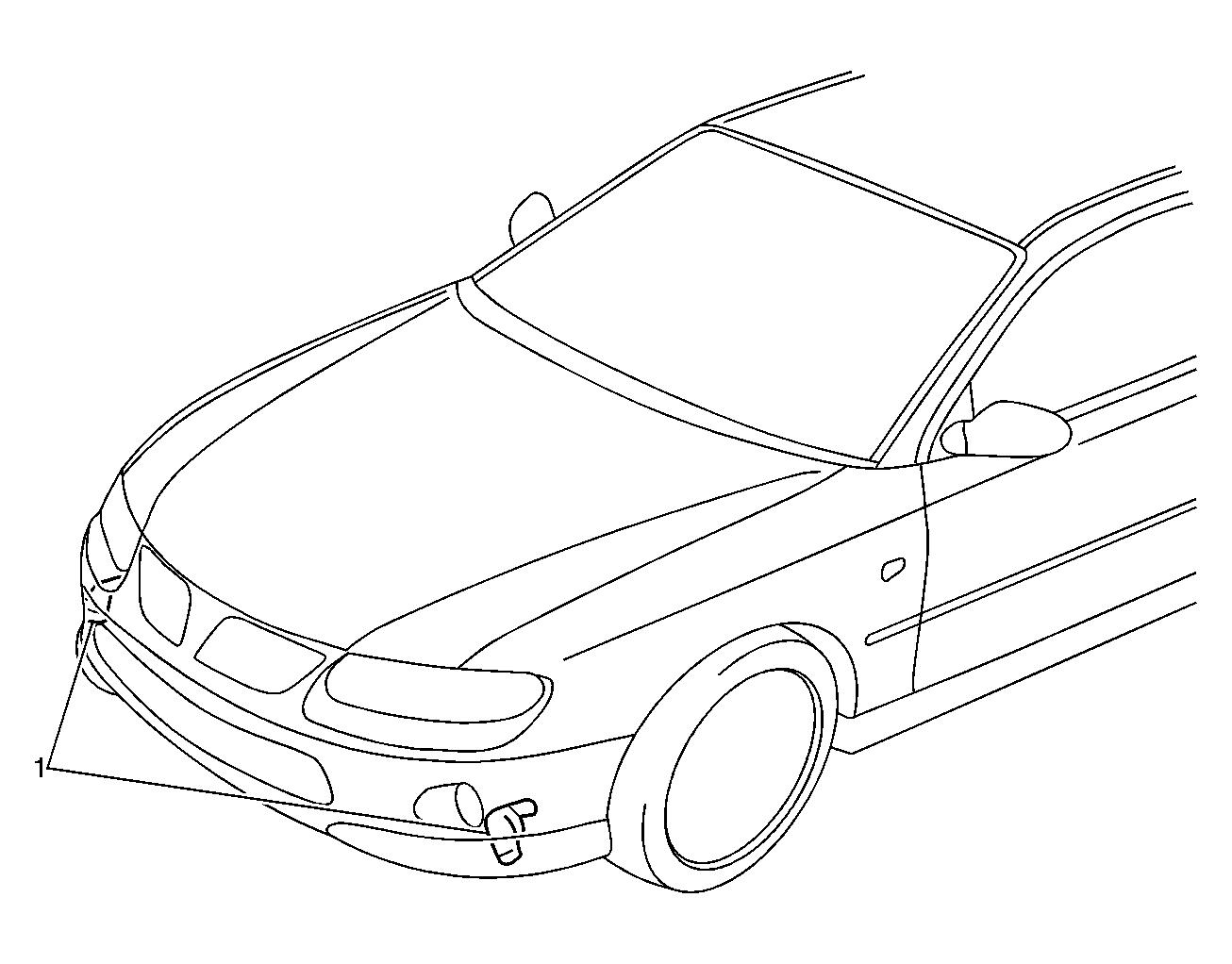

Fig 1: High and Low Horns
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
High and Low Horns

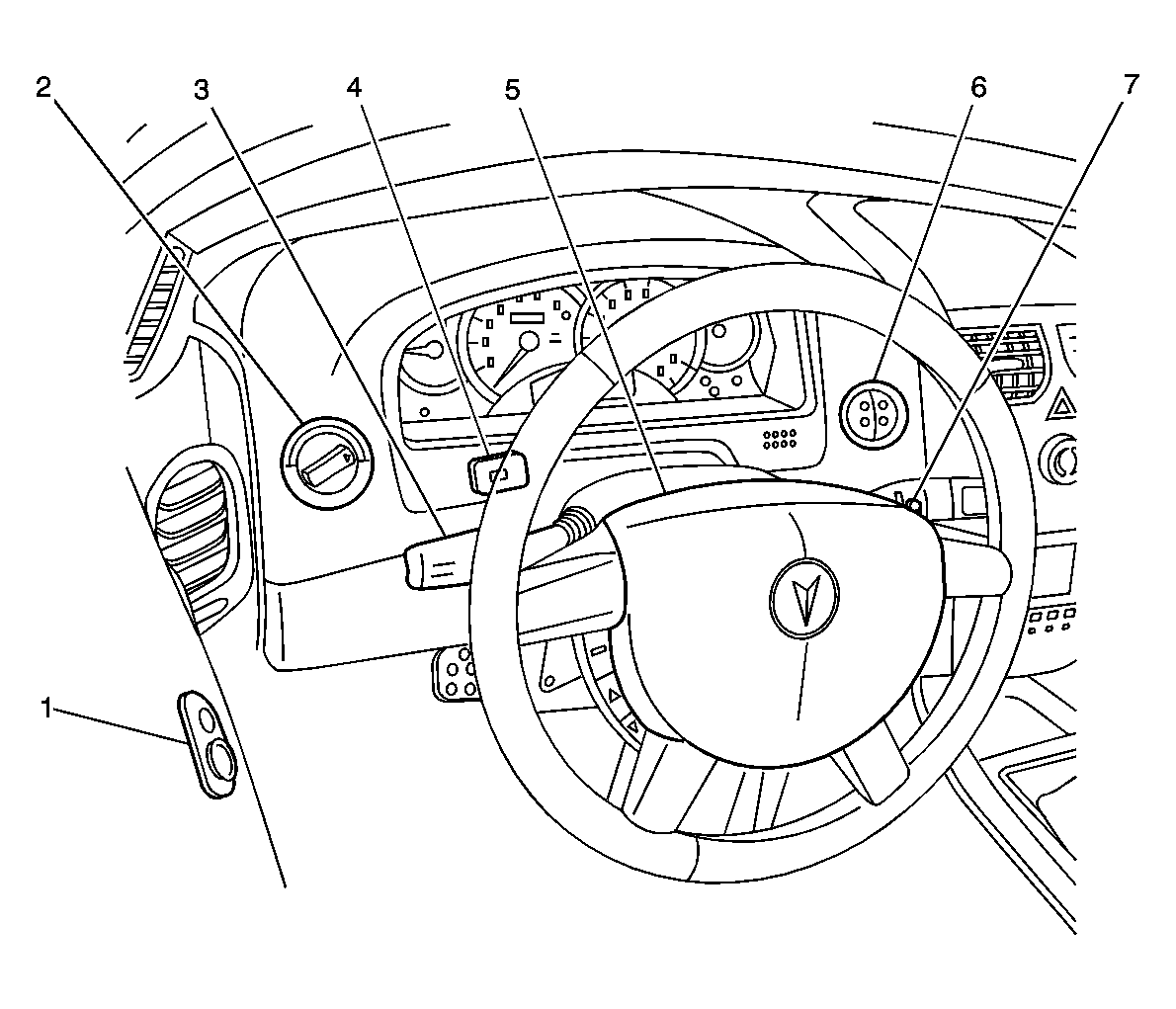

Fig 2: Instrument Panel Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Power Mirror Switch
2
Headlamp and Fog Lamp Switch
3
Turn Signal/Headlamp Dimmer and Cruise Control Switch
4
Trunk Release Switch
5
Horn Switch
6
Trip Computer Switch
7
Wiper/Washer Switch
