Ground Distribution Schematics

Fig 1: G100, G101, SP100, and G102 1 of 5

GM1519238

Courtesy of GENERAL MOTORS CORP.

Fig 2: SP100 and G102 2 of 5

GM1519239

Courtesy of GENERAL MOTORS CORP.

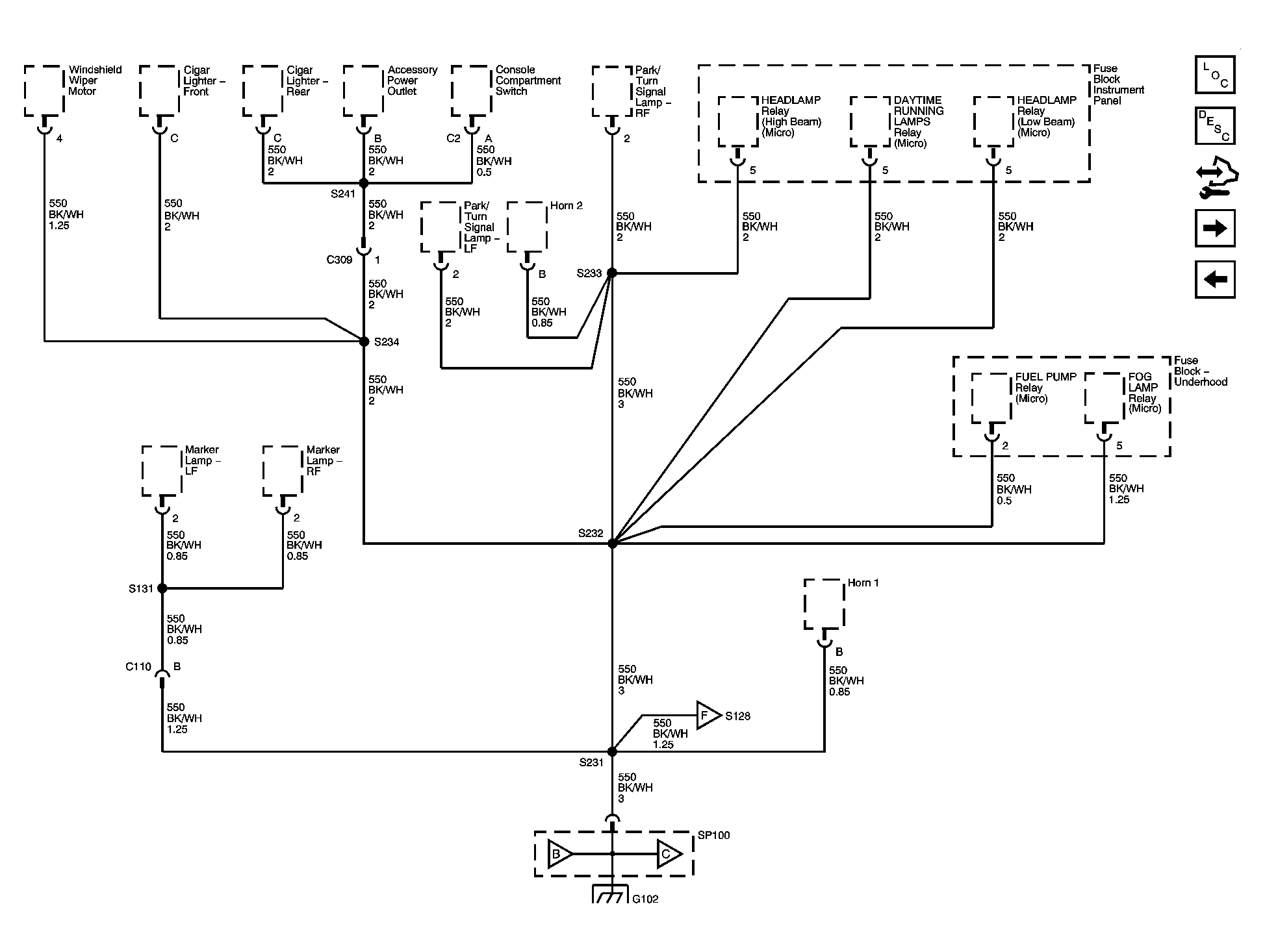

Fig 3: SP100 and G102 3 of 5

GM1519241

Courtesy of GENERAL MOTORS CORP.

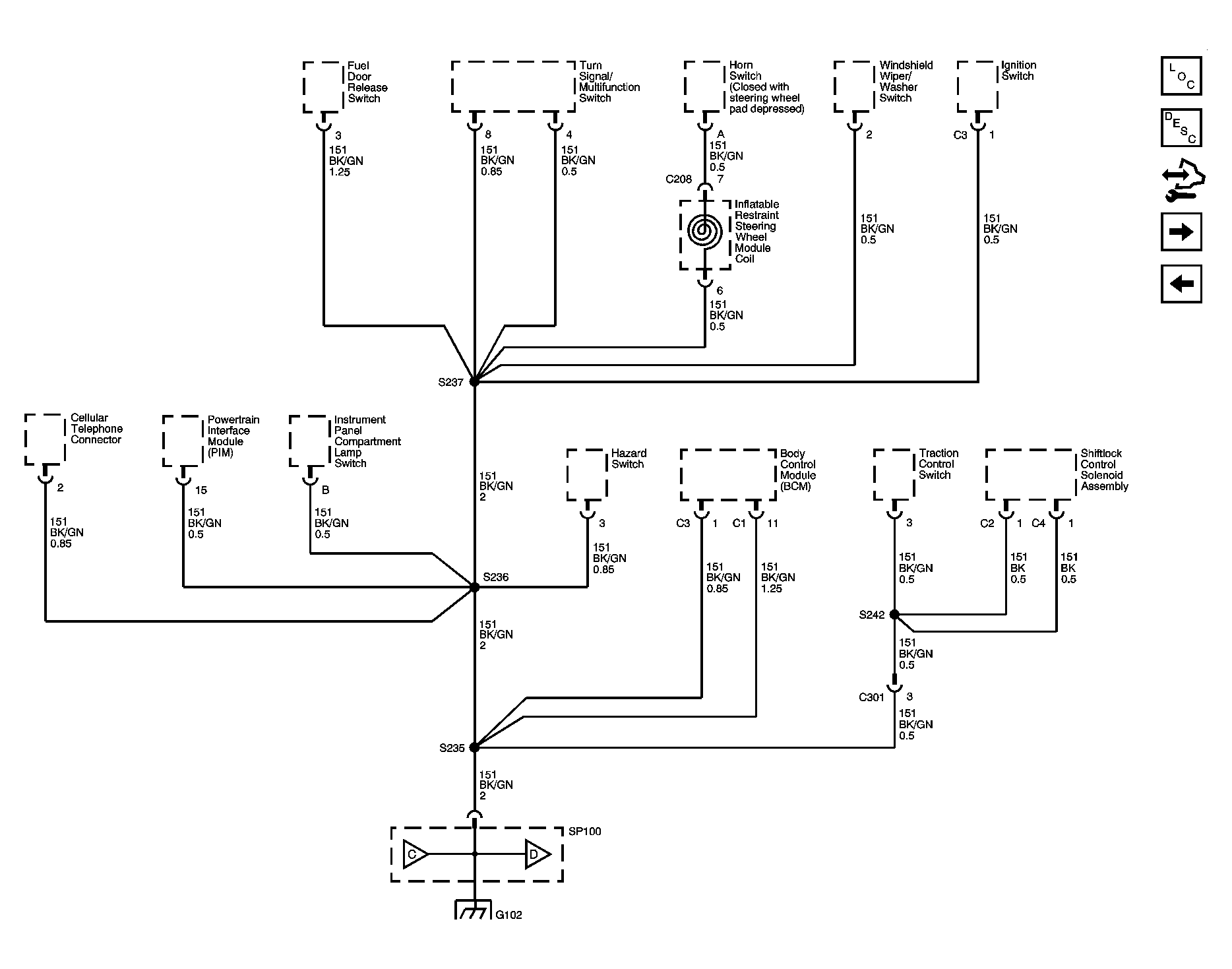

Fig 4: SP100 and G102 4 of 5

GM1519281

Courtesy of GENERAL MOTORS CORP.

Fig 5: SP100 and G102 - 5 of 5, G103 and G200

GM1519293

Courtesy of GENERAL MOTORS CORP.

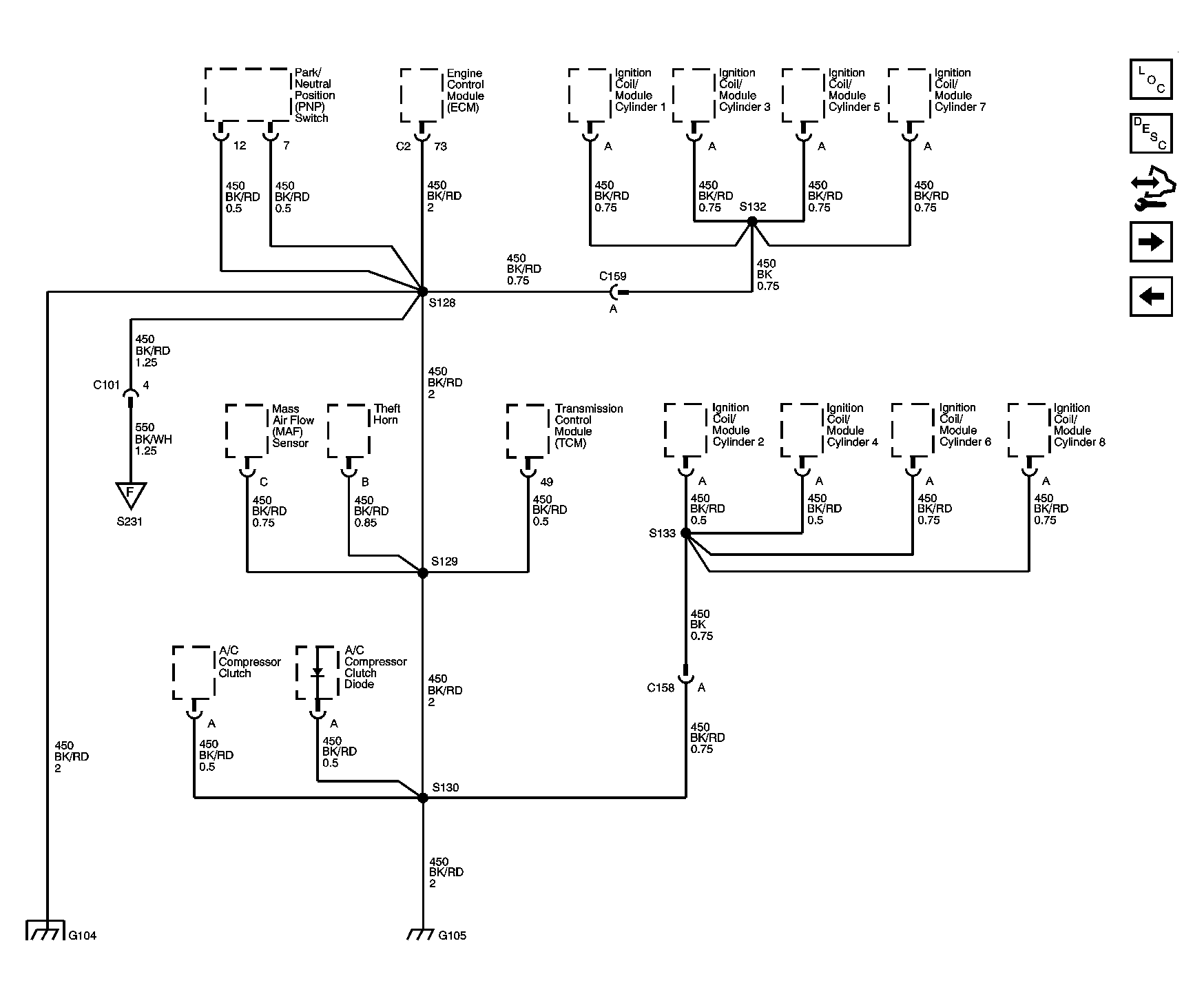

Fig 6: G104 and G105

GM1519295

Courtesy of GENERAL MOTORS CORP.

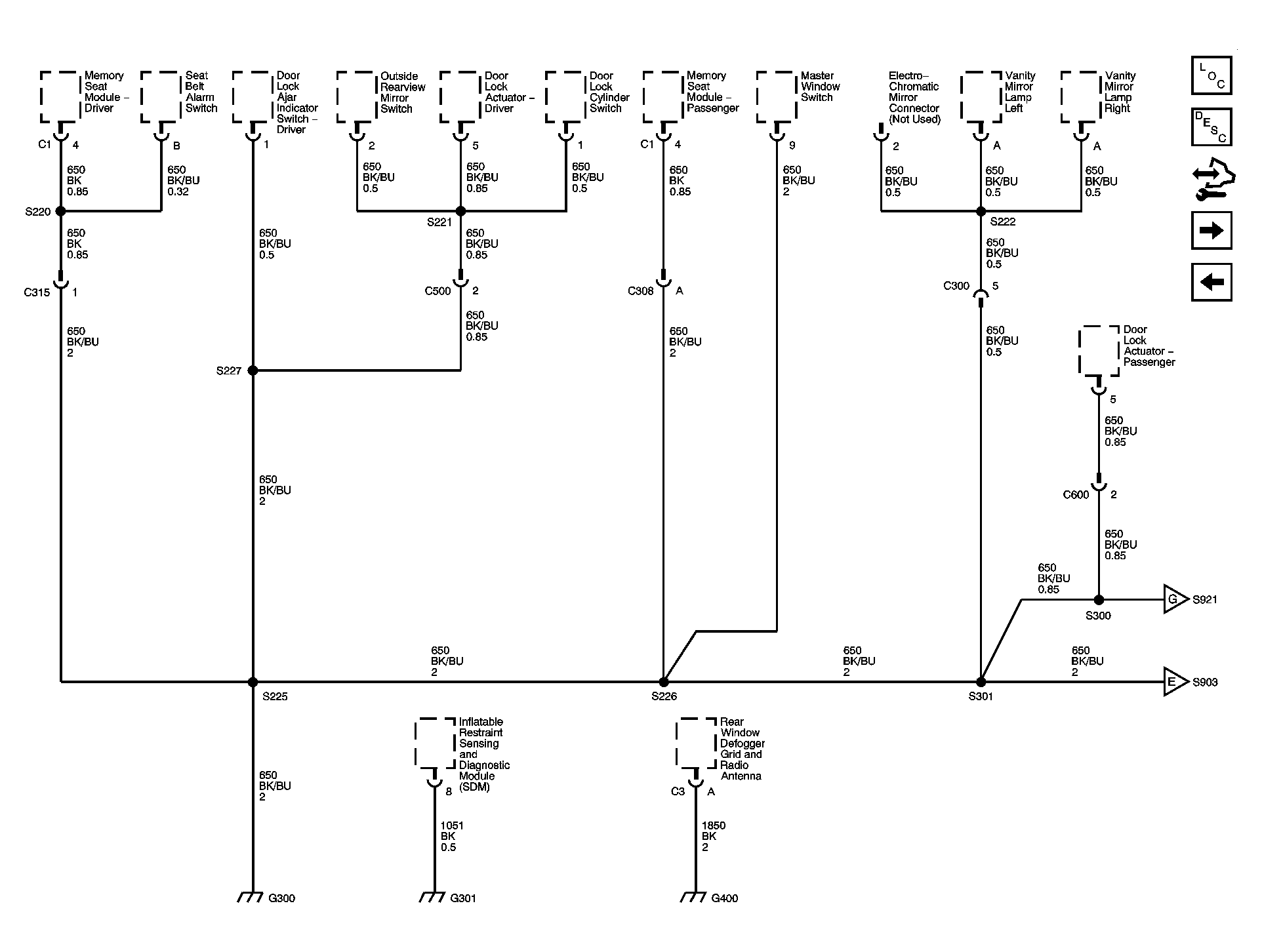

Fig 7: G300, G301, and G400

GM1519298

Courtesy of GENERAL MOTORS CORP.

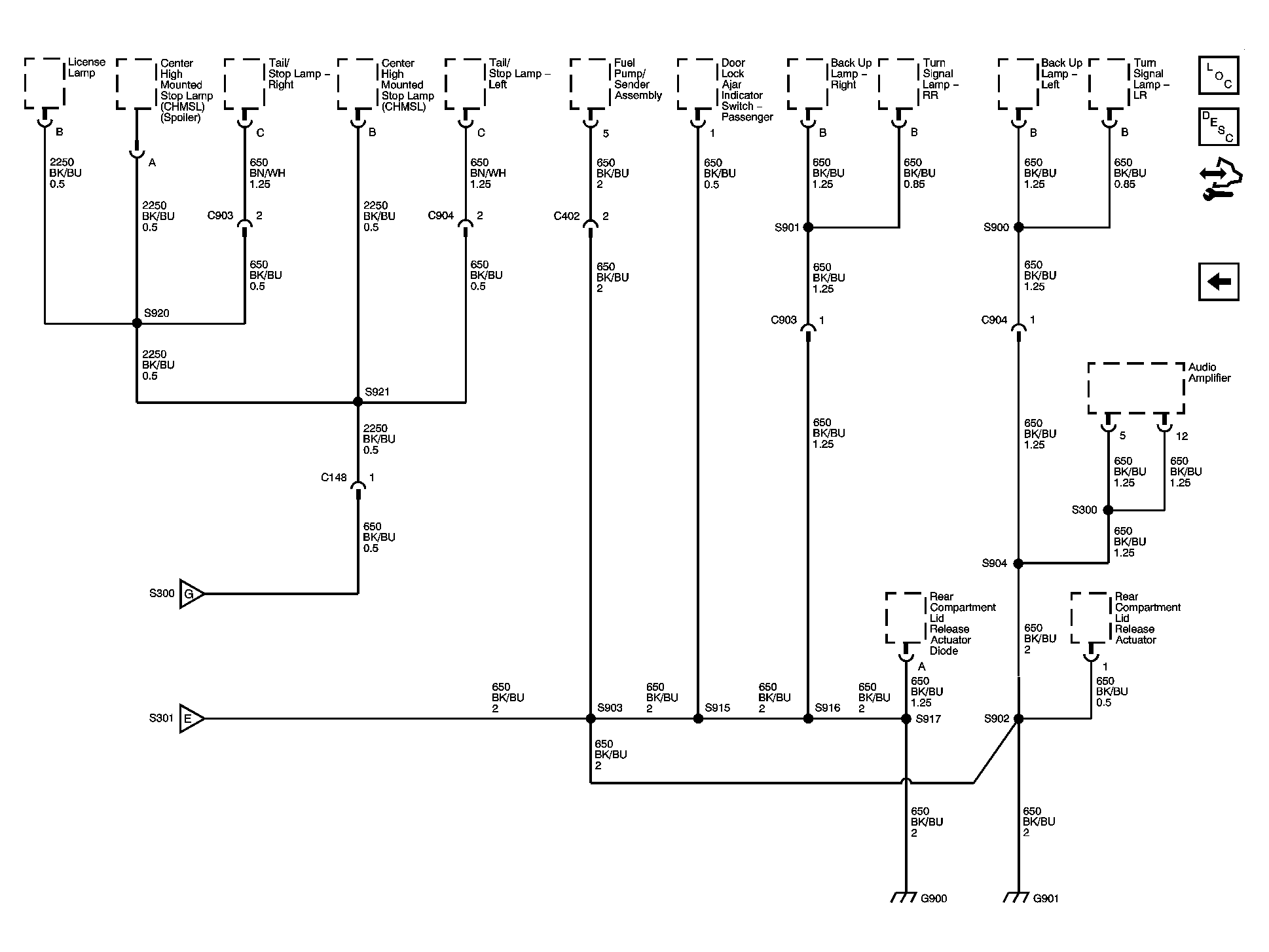

Fig 8: G900 and G901

GM1519301

Courtesy of GENERAL MOTORS CORP.
