Power Seat Component Views

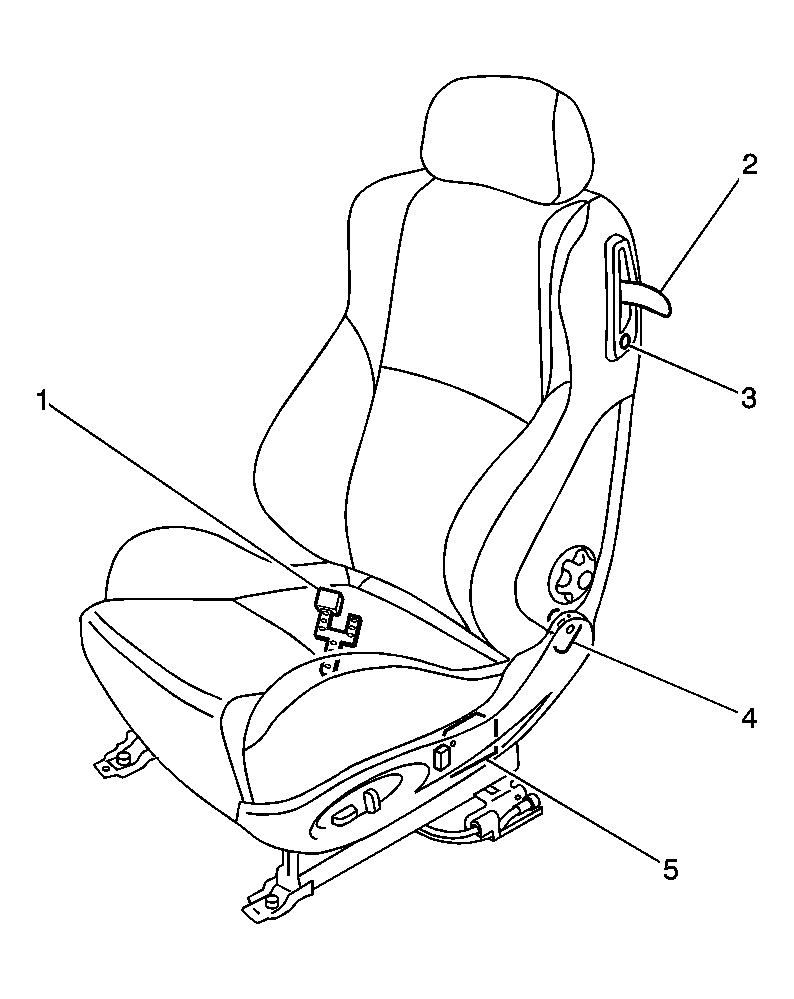

Fig 1: Drivers Seat Component View
GM1348224Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Presence Detection Switch
2 EZ-Entry Release Lever
3 Seat Return Button
4 EZ-Entry Switch
5 Drivers Seat Control Module

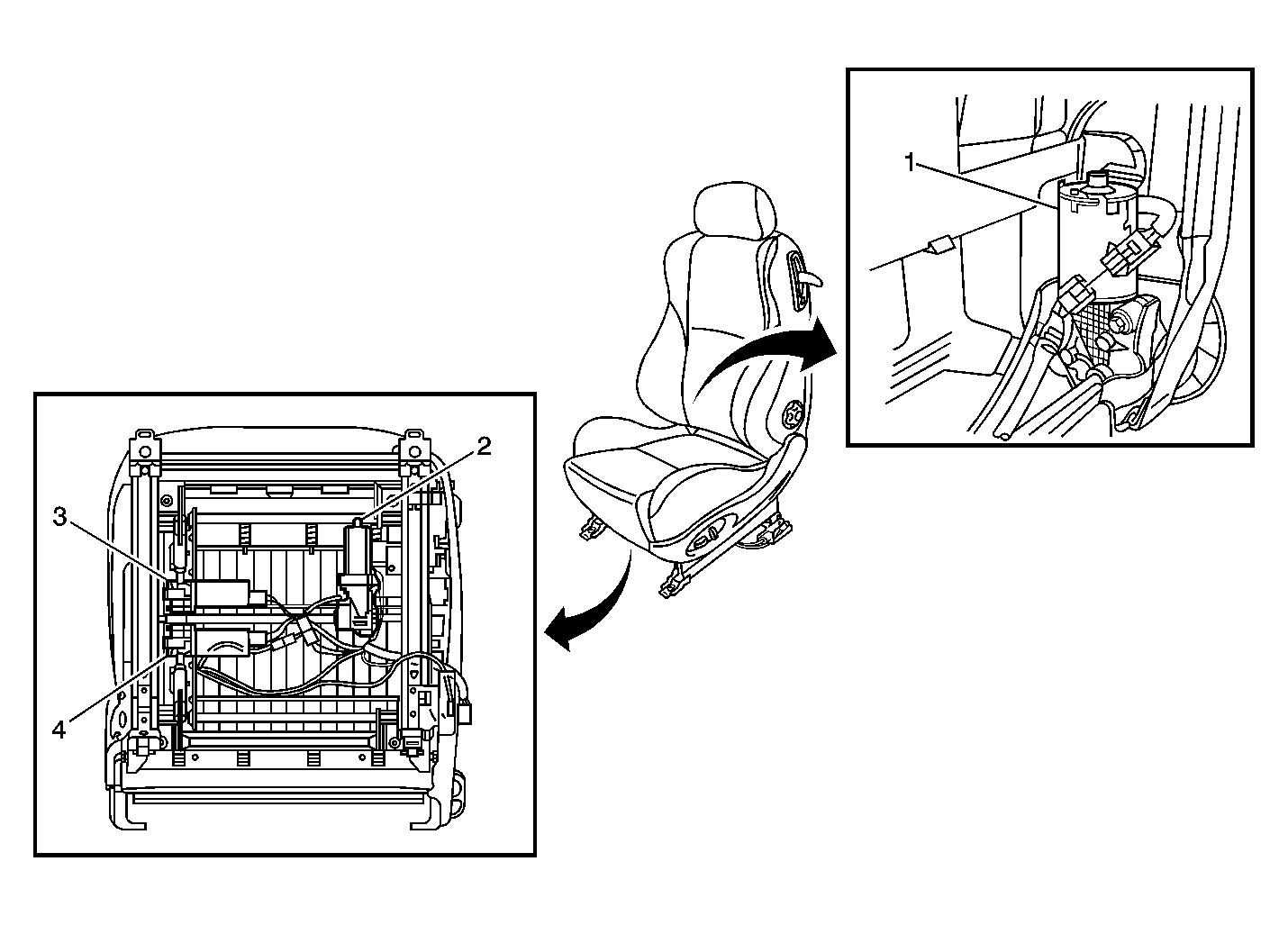

Fig 2: Power Seat Motors
GM1645871Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Recline Motor
2 For/Aft Movement Motor
3 Lift Motor
4 Lift Motor

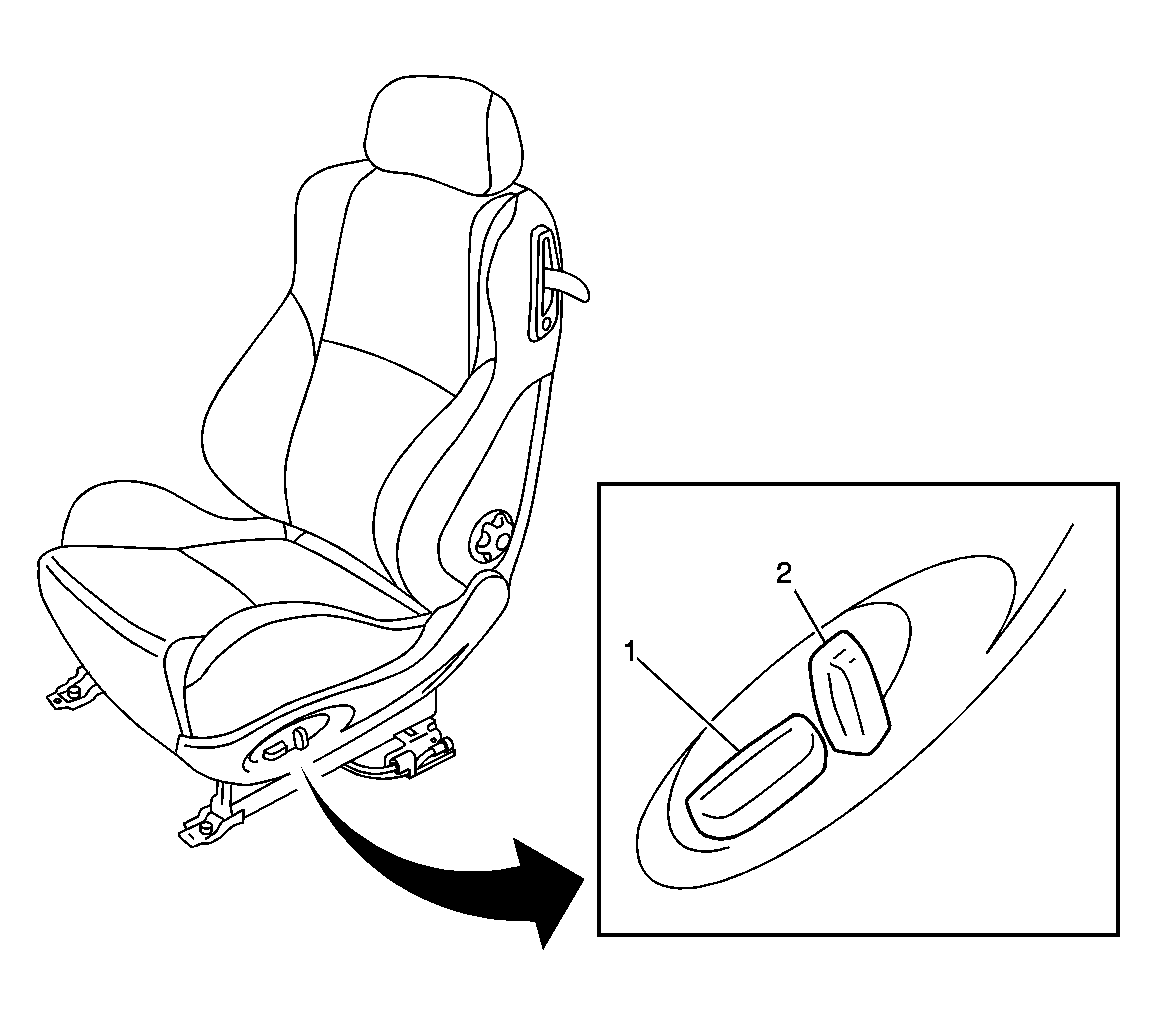

Fig 3: Power Seat Switches Component View
GM1348249Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Cushion Height, Rear Cushion Height and Fore/Aft Seat Movement Switch
2 Seat back Recliner Switch
