Data Communication Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

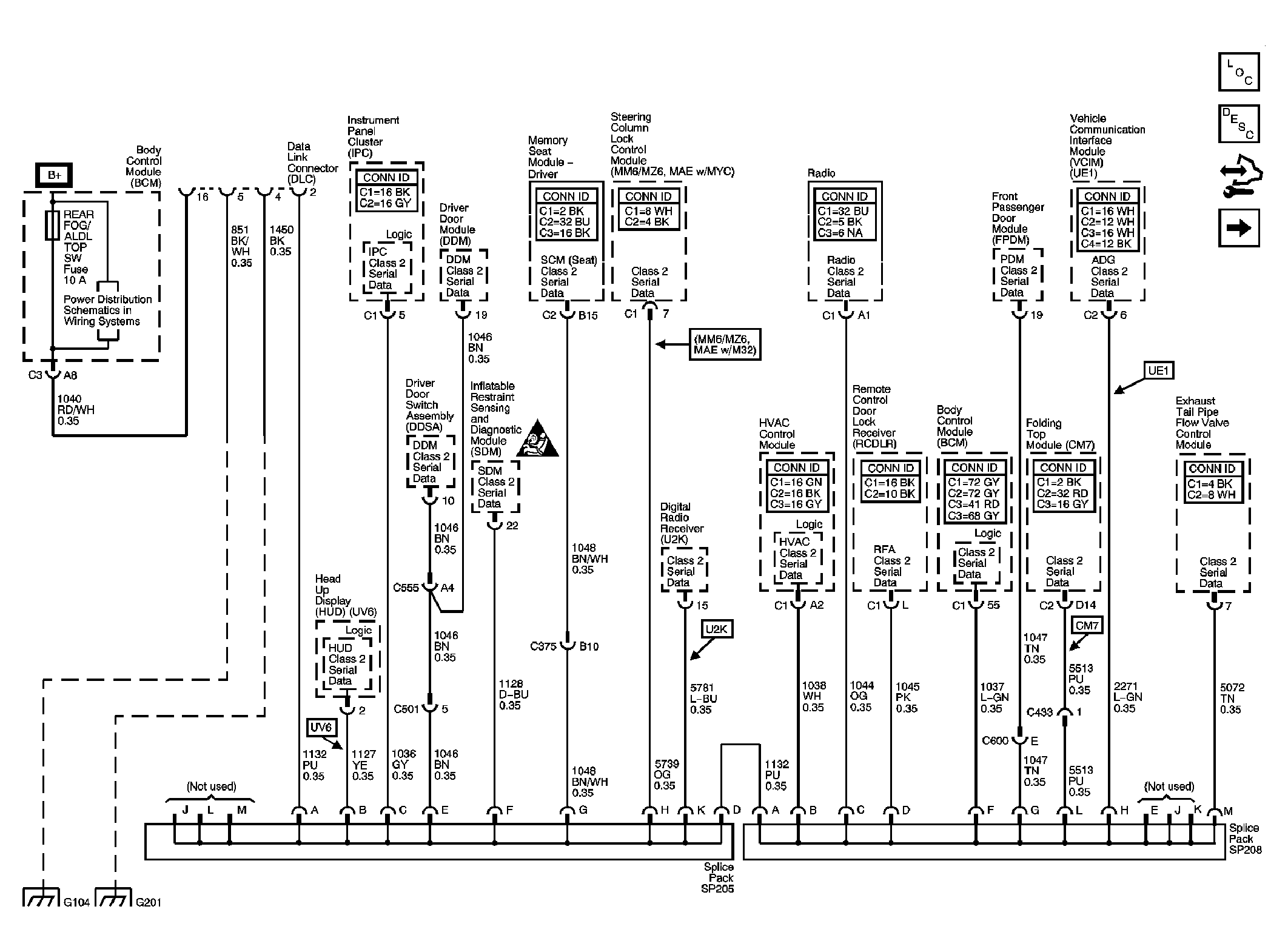

Fig 1: Class 2 Schematic

Courtesy of GENERAL MOTORS CORP.

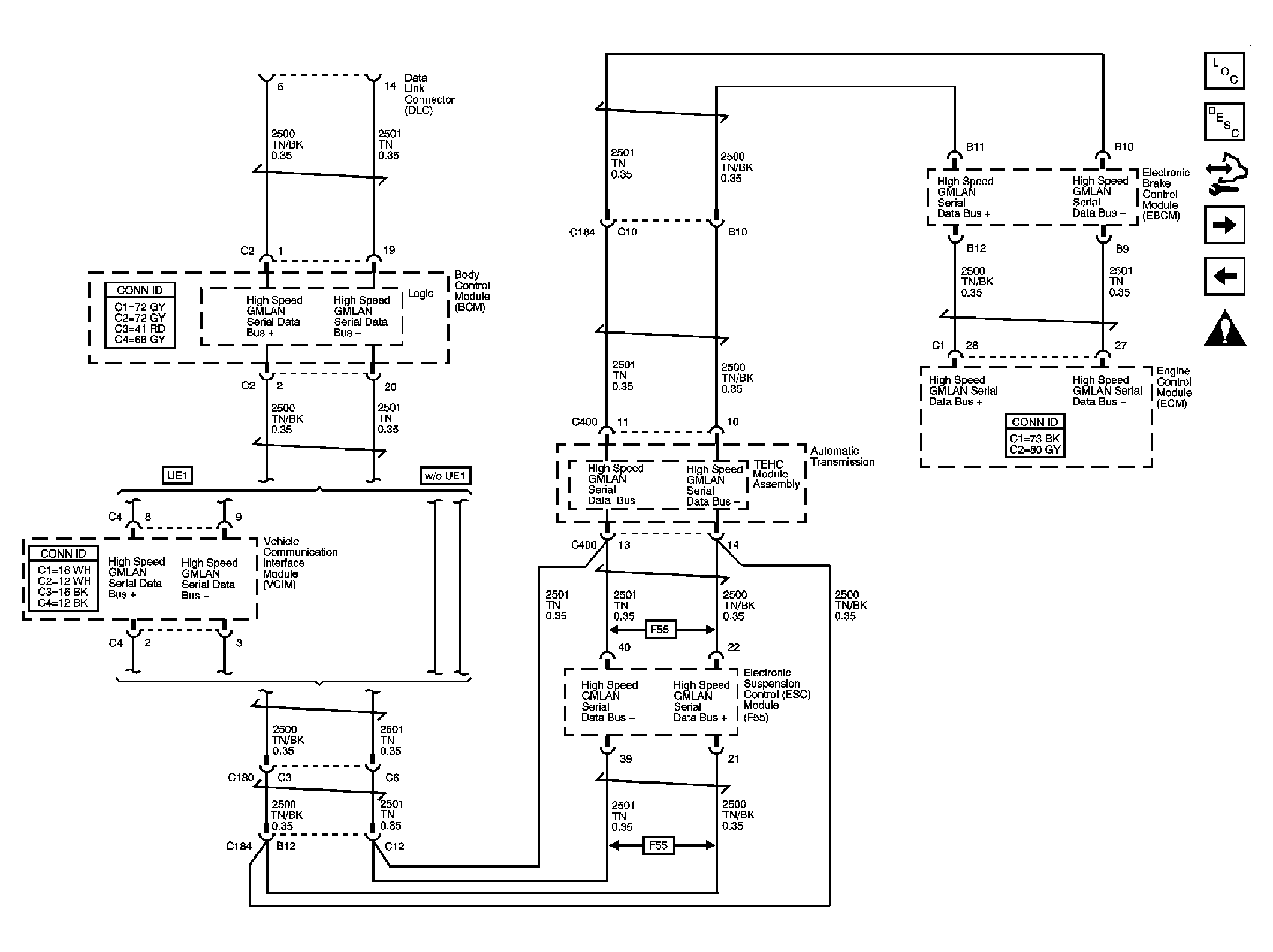

Fig 2: GMLAN - A/T Schematic

Courtesy of GENERAL MOTORS CORP.

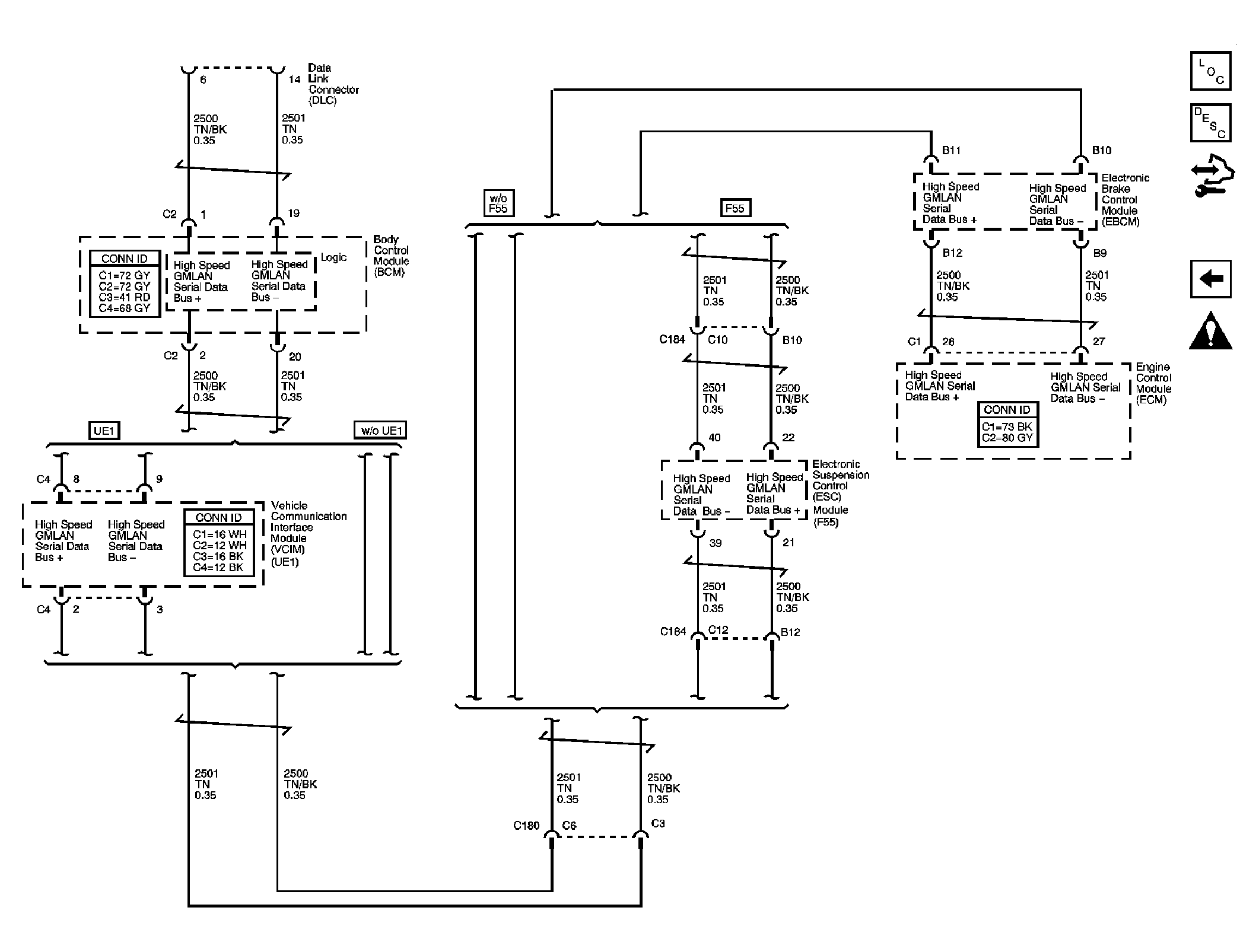

Fig 3: GMLAN - M/T Schematic

Courtesy of GENERAL MOTORS CORP.
