Anti-Lock Brake System Schematics
Anti-Lock Brake System Schematics

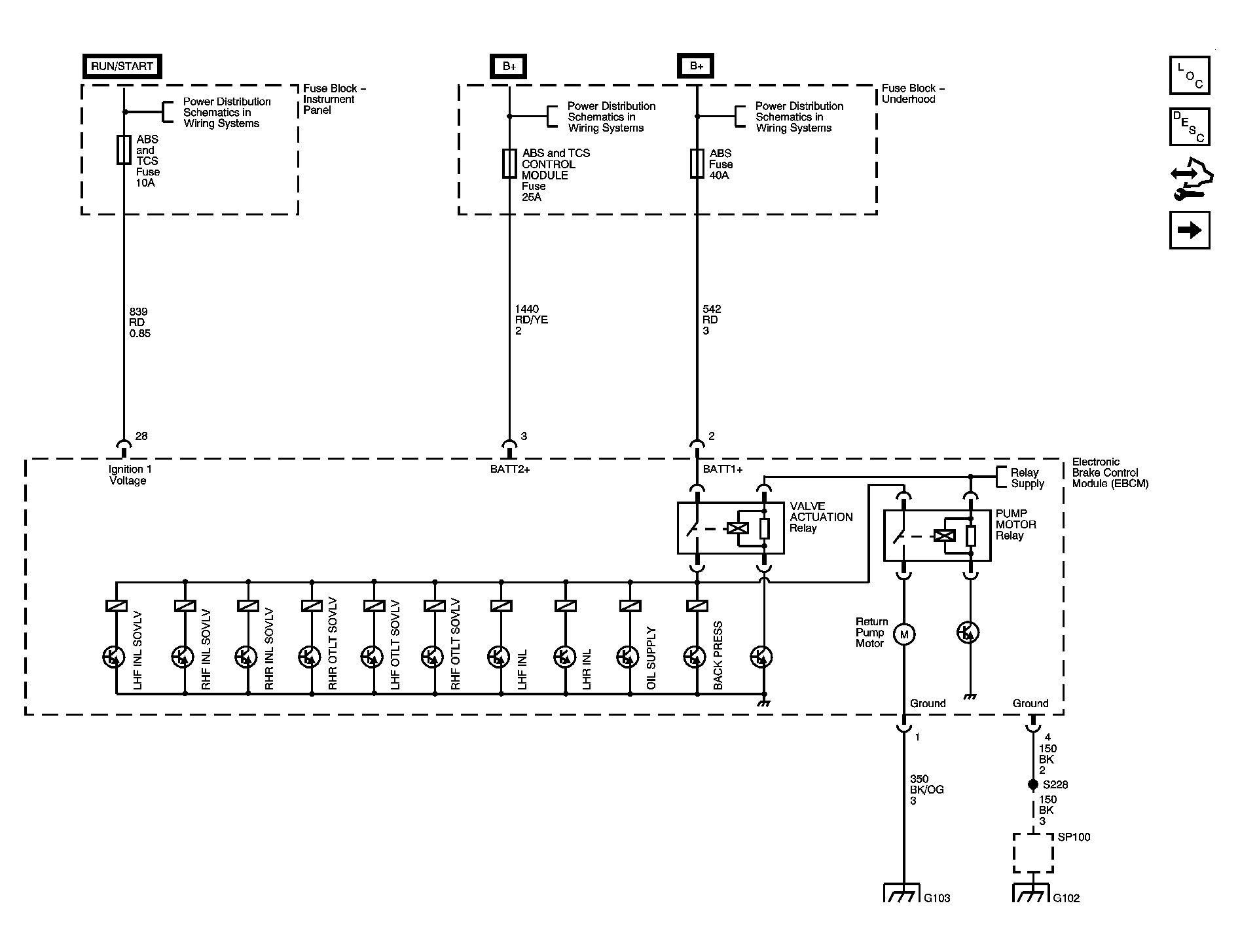

Fig 1: Electronic Brake Control Module (EBCM) Power and Ground
Courtesy of GENERAL MOTORS CORP.

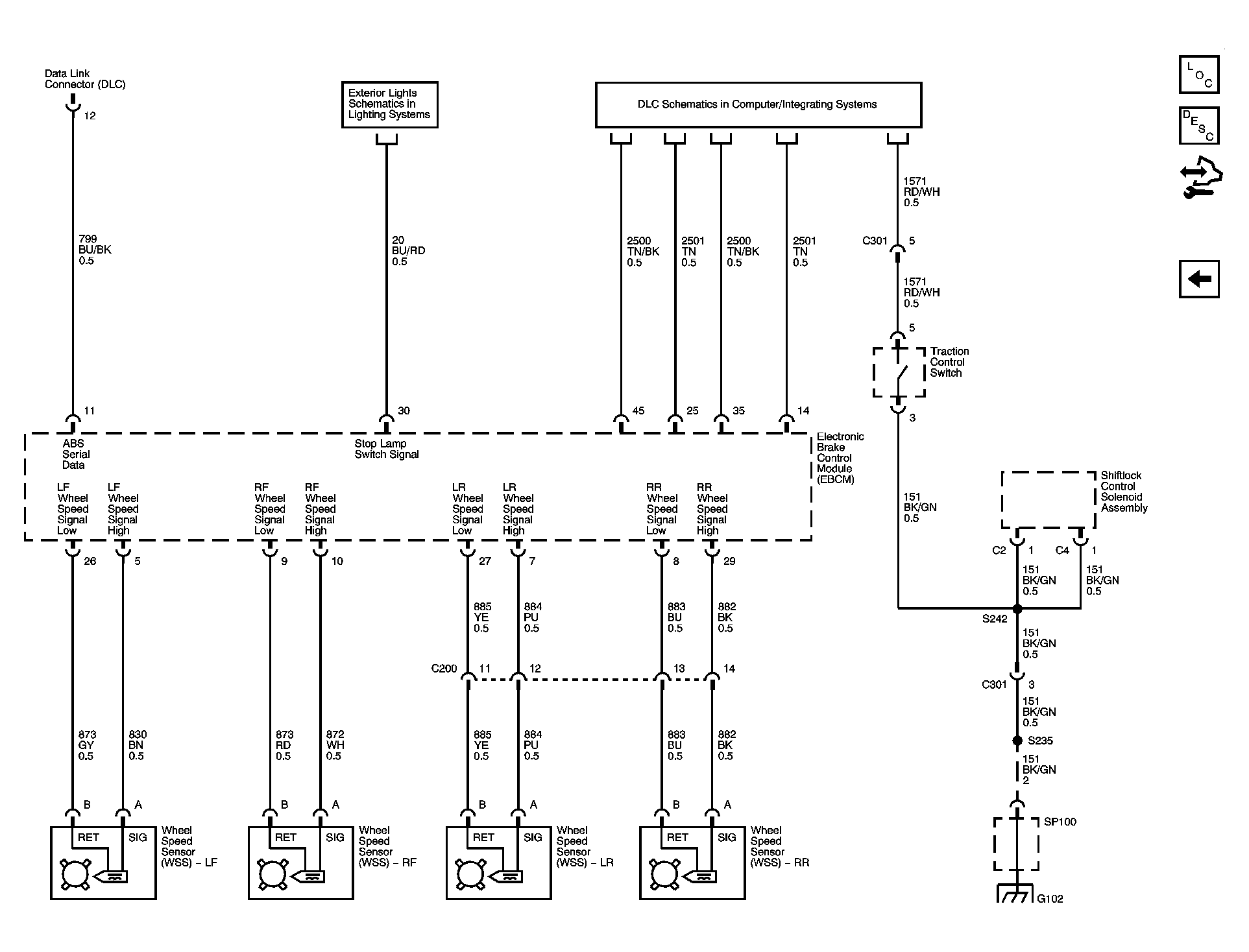

Fig 2: Wheel Speed Sensors, DLC
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
