Installation Procedure

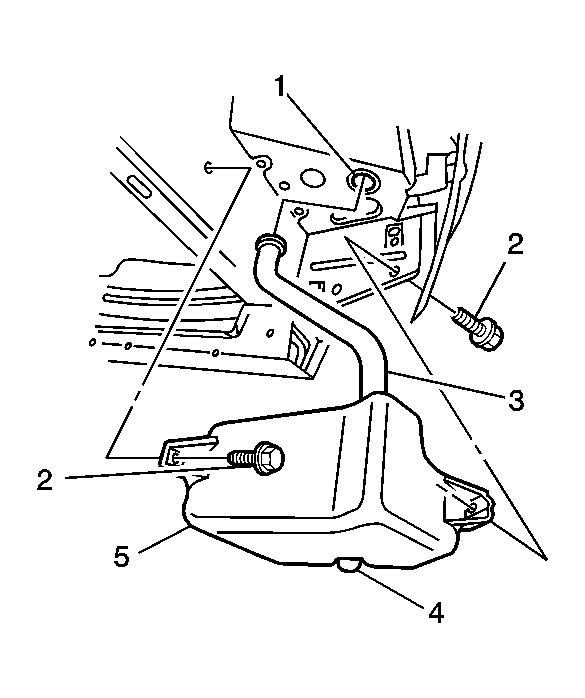

    Fig 1: View Of Container, Filler Neck, Front Wheelhouse Panel, Washer Pump & Screws
    GM1276248Courtesy of GENERAL MOTORS CORP.
  1. Install the washer pump (4) to the washer solvent container (5).
  2. Position the washer solvent filler neck (3) through the wheelhouse panel hole (1).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the washer solvent container screws (2).

    Tighten:  Tighten the screws to 3 N.m (26 lb in).

    4. Fig 2: View Of Washer Pump Assembly, Solvent Container, Hose & Connector
    GM1276247Courtesy of GENERAL MOTORS CORP.
  4. Connect the washer pump hose (1) to the washer pump (4).
  5. Connect the washer pump electrical connector (2) to the washer pump (4).
  6. Fill the washer solvent container with washer solvent.
  7. Install the right front tire and wheel, if removed. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  8. Install the battery, if removed. Refer to Battery Replacement in Engine Electrical.
