Body Control System Schematics

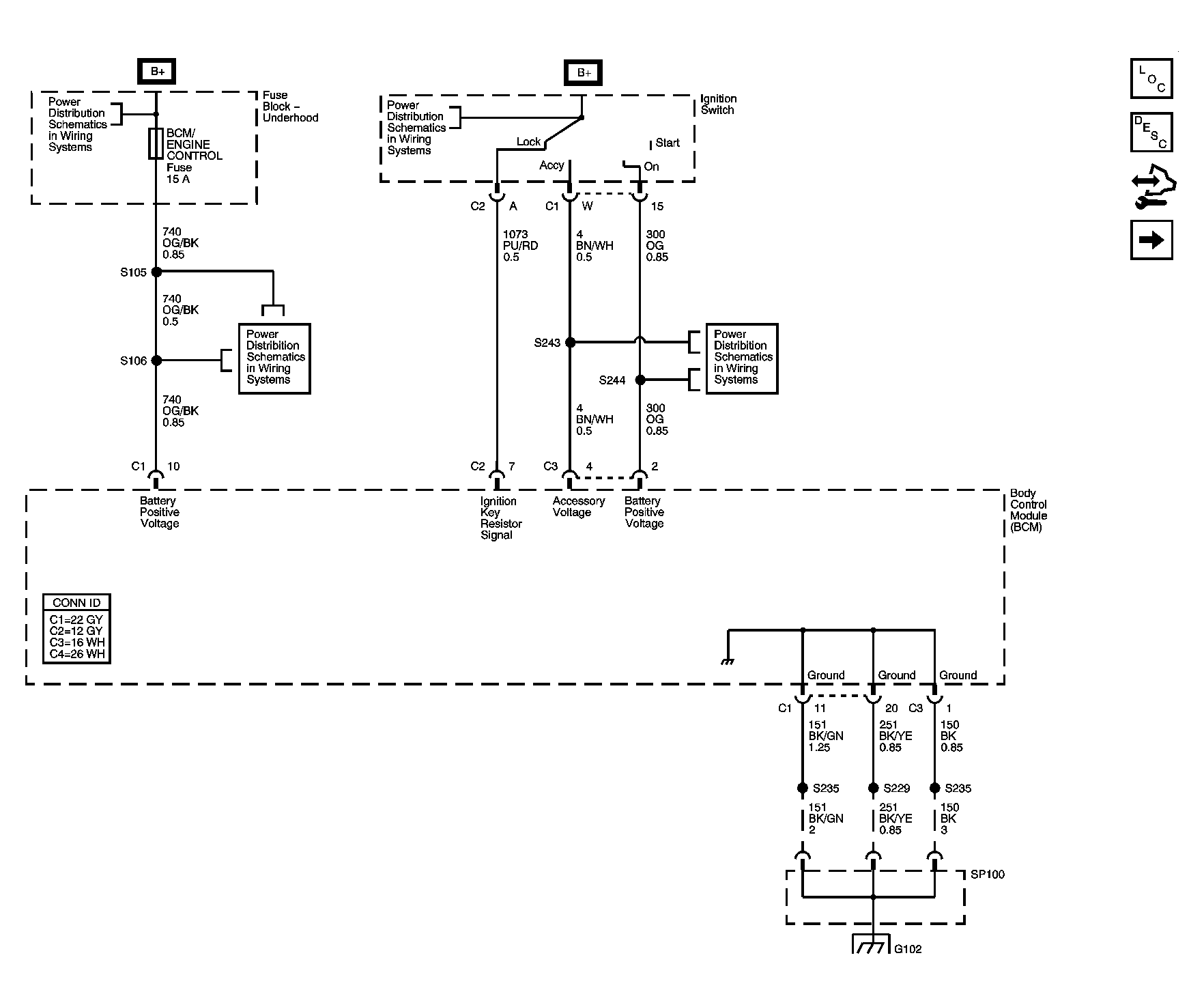

Fig 1: Body Control Module (BCM) Power and Ground
GM1519704Courtesy of GENERAL MOTORS CORP.

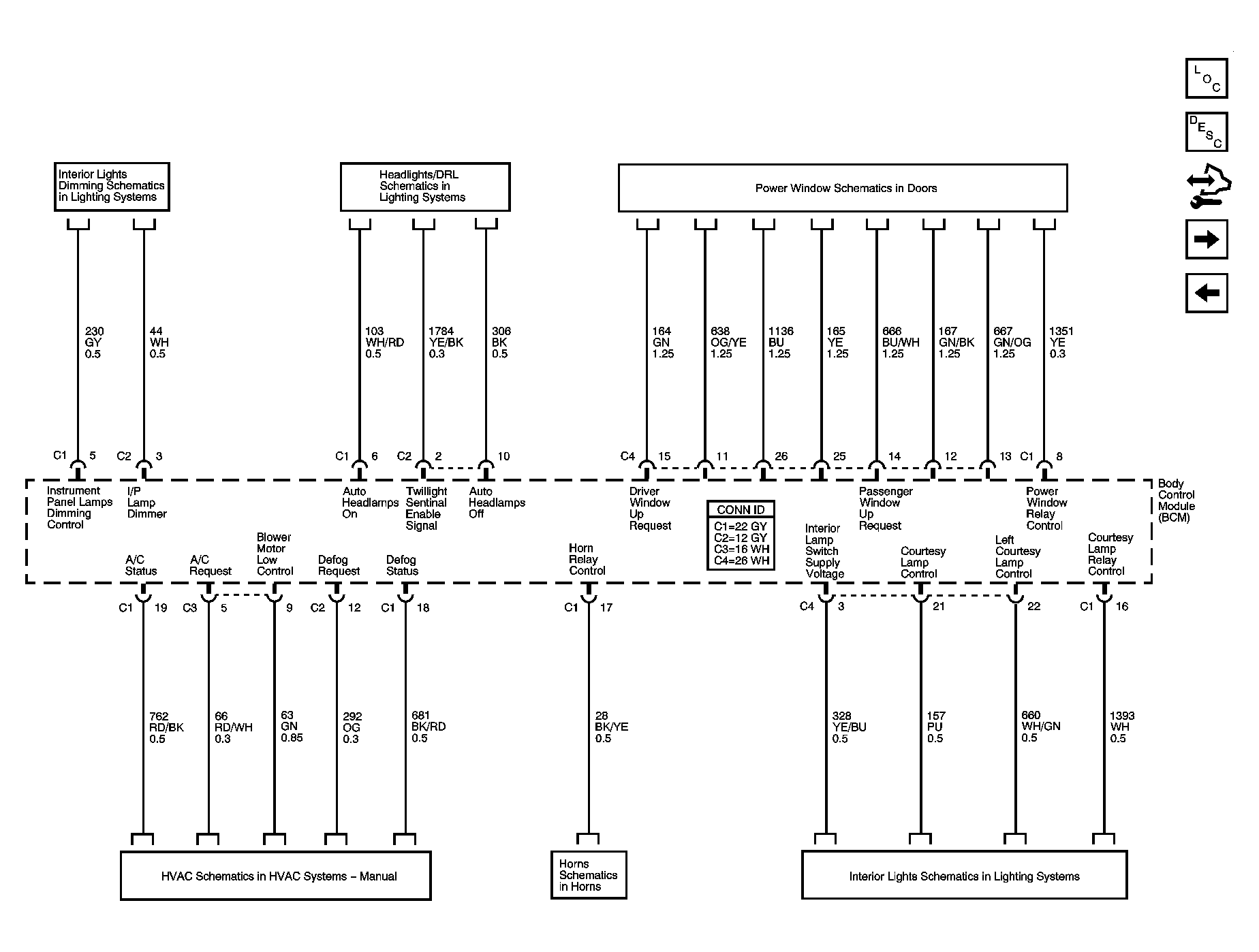

Fig 2: Controlled/Monitored Subsystem References (1 of 3)
GM1519706Courtesy of GENERAL MOTORS CORP.

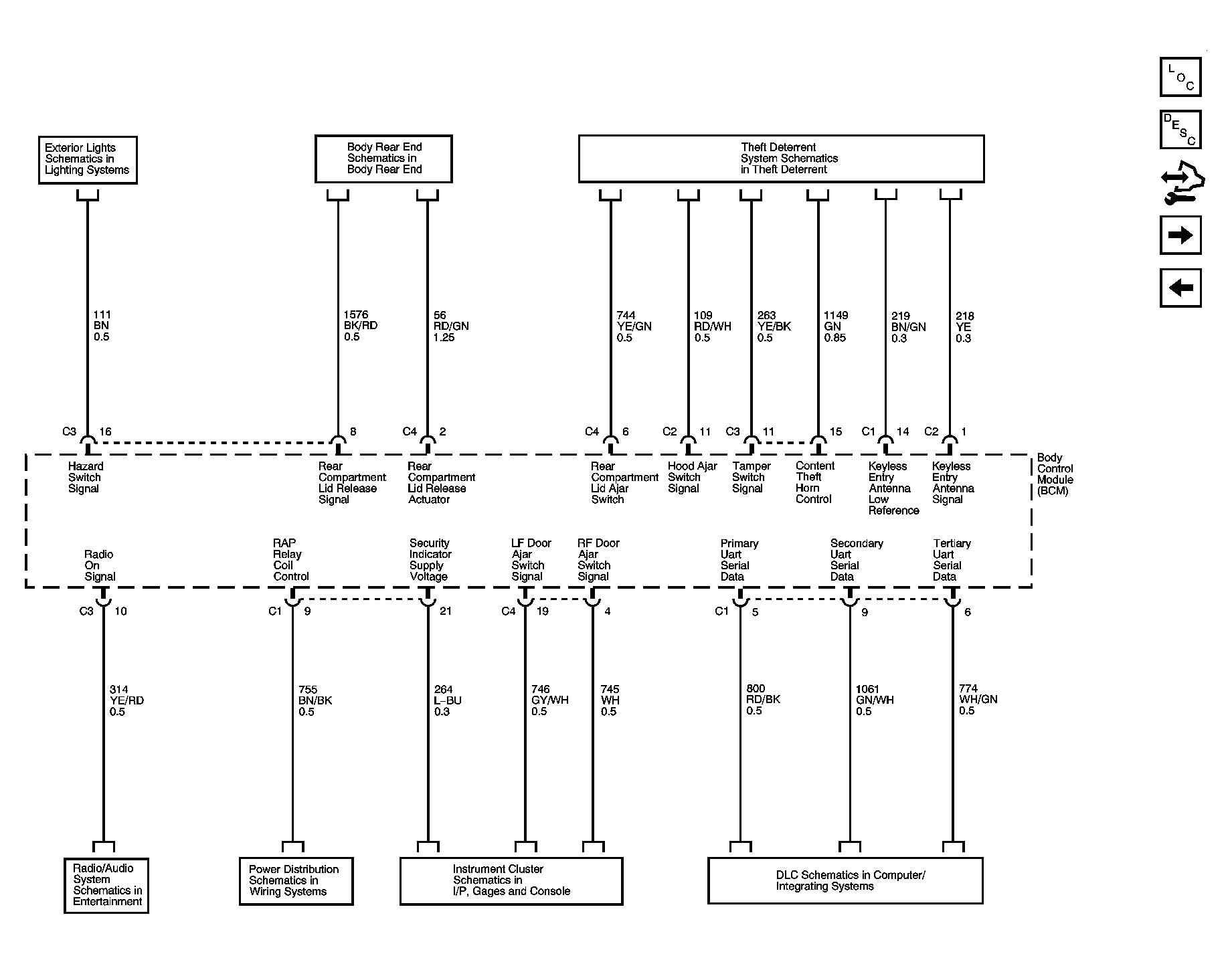

Fig 3: Controlled/Monitored Subsystem References (2 of 3)
GM1520000Courtesy of GENERAL MOTORS CORP.

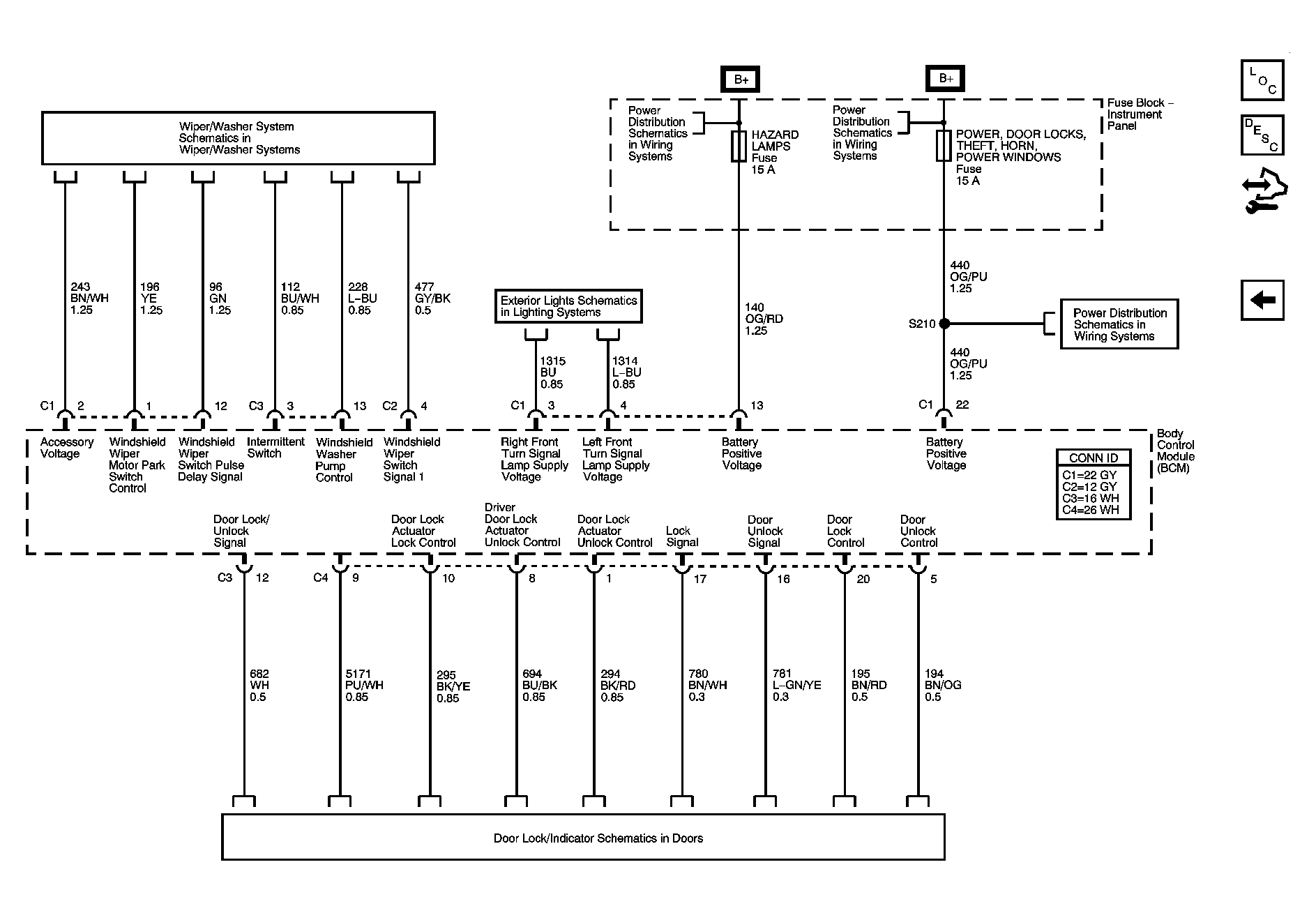

Fig 4: Controlled/Monitored Subsystem References (3 of 3)
GM1520033Courtesy of GENERAL MOTORS CORP.
