Power and Grounding Component Views

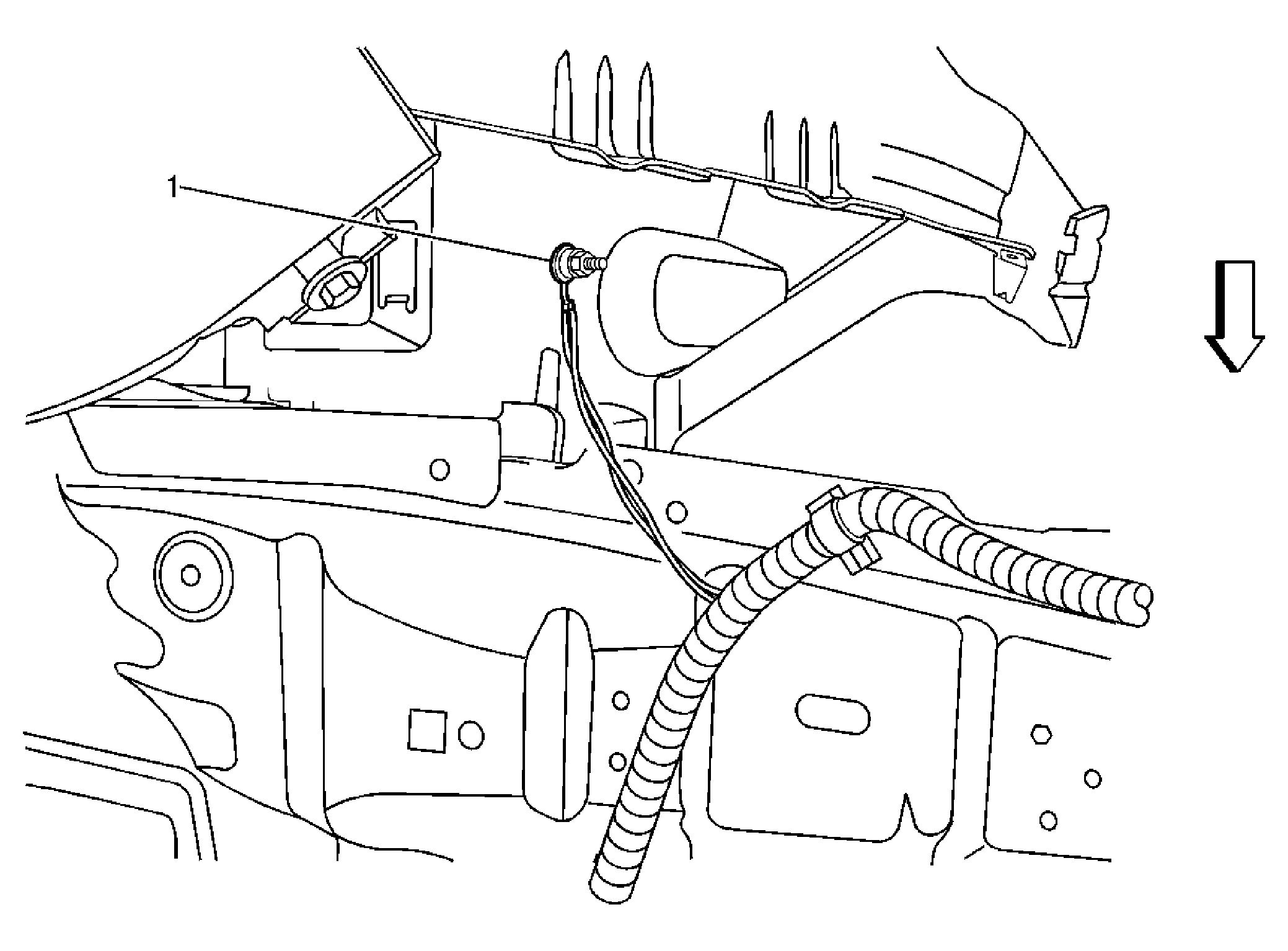

Fig 1: Front Side of Core Support Behind Right Headlamp Assembly

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	G102

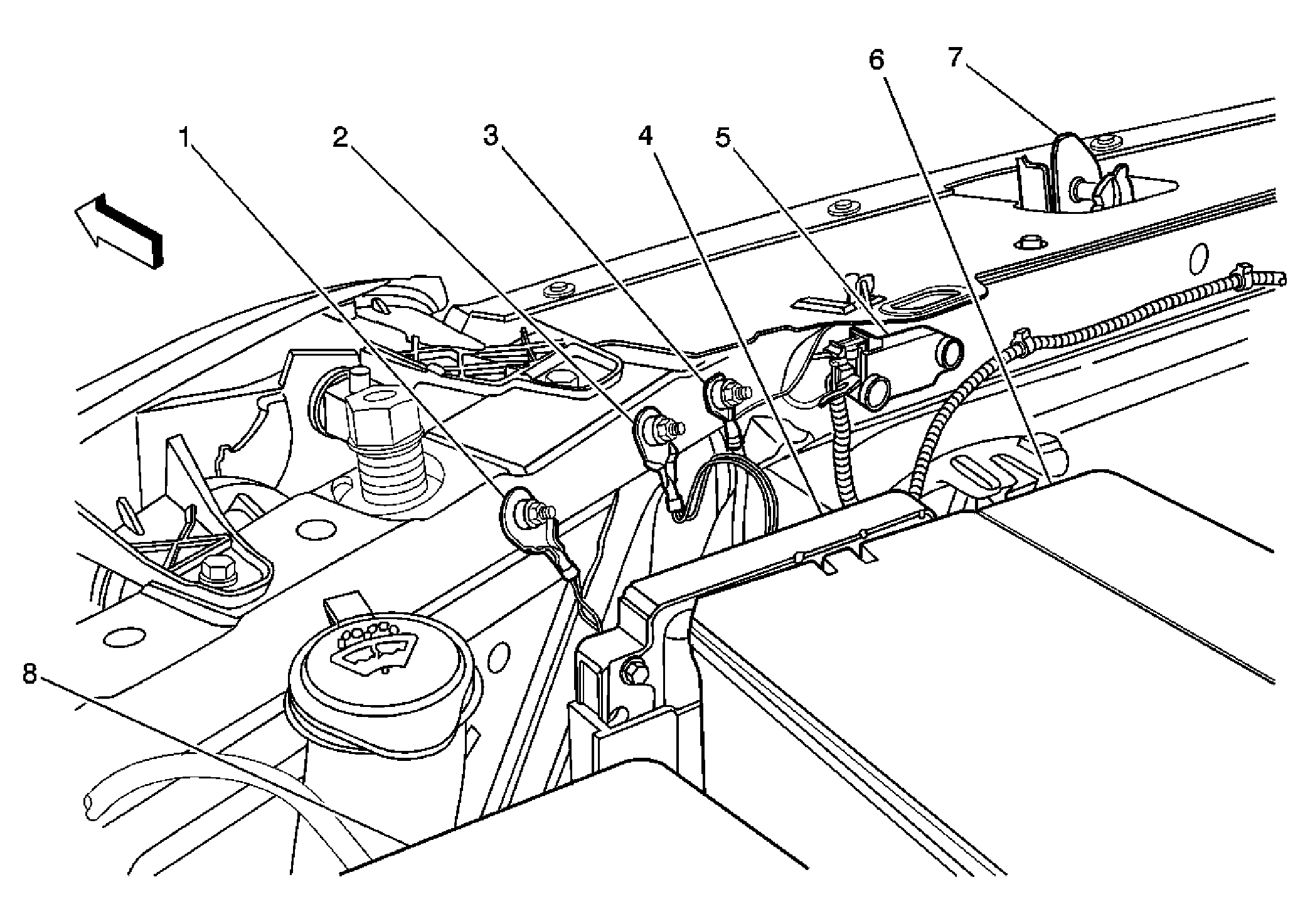

Fig 2: Left Side of Core Support

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	G101
2	G104
3	G109
4	Powertrain Control Module (PCM)
5	Inflatable Restraint Front End Sensor - Left
6	Battery
7	Hood Latch
8	Fuse Block - Underhood

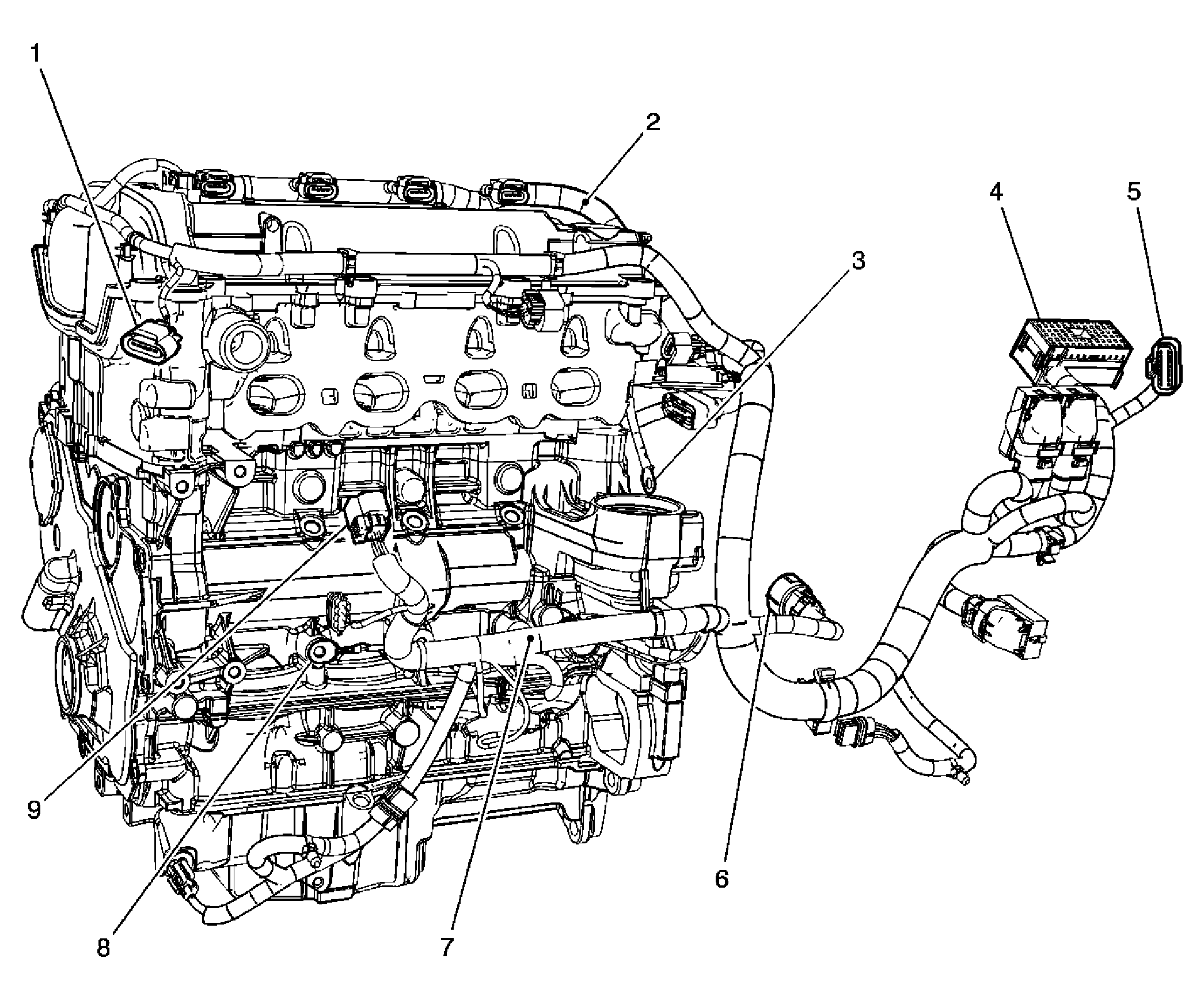

Fig 3: Front of the Engine (LE5)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Mass Air Flow (MAF) Sensor Connector
2	S101
3	G106
4	Fuse Block - Underhood C1
5	C108
6	C100
7	S118
8	G105
9	C130

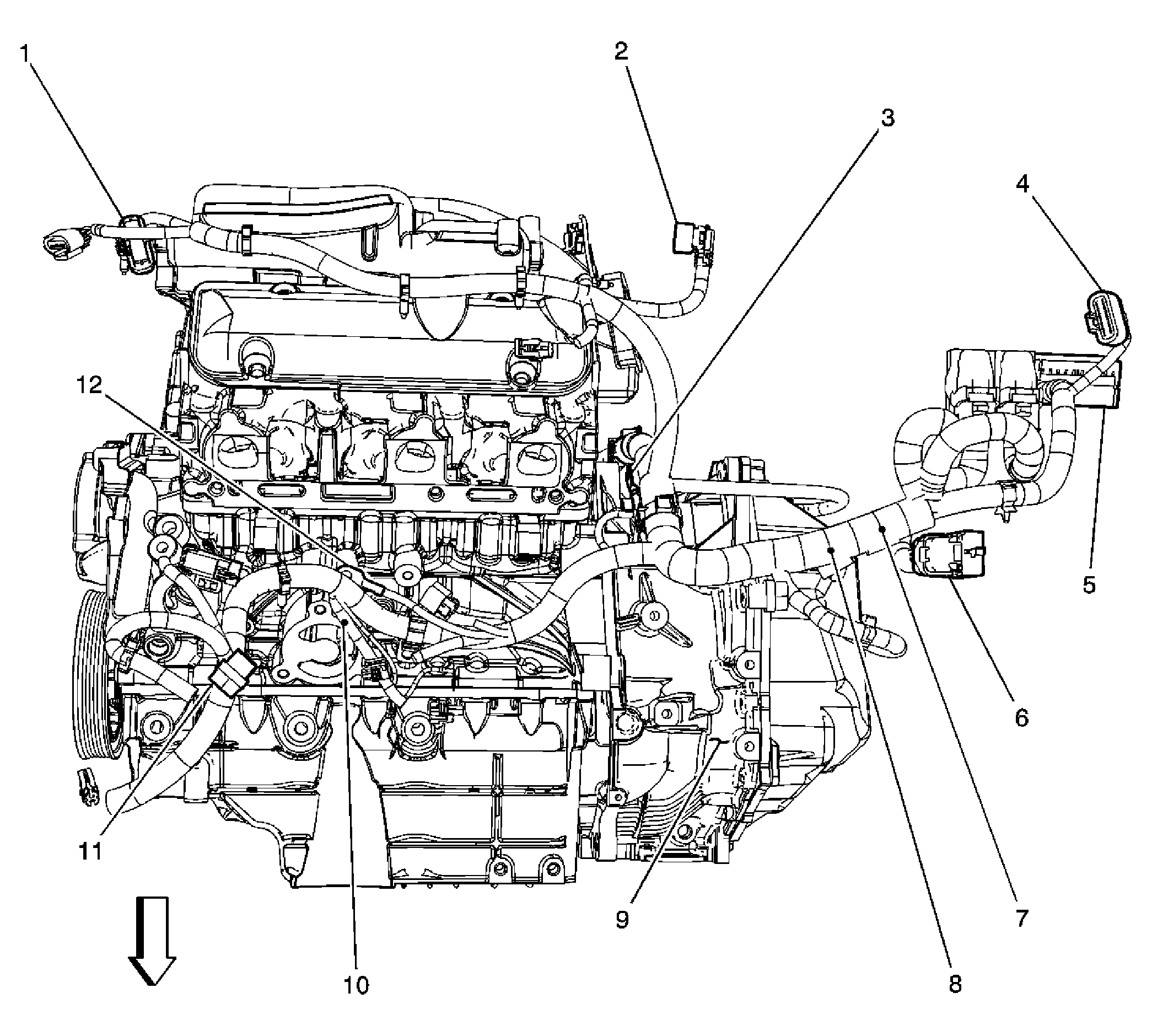

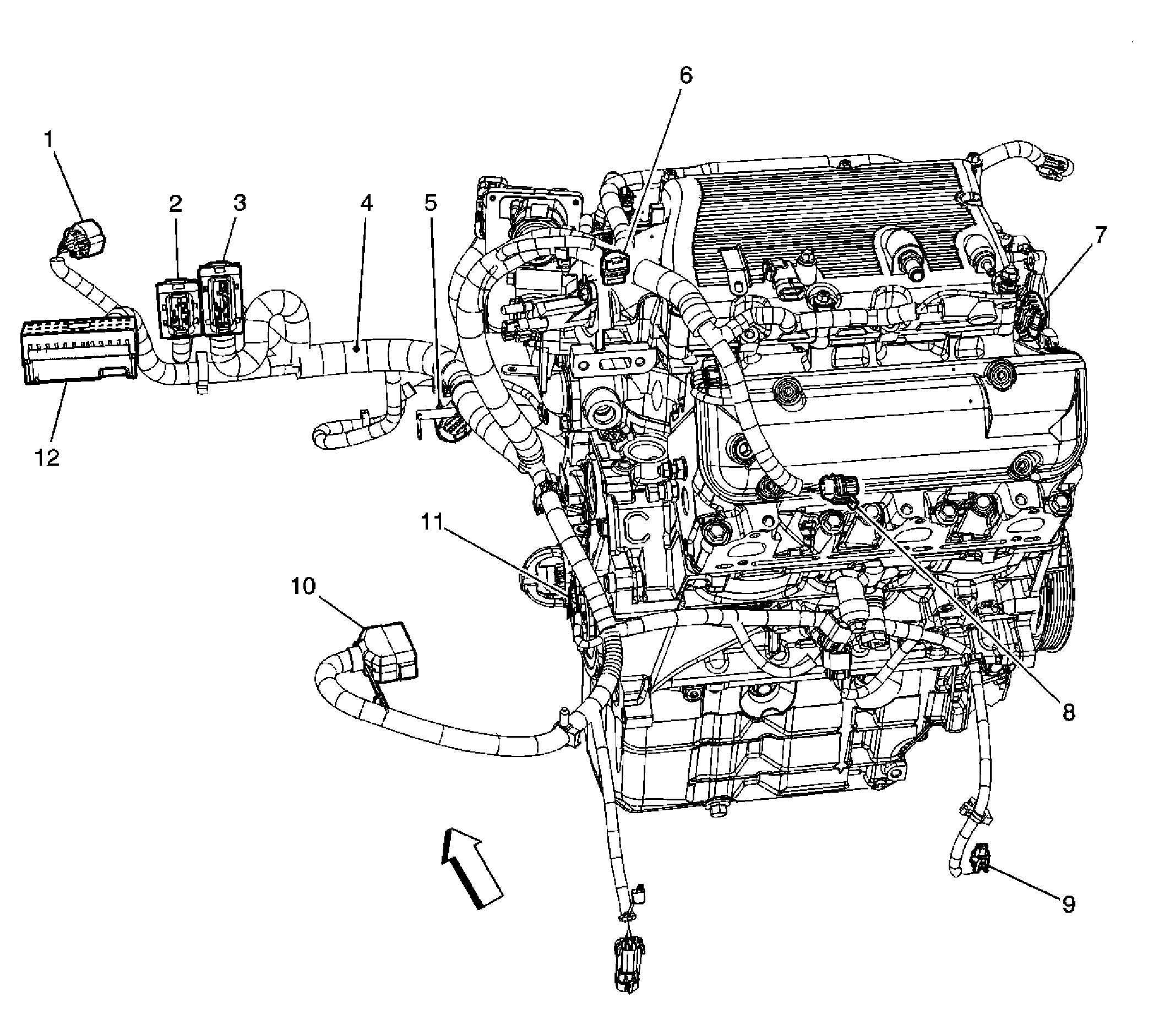

Fig 4: Front of the Engine (LZ9 w/M15)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	C130
2	Throttle Actuator Control (TAC) Module Connector
3	G105
4	C108
5	Fuse Block Underhood C1 Connector
6	Transmission Control Module (TCM) Connector
7	S118
8	S119
9	Transmission
10	S111
11	Cooling Fan - Right Connector
12	G106

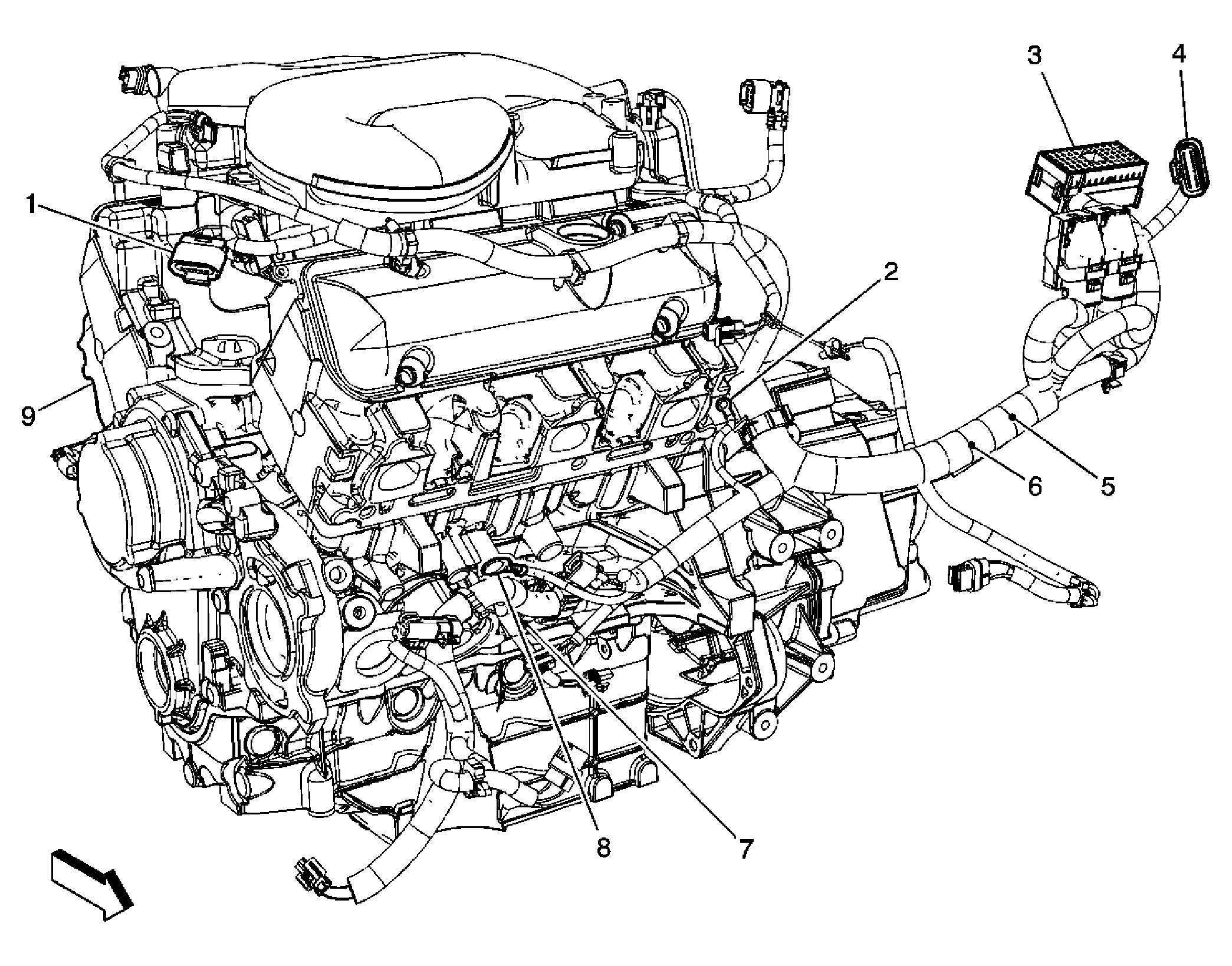

Fig 5: Front of the Engine (LZ9 w/MT2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	C130
2	G105
3	Fuse Block - Underhood C1
4	C108
5	S118
6	S119
7	S111
8	G106
9	Engine Block

Fig 6: Left Rear of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	Coolant Level Switch
2	Battery
3	Electronic Brake Control Module (EBCM)
4	C101
5	G103
6	Fuse Block - Underhood
7	Powertrain Control Module (PCM)
8	Powertrain Control Module (PCM), C3
9	Powertrain Control Module (PCM), C2
10	Powertrain Control Module (PCM), C1

Fig 7: Engine Rear

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	C108
2	Powertrain Control Module (PCM) C3
3	Powertrain Control Module (PCM) C2
4	C118
5	C100
6	Exhaust Gas Recirculation (EGR) Valve Connector
7	Generator Connector
8	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector
9	Vehicle Speed Sensor (VSS) Connector
10	Park/Neutral Position (PNP) Switch Connector
11	G106
12	Fuse Block - Underhood C1

Fig 8: Left Rear of Engine

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	G105
2	G106 (LX9)
3	Engine Coolant Temperature (ECT) Sensor (LX9)
4	Park Neutral Position (PNP) Switch

Fig 9: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 9

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Ambient Light Sensor
8	Hazard Switch
9	Radio
10	Inflatable Restraint I/P Module
11	Rear Window Defogger Switch
12	Traction Control Switch (NW7/NW9)
13	Cigar Lighter
14	A/C Request Switch
15	HVAC Control Module
16	Inflatable Restraint Steering Wheel Module
17	Fog Lamp Switch
18	I/P Dimmer Switch
19	Adjustable Pedals Position Switch

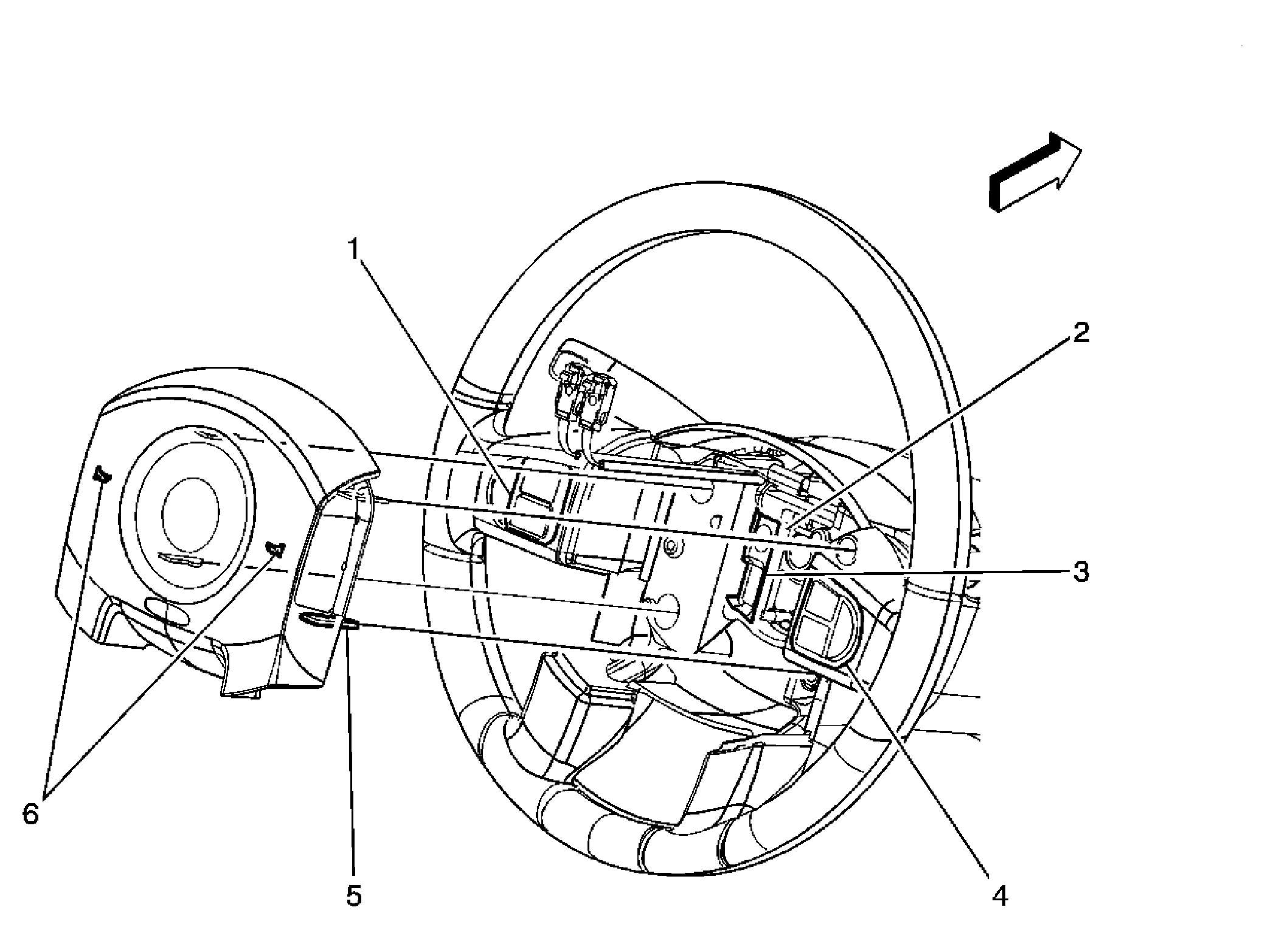

Fig 10: Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 10

Callout	Component Name
1	Steering Wheel Controls - Left
2	G216
3	Horn Switch
4	Steering Wheel Controls - Right
5	Inflatable Restraint Steering Wheel Module
6	Horn Buttons

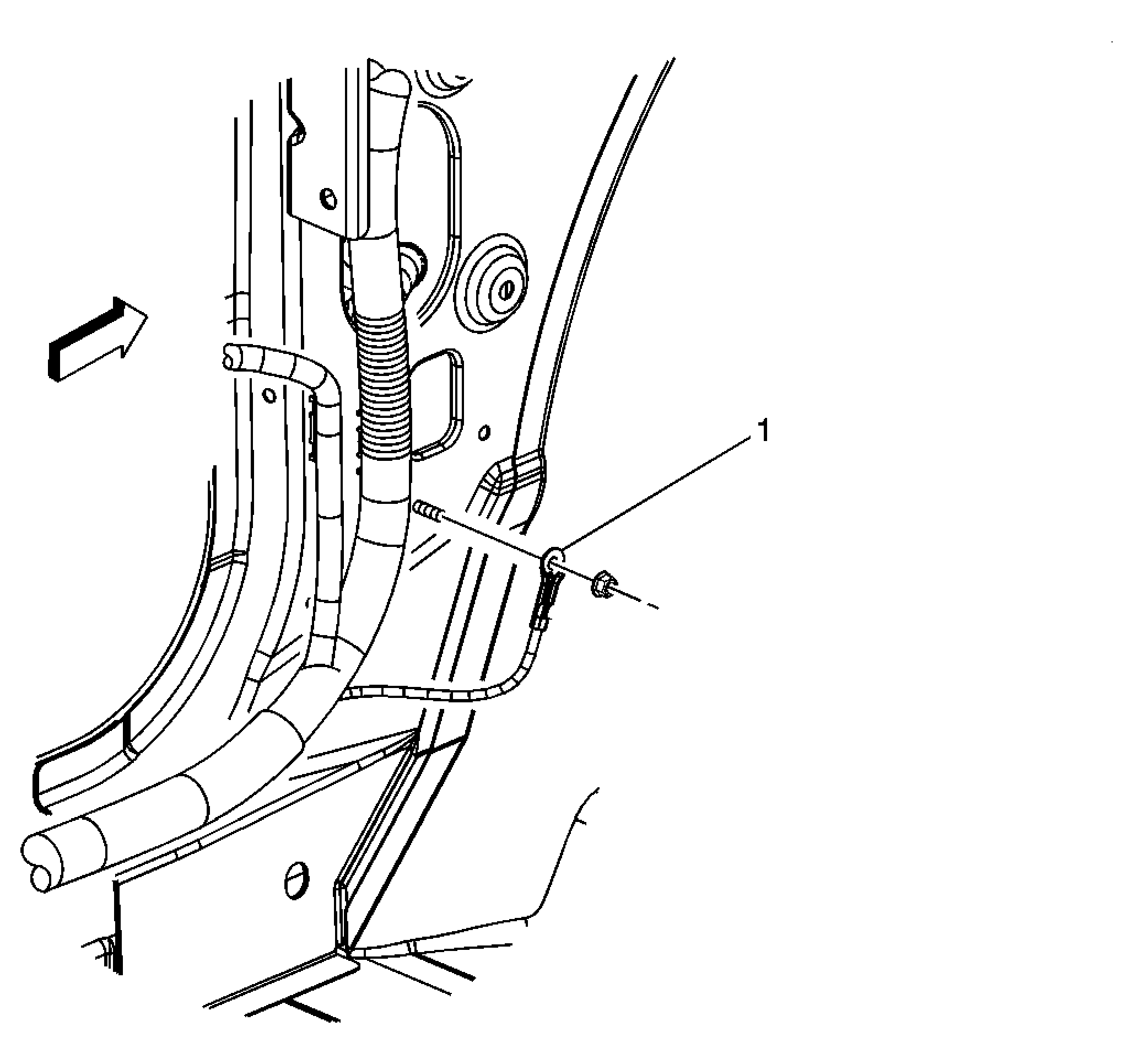

Fig 11: Under the Left Kick Panel

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 11

Callout	Component Name
1	G303

Fig 12: Right Side of the Instrument Panel and Shifter

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 12

Callout	Component Name
1	Radio, C1
2	Body Control Module (BCM), C2
3	HVAC Control Module, C2
4	HVAC Control Module, C1
5	Inflatable Restraint I/P Module Connector
6	C207
7	G201
8	G203
9	Body Control Module (BCM), C3
10	Body Control Module (BCM), C1
11	Body Control Module (BCM)

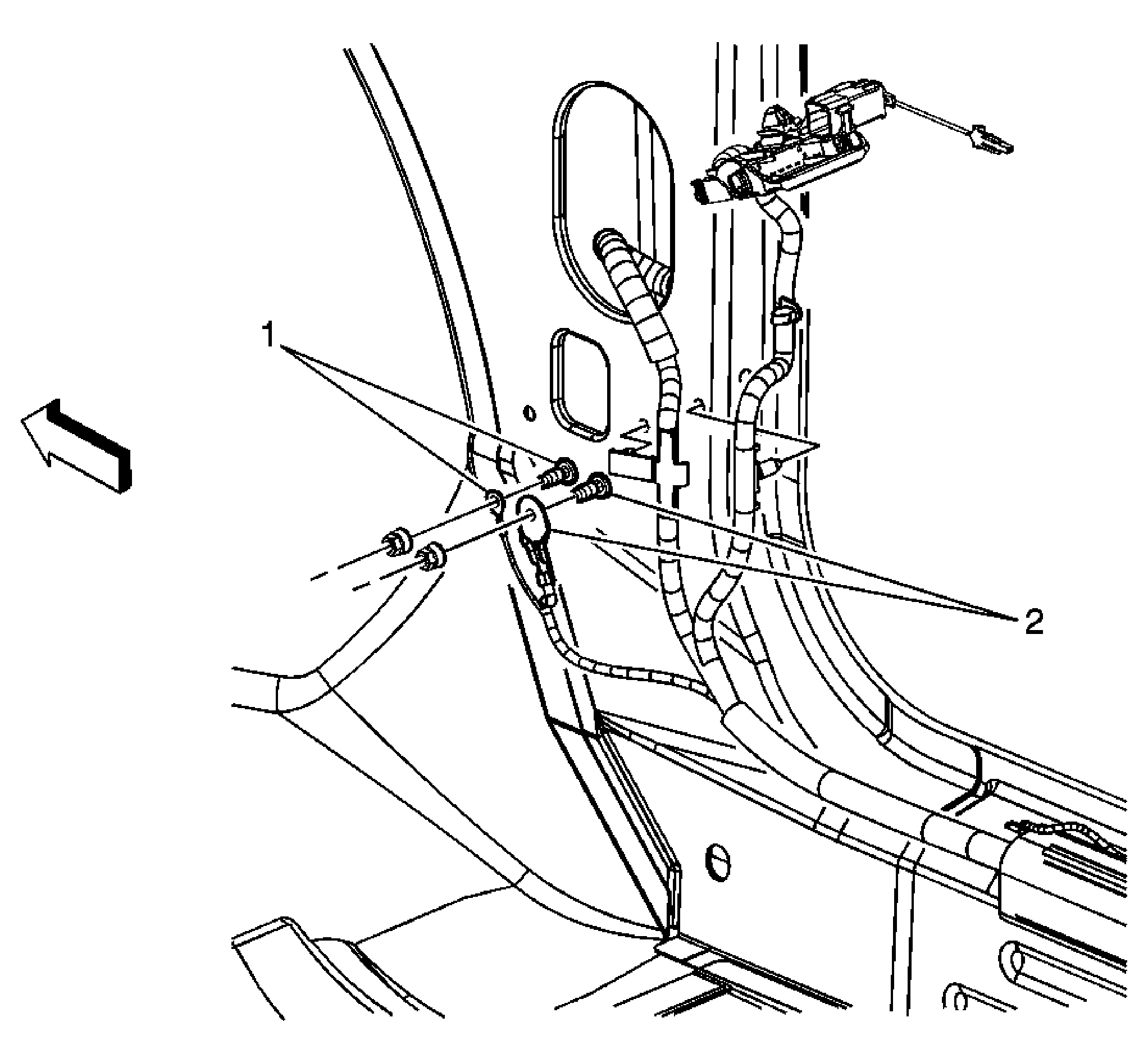

Fig 13: Under the Right Kick Panel

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 13

Callout	Component Name
1	G304
2	G305

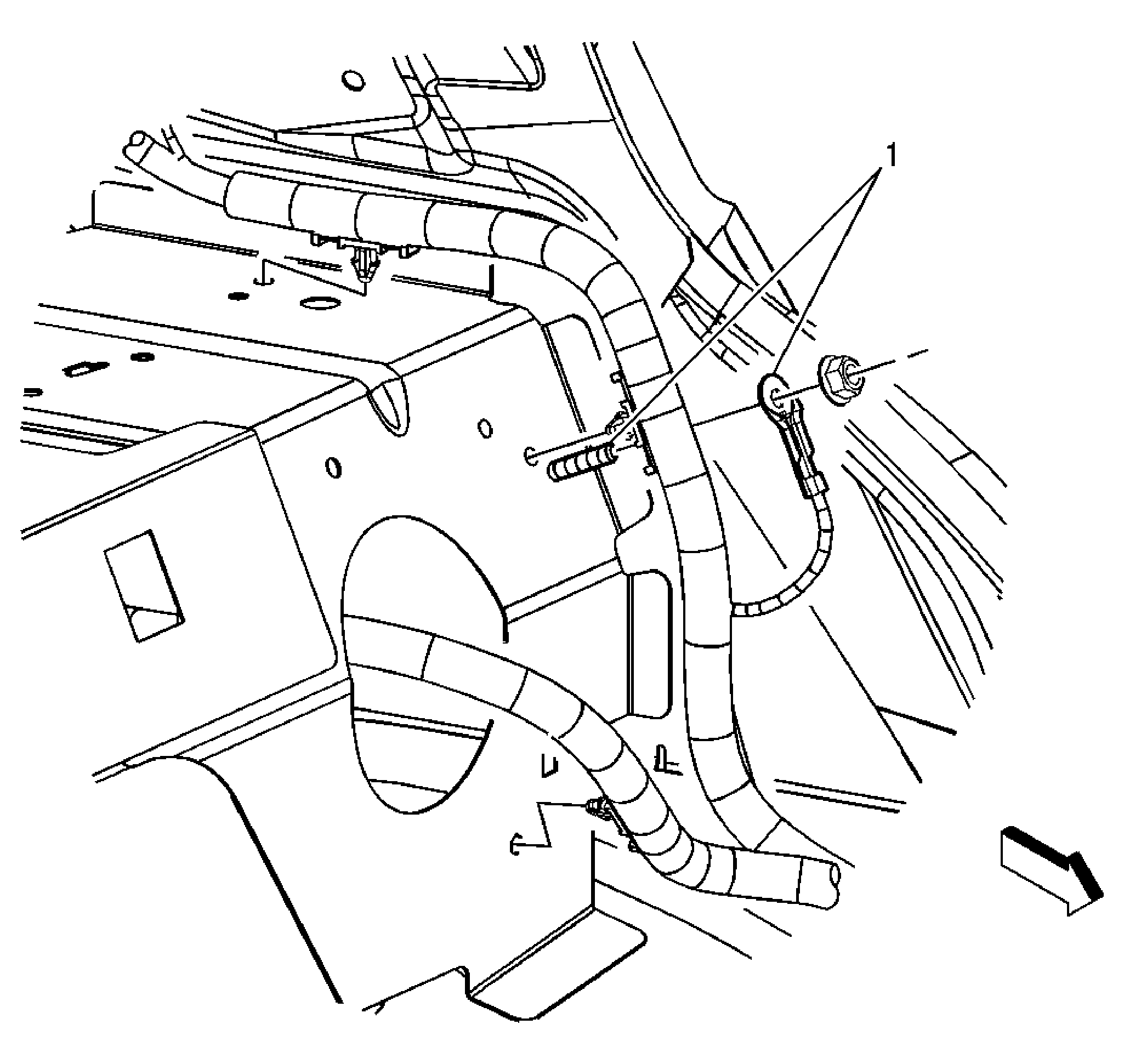

Fig 14: Behind the Rear Seat to the Left Side - Sedan

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 14

Callout	Component Name
1	G302

Fig 15: Inside of Right C-Pillar - Sedan

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 15

Callout	Component Name
1	Rear Window Defogger Grid, C2
2	G301
3	Inflatable Restraint Roof Rail Module - Right

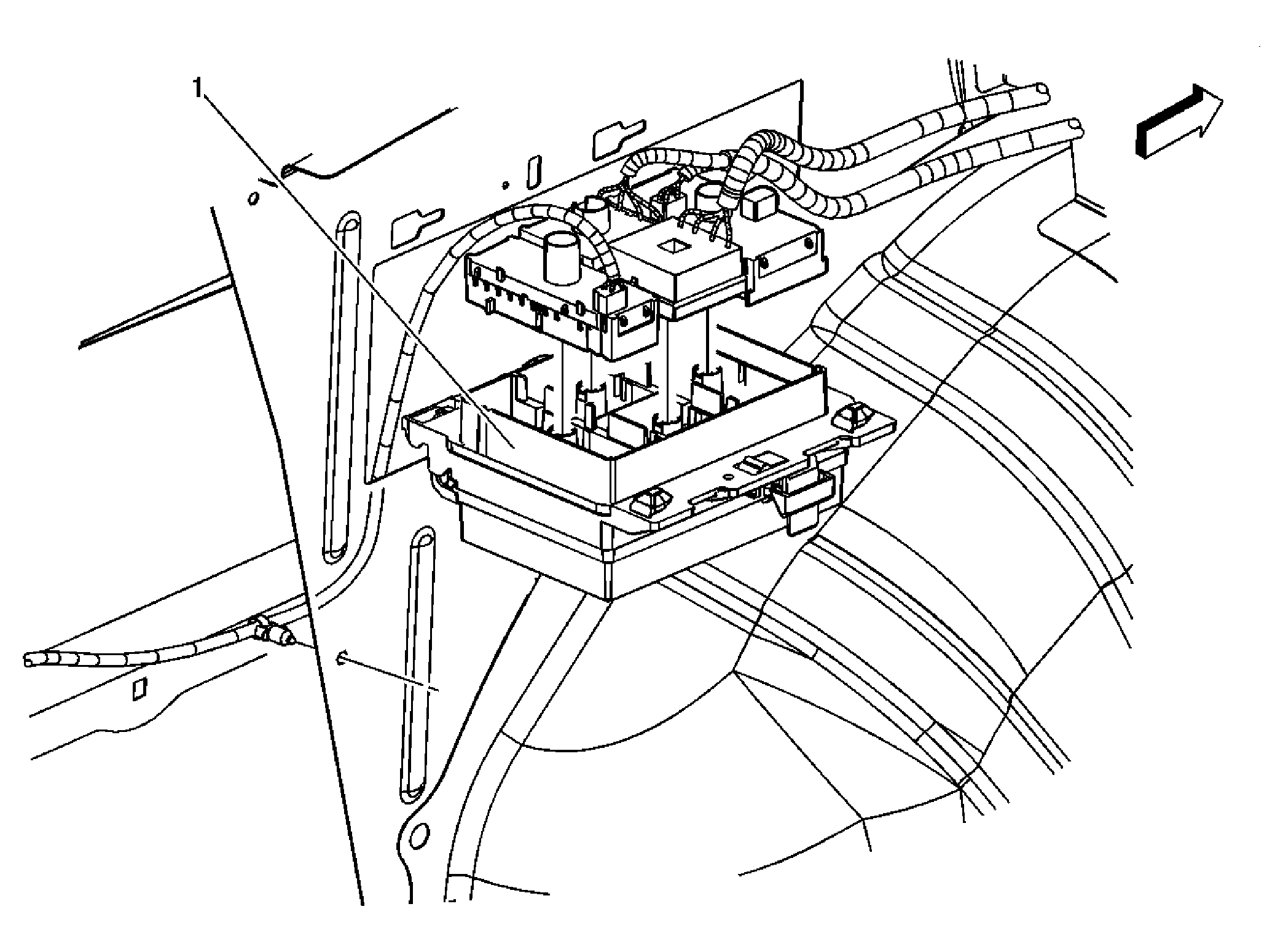

Fig 16: Inside Left Rear Quarter Panel - Sedan

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 16

Callout	Component Name
1	Fuse Block - Rear

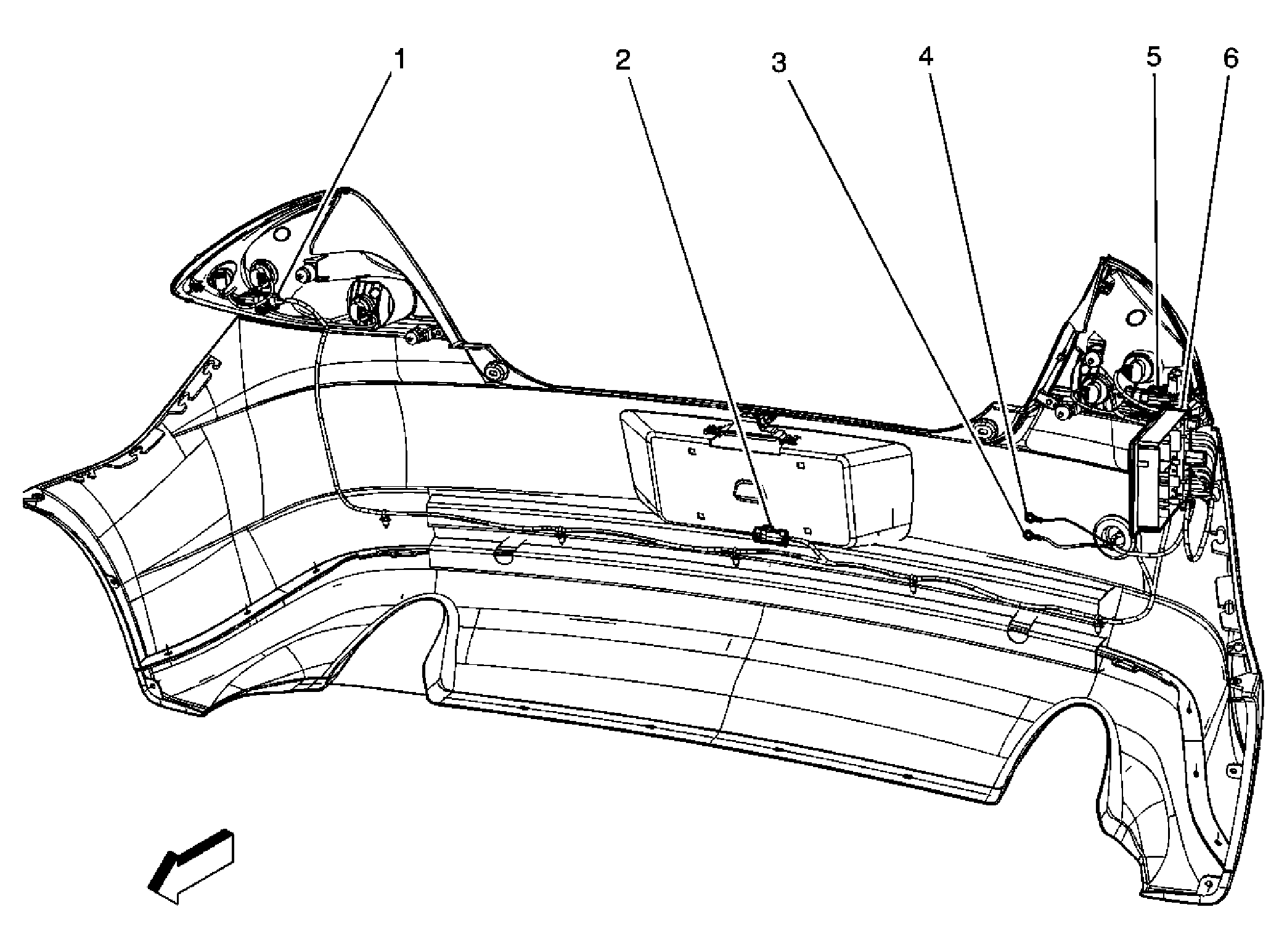

Fig 17: Rear Fascia

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 17

Callout	Component Name
1	C402 Rear Lamp Harness to RR Tail Lamp Harness
2	License Lamp Connector
3	G401
4	G403
5	C401 Rear Lamp Harness to LR Tail Lamp Harness
6	Rear Junction Block C1
