Rear Camber Adjustment

WARNING: This page is about a different car, the 2005 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

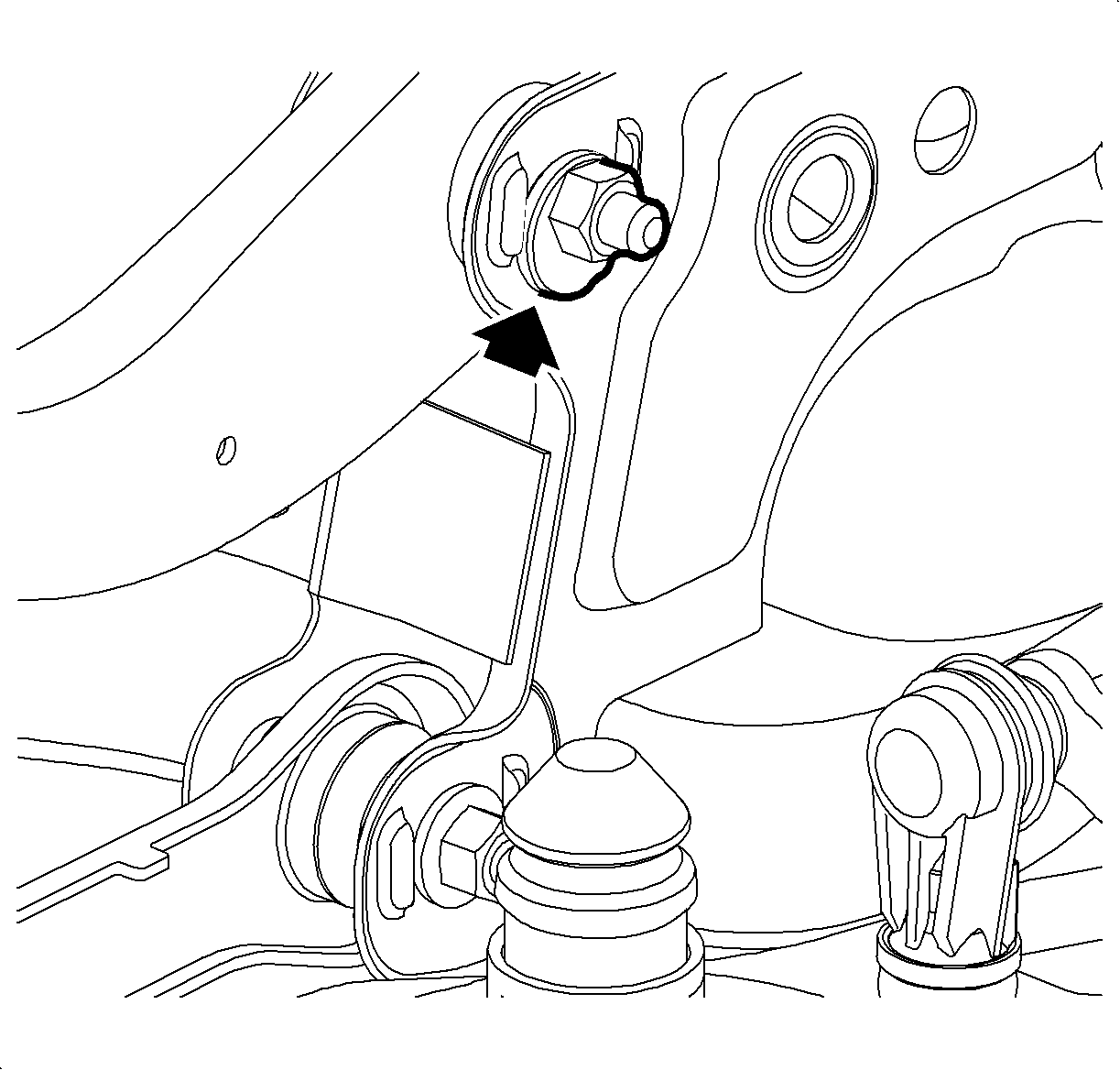

    Fig 1: Locating Upper Control Arm-To-Frame Fastener
    GM933977Courtesy of GENERAL MOTORS CORP.
  1. Loosen the upper control arm-to-frame fastener enough to allow movement.
    2. IMPORTANT: The frame of the vehicle is slotted, turning the cam nut will move the camber in to the designated location.
  2. Rotate the upper control arm-to-frame fastener in the direction necessary to the correct the camber measurement.
  3. Snug the upper control arm-to-frame fastener, do not tighten at this time.
  4. Reinspect the rear camber specifications and adjust as necessary.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Hold the nut and tighten the upper control arm-to-frame bolt.

    Tighten:  Tighten the bolt to 110 N.m (81 lb. ft.).

  6. Repeat the procedure for the other rear wheel.
