Installation Procedure

    Fig 1: Exploded View Of Air Cleaner Filter
    GM851250Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner filter into the lower air cleaner housing.
  2. Install the upper air cleaner cover to the lower air cleaner housing.
    3. NOTE: Refer to Fastener Notice .
  3. Secure the air cleaner housing cover.

    Tighten:  Tighten the screws to 5 N.m (44 lb in).

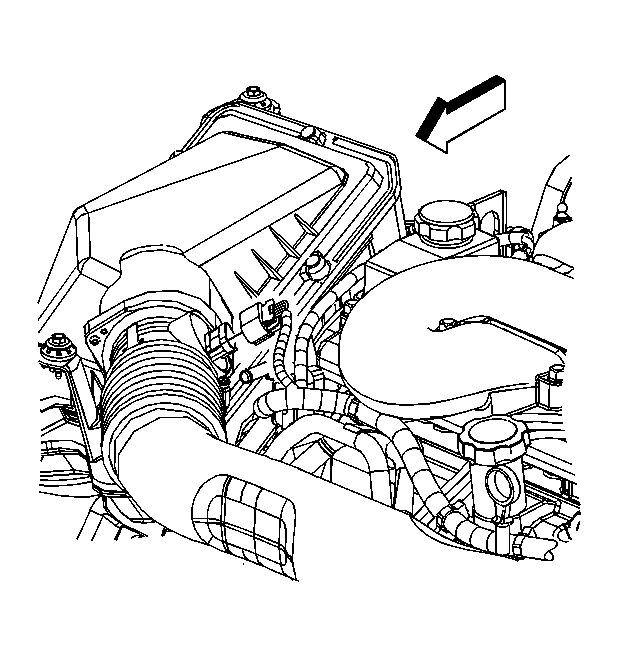

    4. Fig 2: Removing/Installing Positive Crankcase Ventilation (PCV) Fresh Air Tube
    GM1583638Courtesy of GENERAL MOTORS CORP.
  4. Connect the MAF/IAT sensor harness connector.
