Keyless Entry Schematics
Keyless Entry Schematics

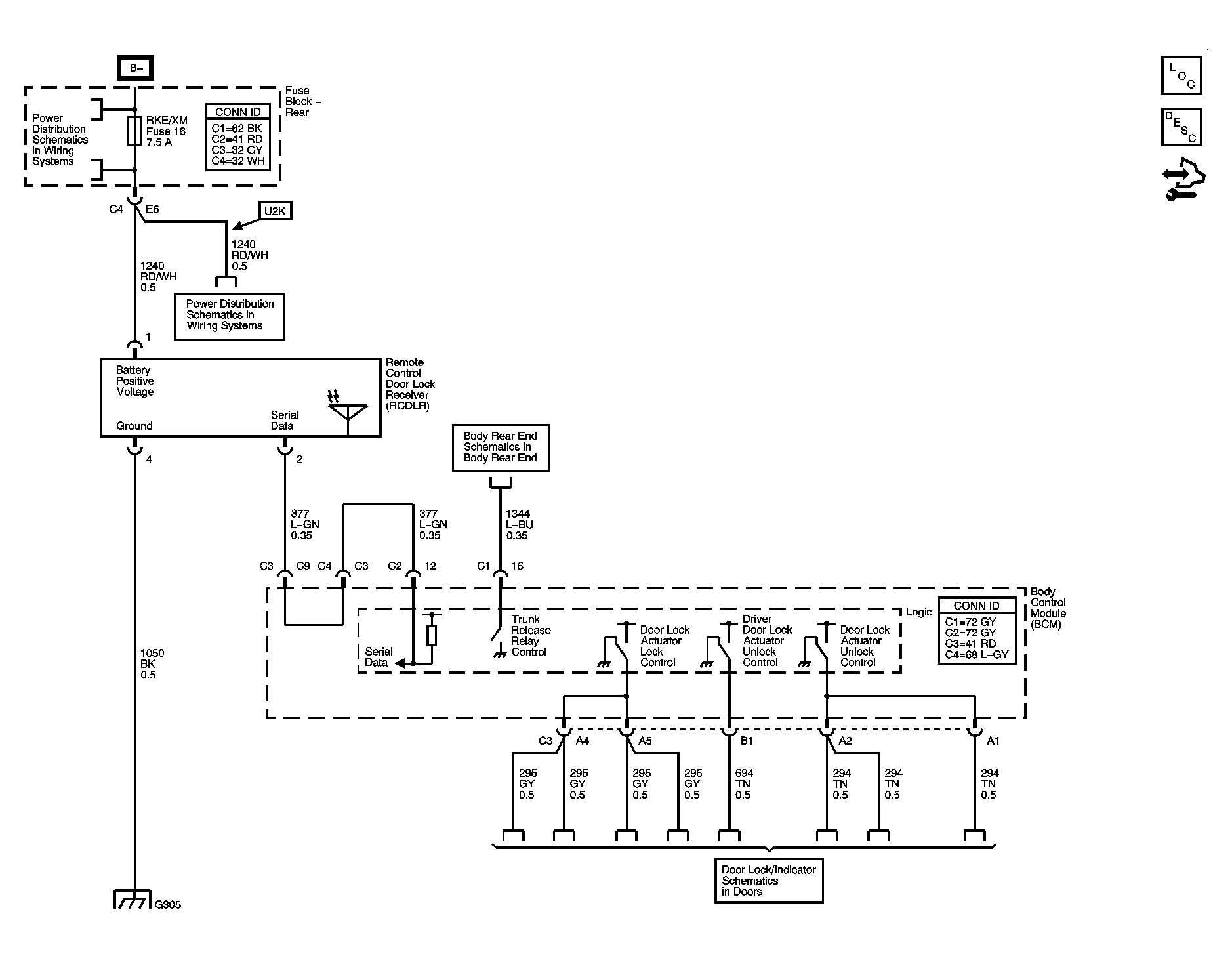

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
