Body Control System Schematics

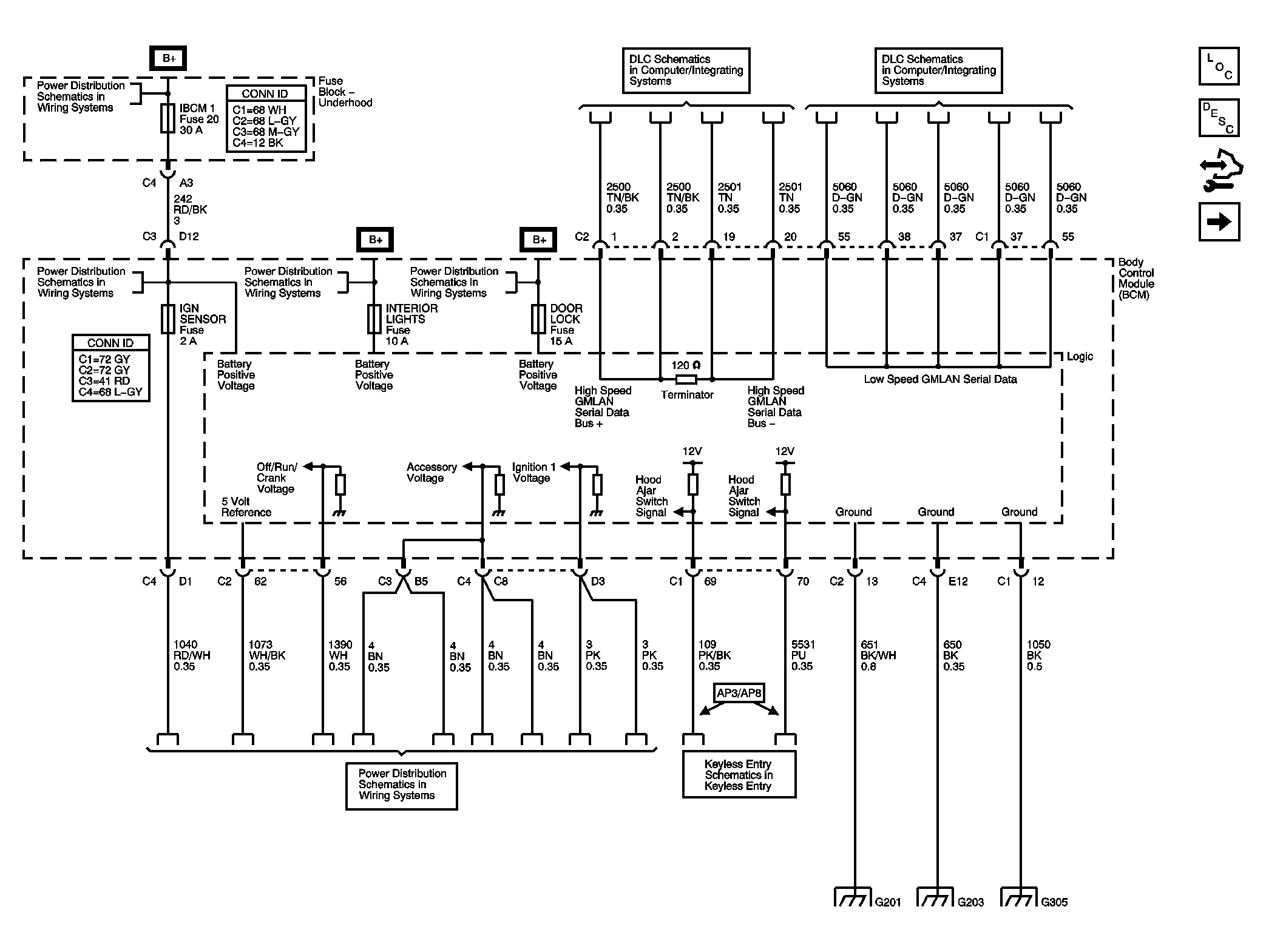

Fig 1: Power, Ground, and DLC
GM1657613Courtesy of GENERAL MOTORS CORP.

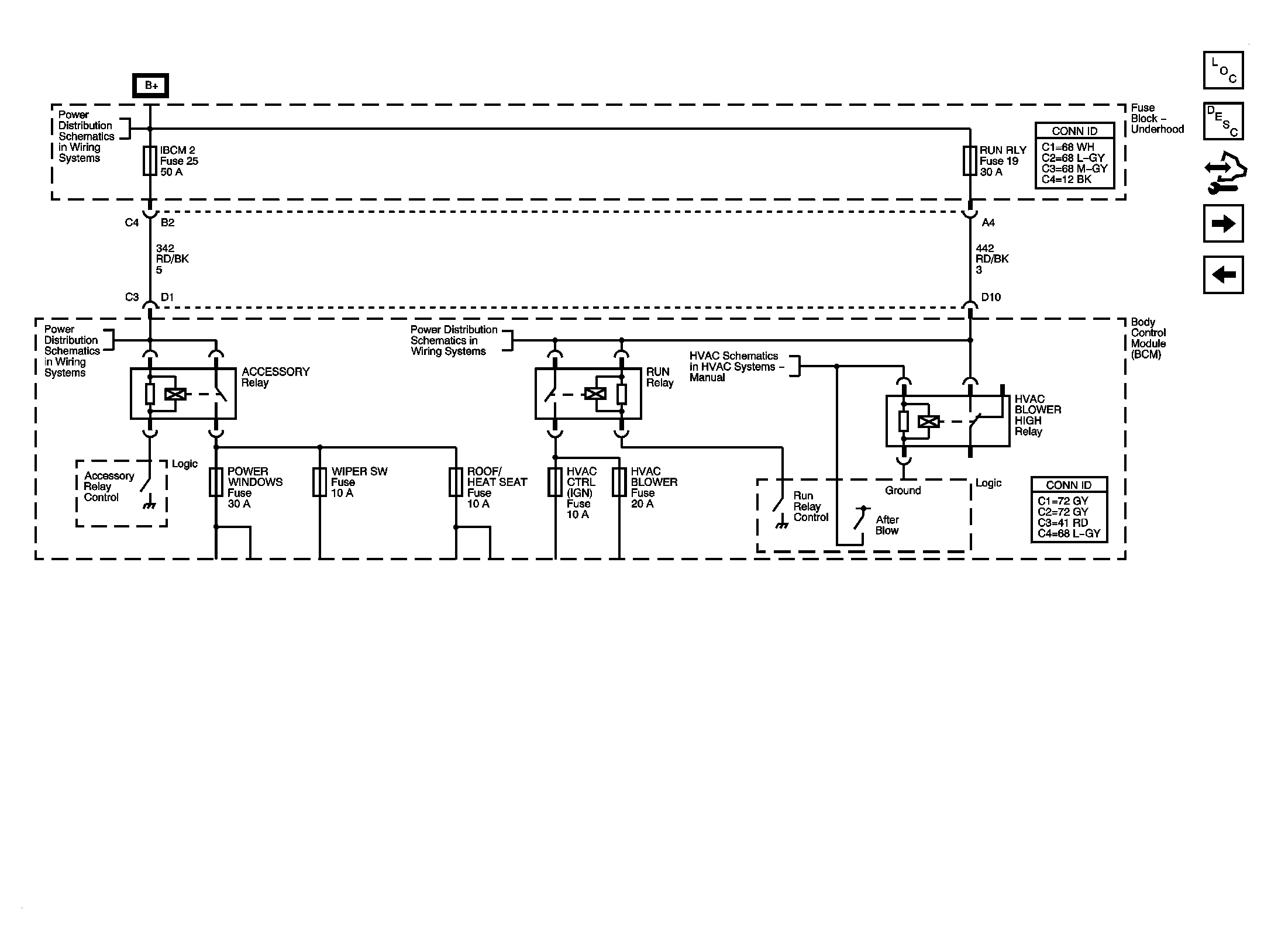

Fig 2: ACCESSORY, HVAC BLOWER HIGH and RUN Relays
GM1657614Courtesy of GENERAL MOTORS CORP.

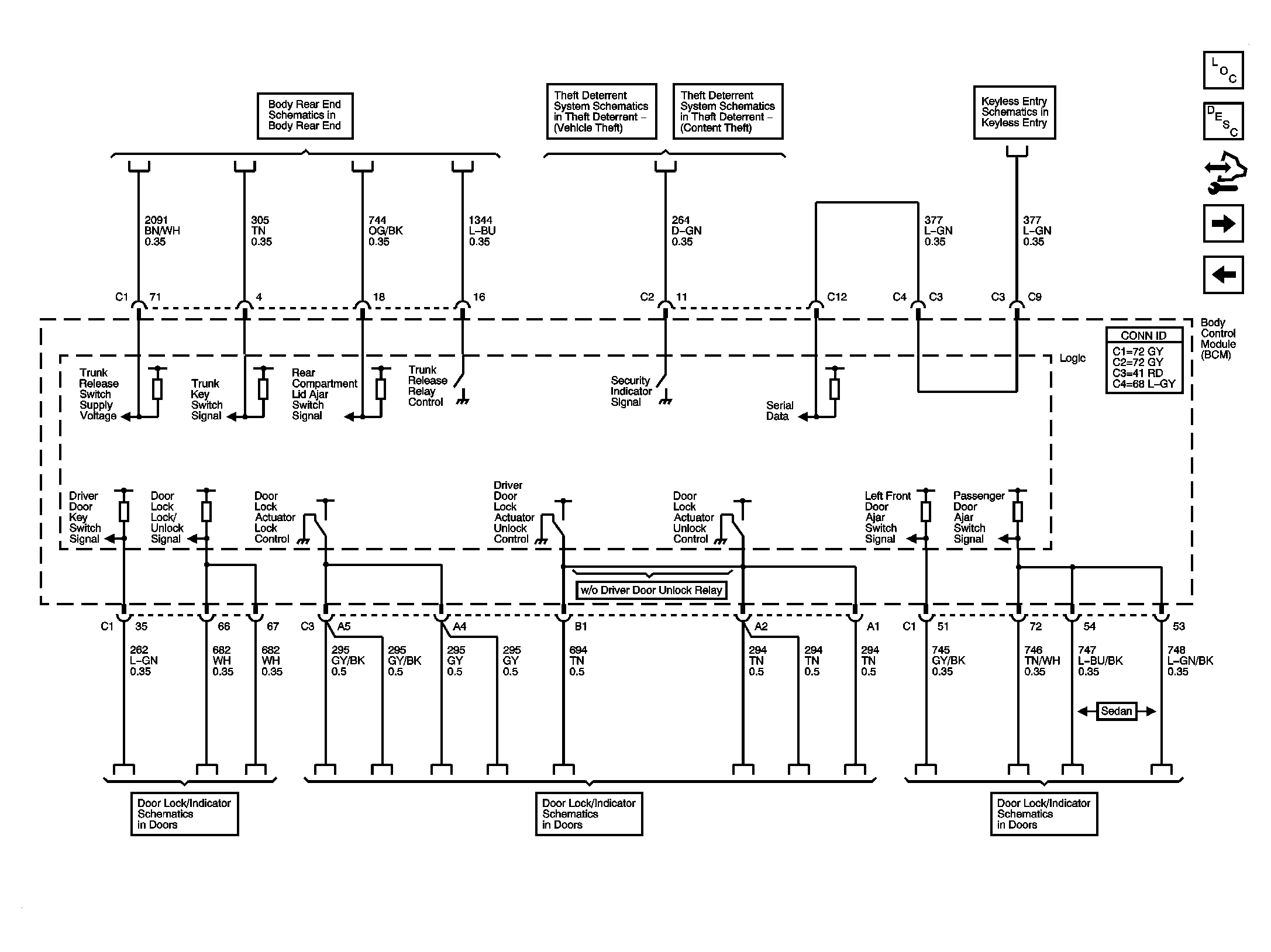

Fig 3: Controlled/Monitored Subsystem References - (1 of 3)
GM1657615Courtesy of GENERAL MOTORS CORP.

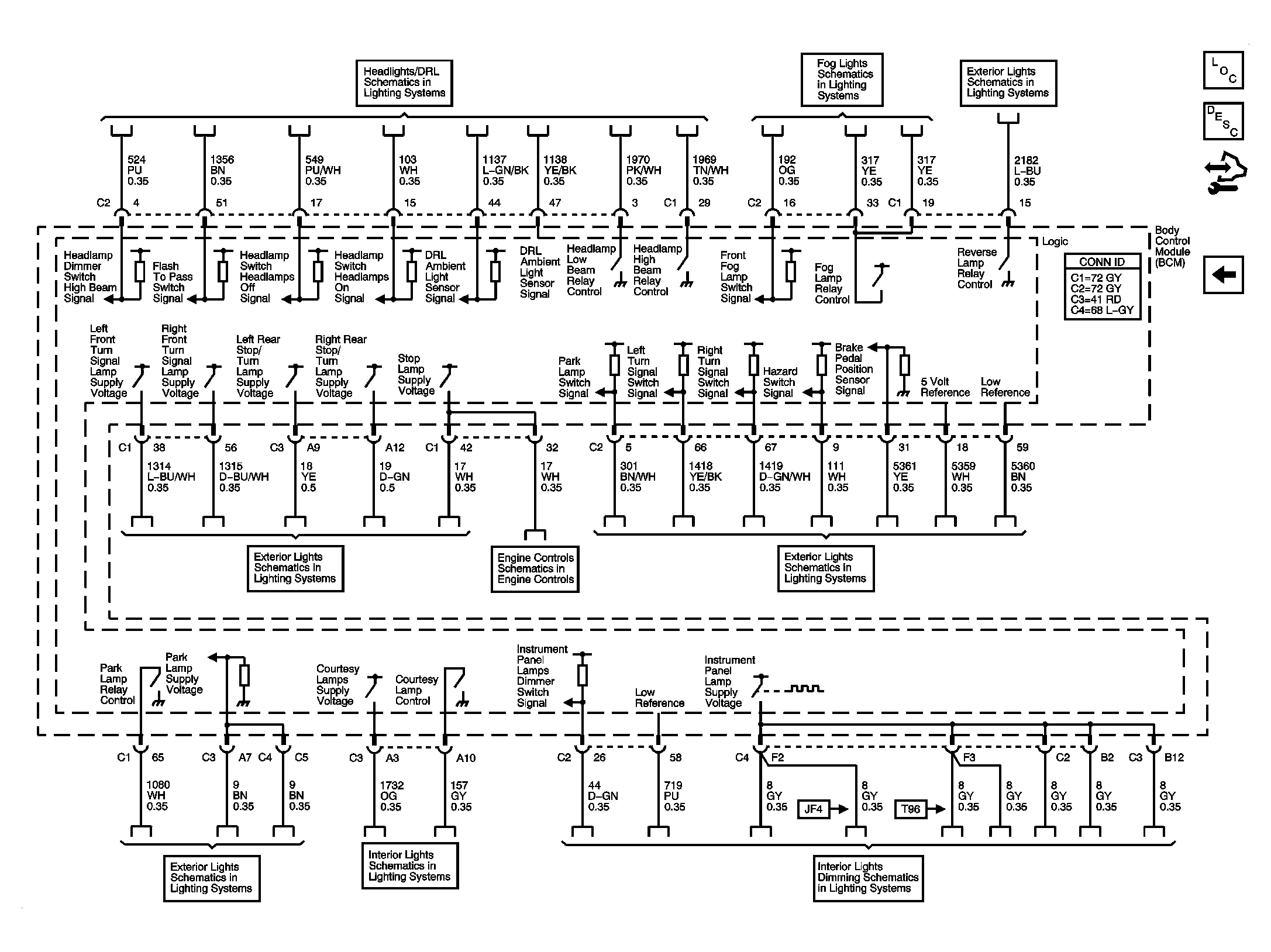

Fig 4: Controlled/Monitored Subsystem References - (2 of 3)
GM1657617Courtesy of GENERAL MOTORS CORP.

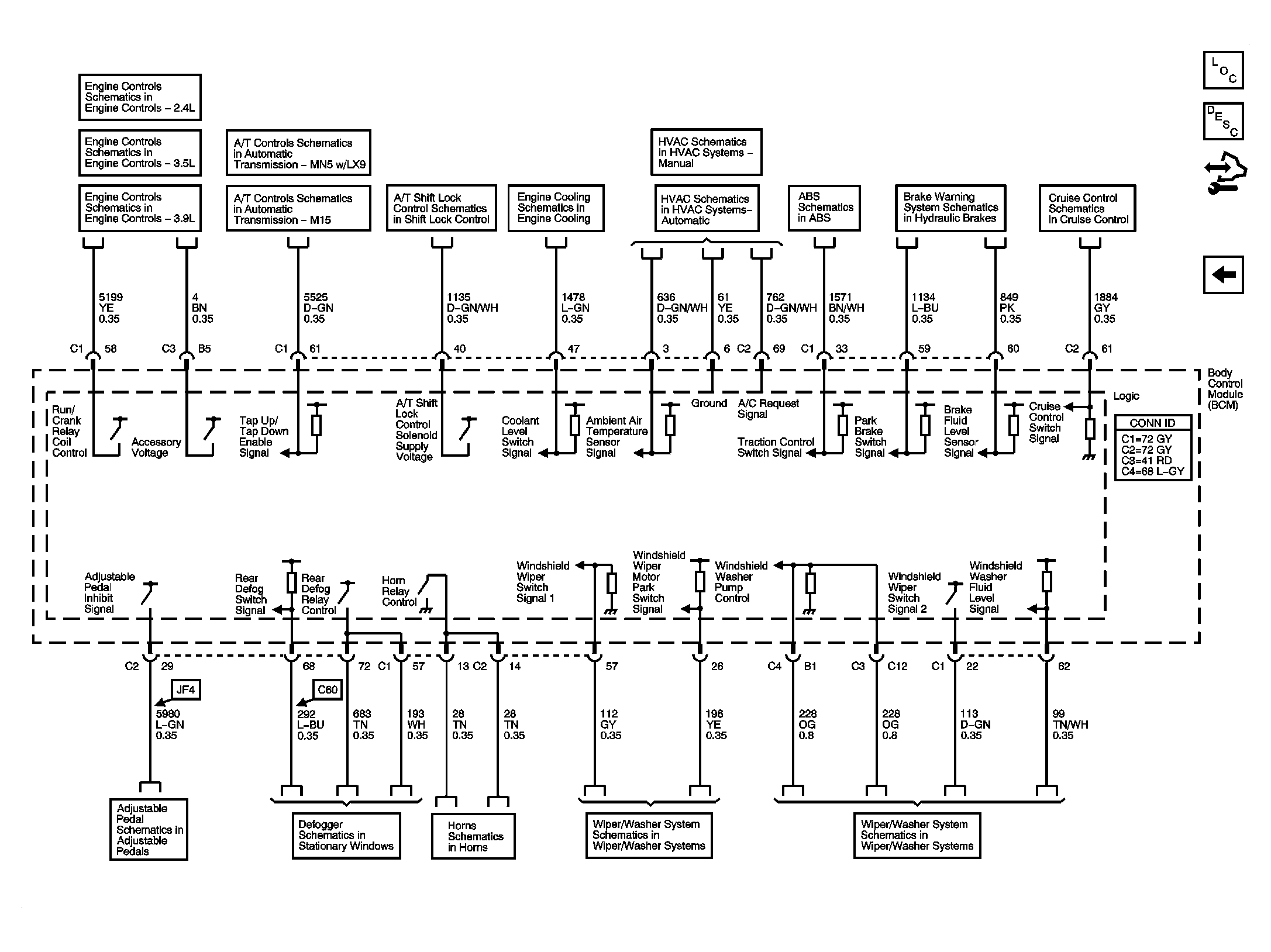

Fig 5: Controlled/Monitored Subsystem References - (3 of 3)
GM1657618Courtesy of GENERAL MOTORS CORP.
