Engine Controls Schematics

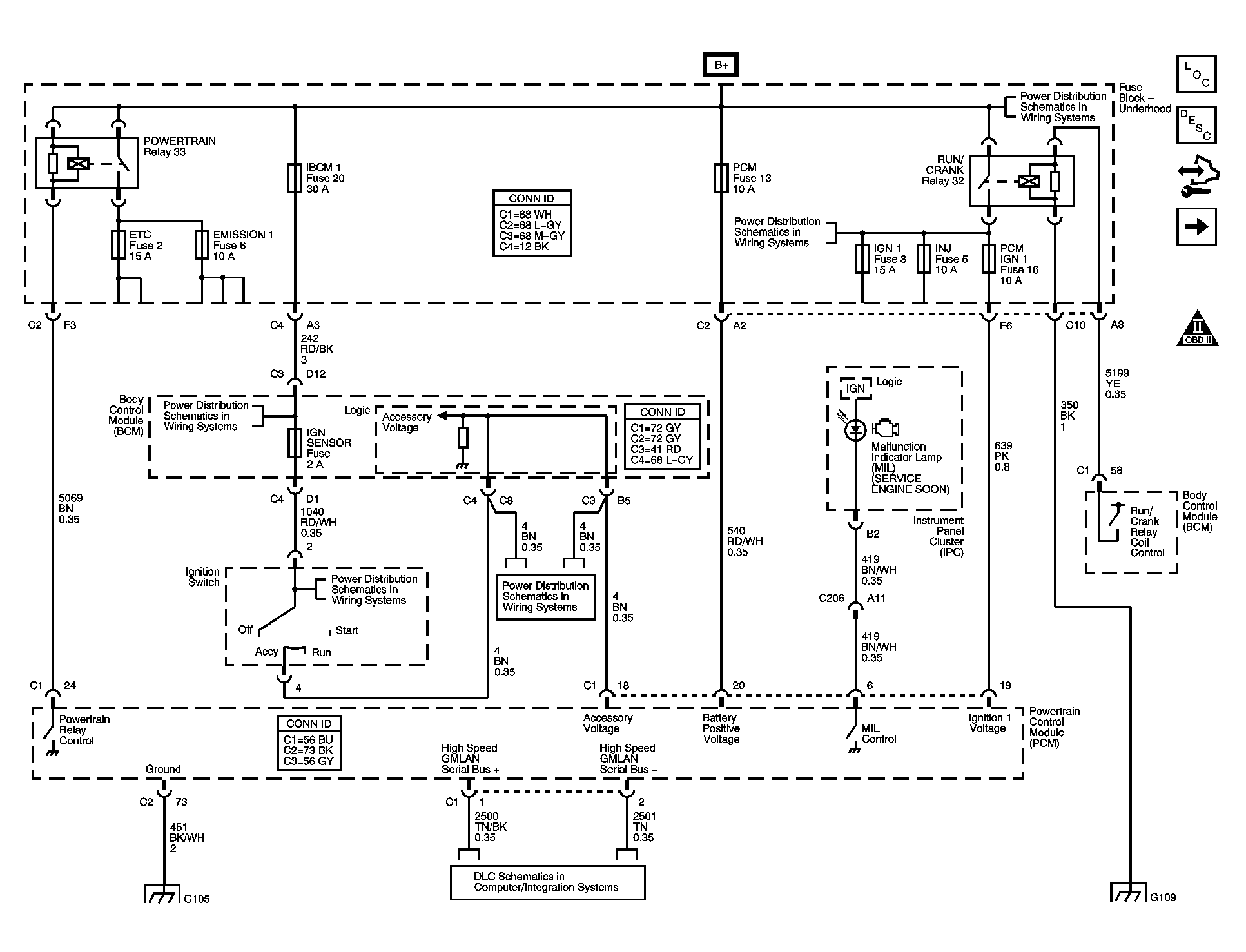

Fig 1: DLC, Ground, MIL and Power
GM1615865Courtesy of GENERAL MOTORS CORP.

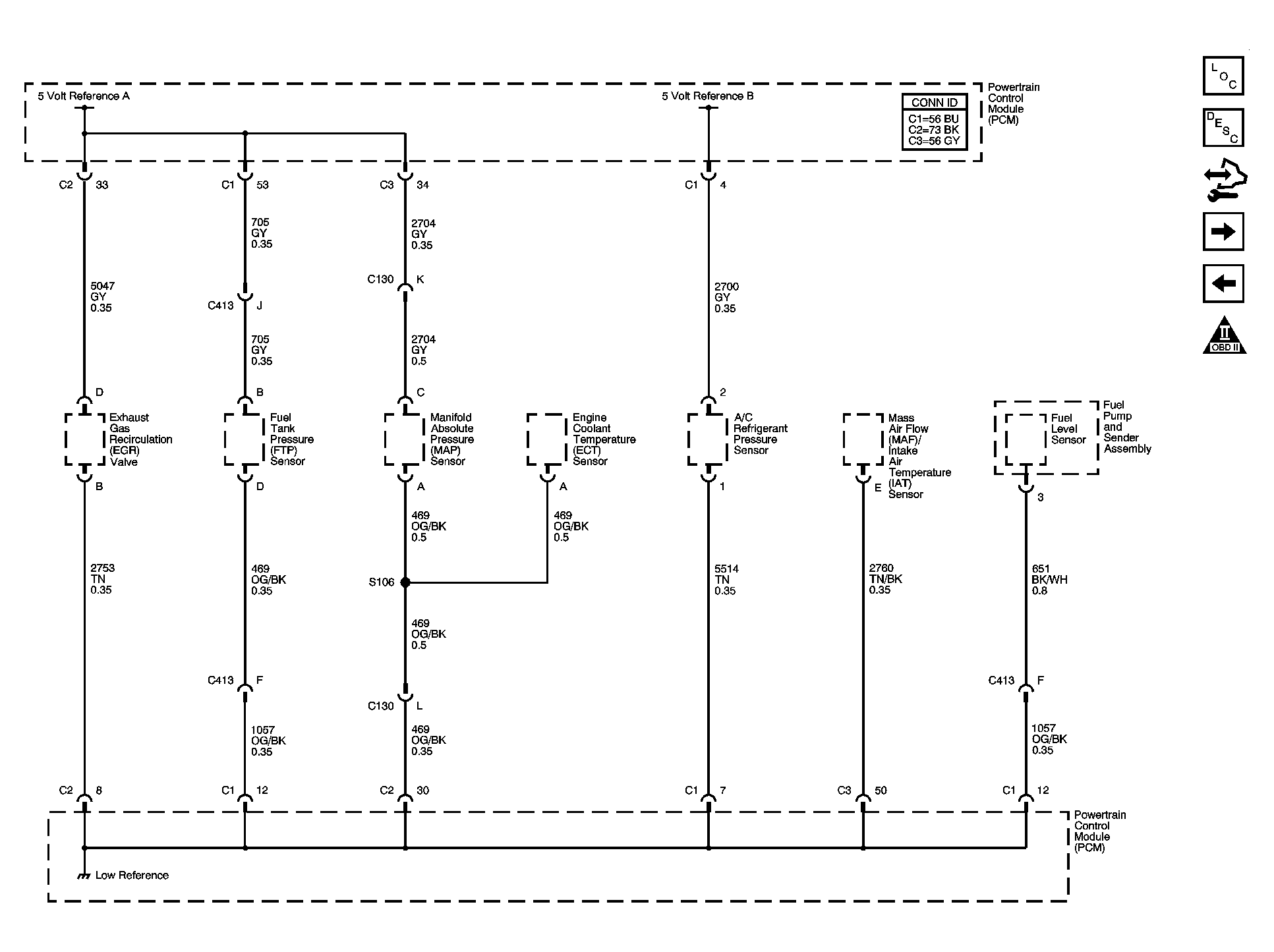

Fig 2: 5-Volt and Low References
GM1615868Courtesy of GENERAL MOTORS CORP.

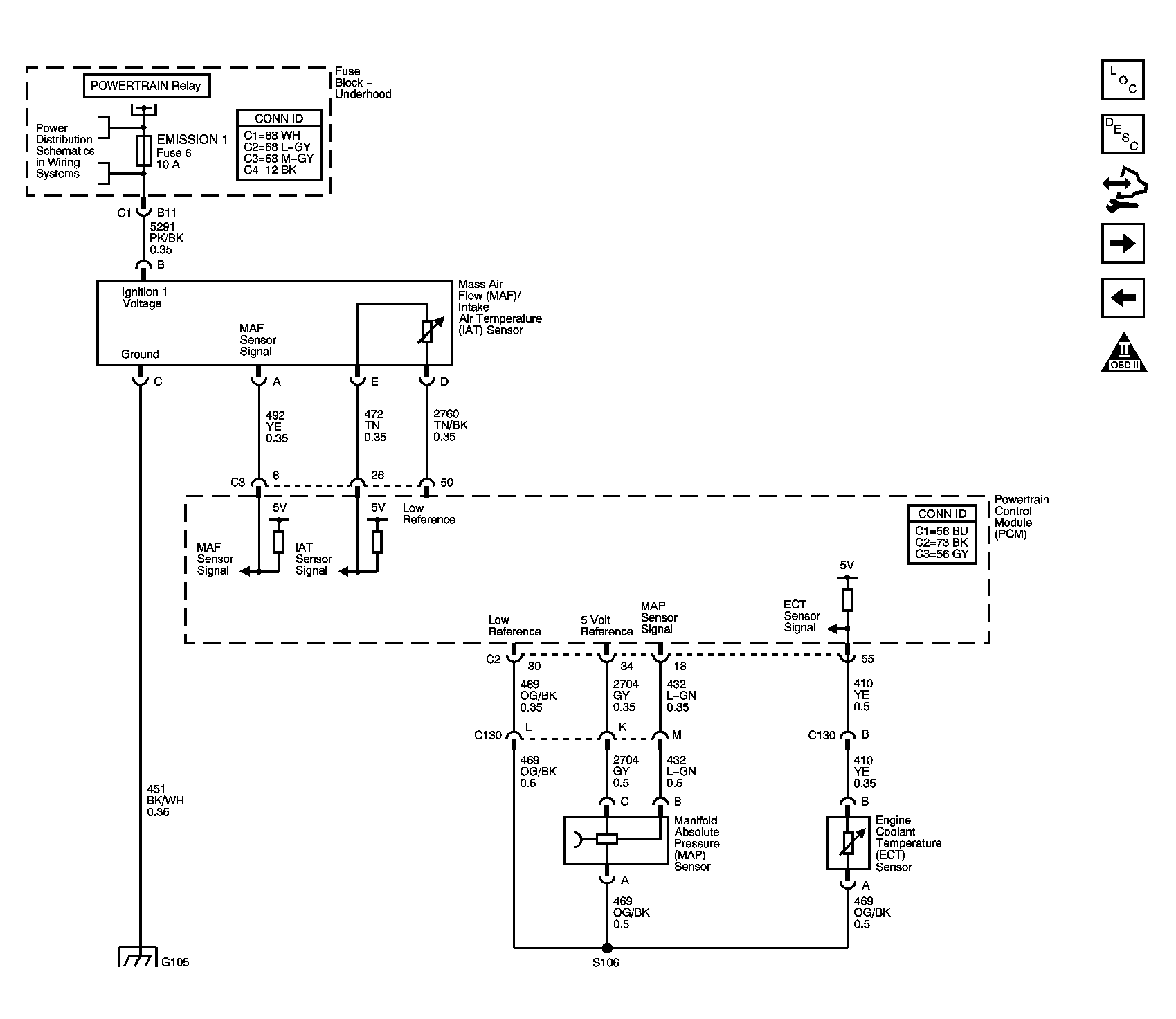

Fig 3: ECT, MAF and MAP Sensors
GM1615870Courtesy of GENERAL MOTORS CORP.

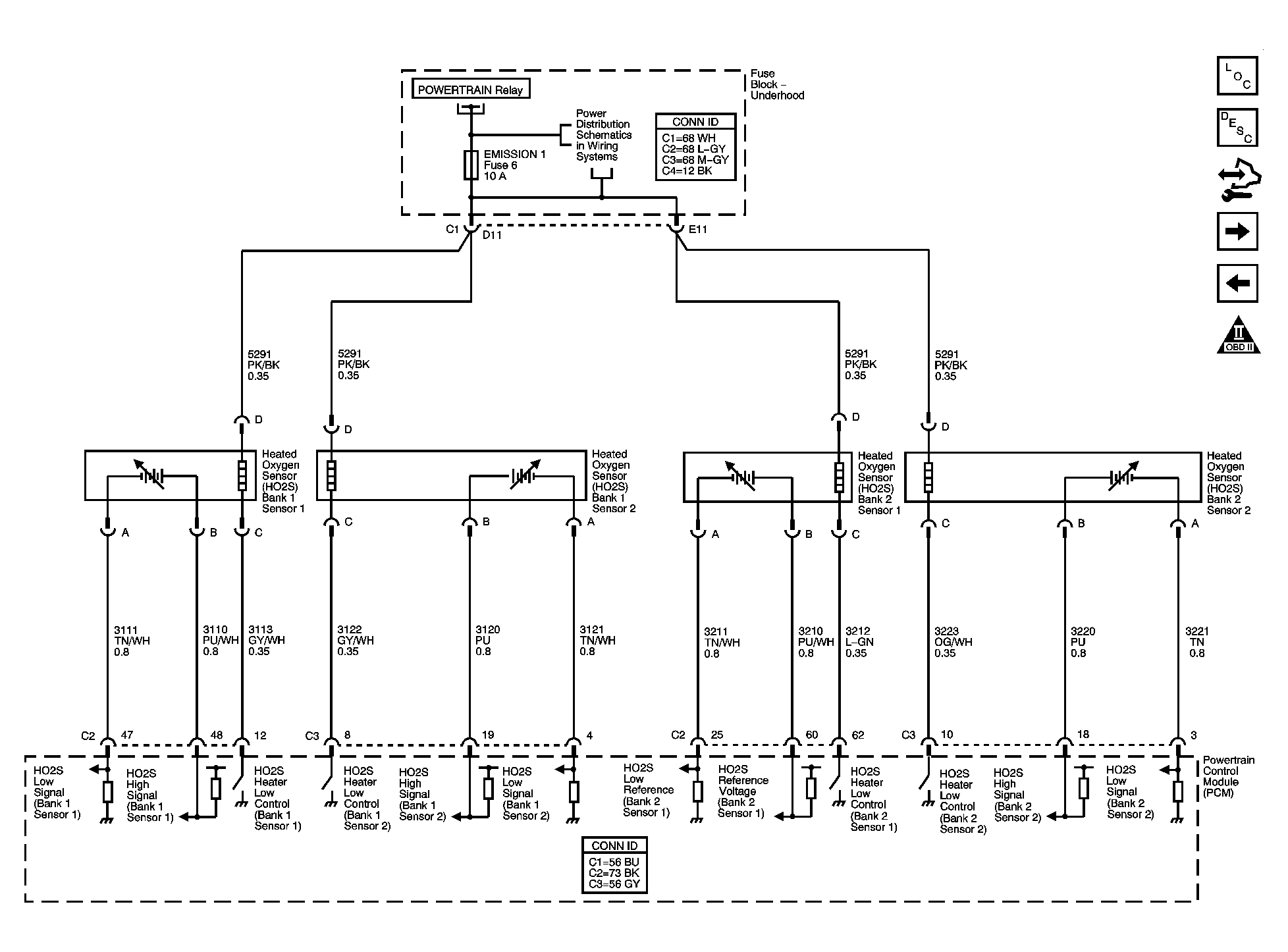

Fig 4: Heated Oxygen Sensors
GM1615873Courtesy of GENERAL MOTORS CORP.

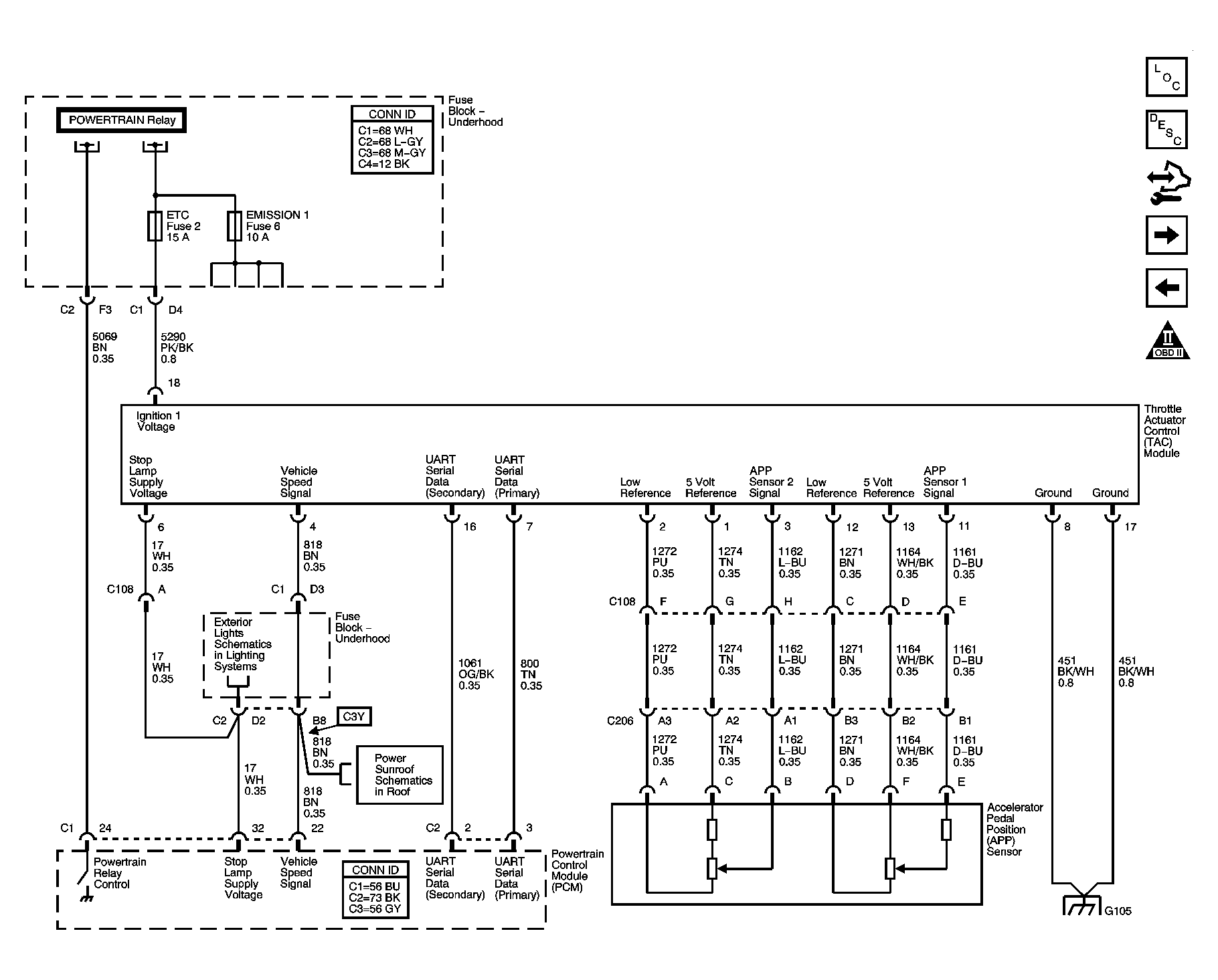

Fig 5: Electronic Throttle Controls
GM1615876Courtesy of GENERAL MOTORS CORP.

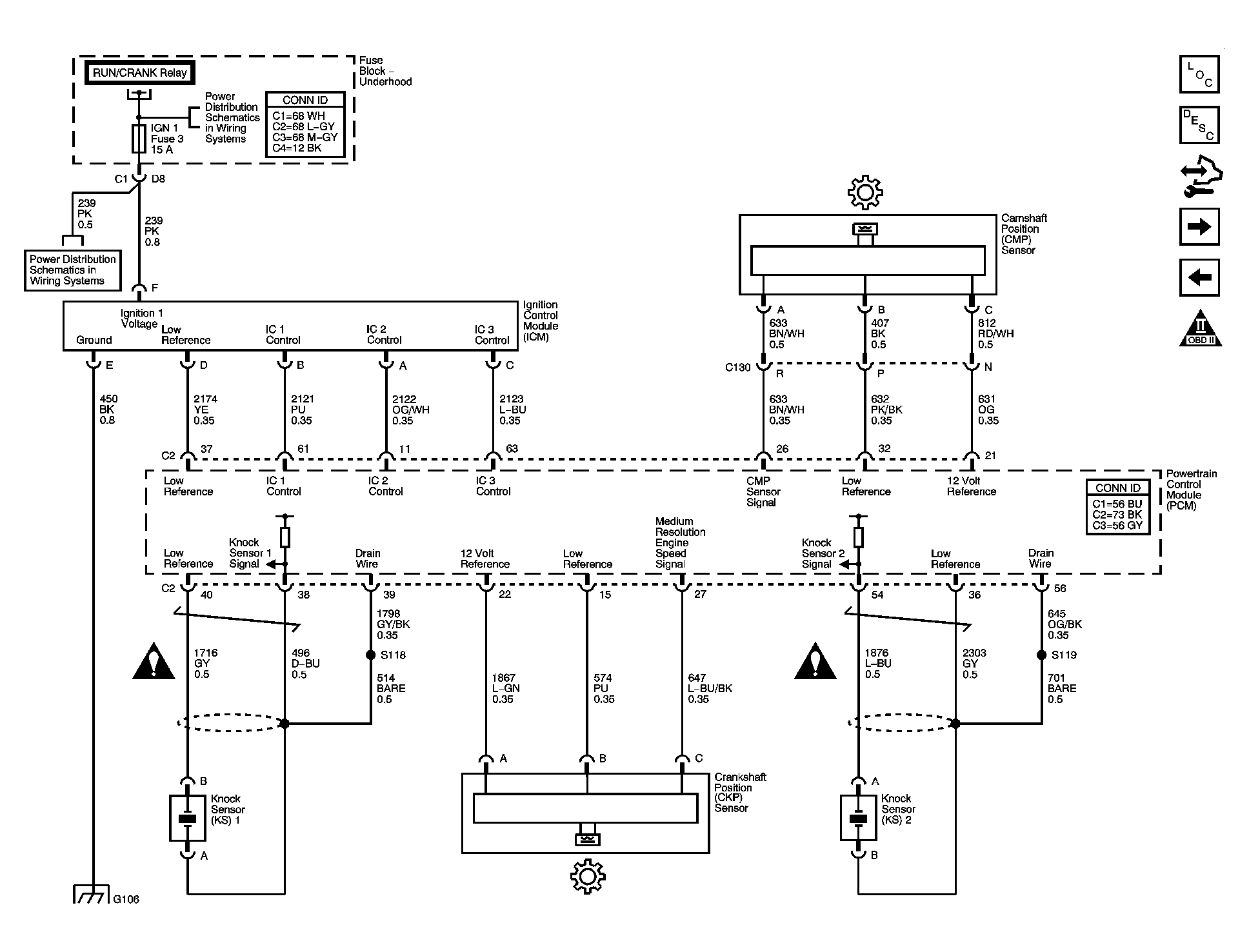

Fig 6: Ignition System
GM1615877Courtesy of GENERAL MOTORS CORP.

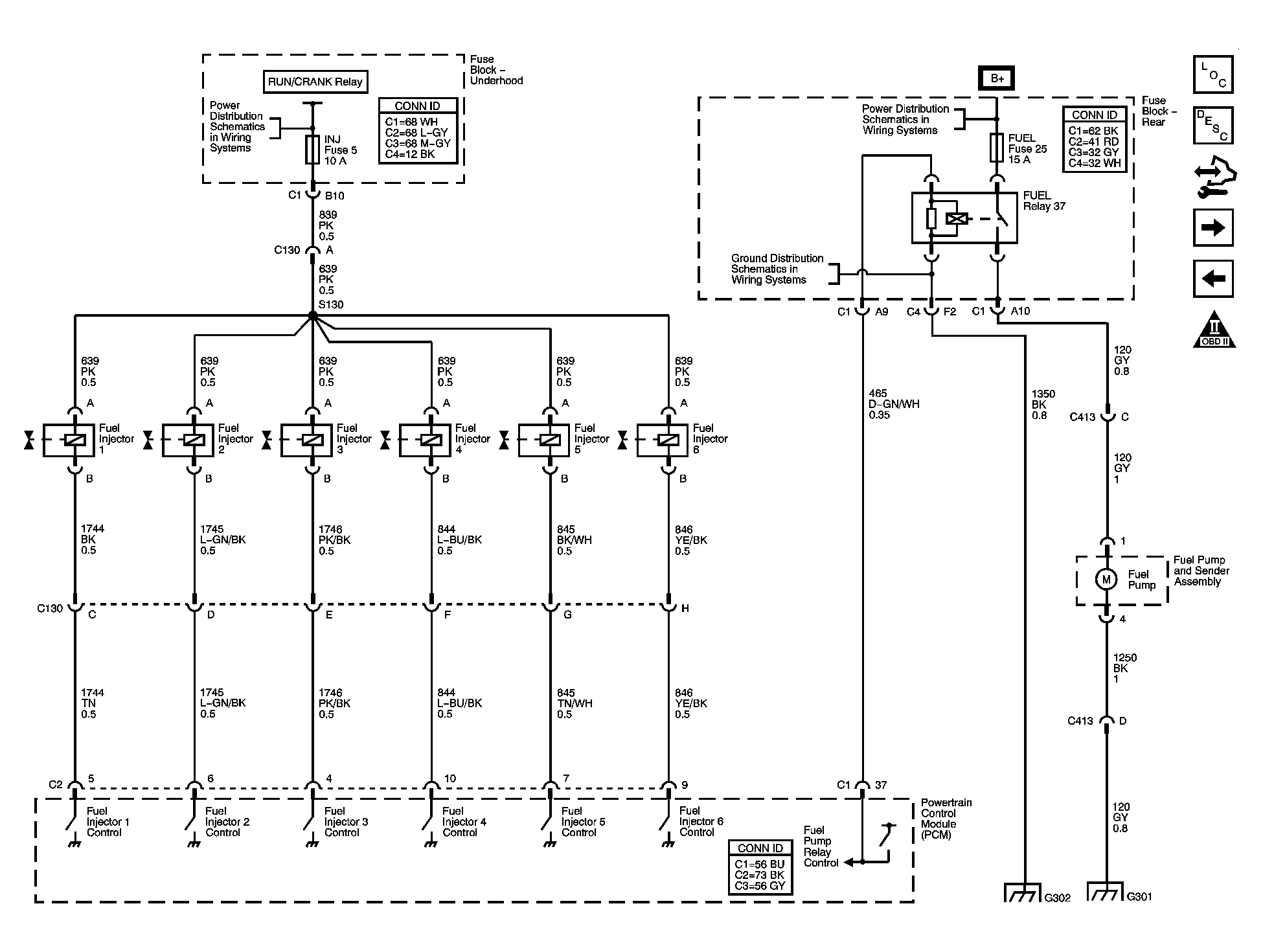

Fig 7: Fuel Injectors and Fuel Pump
GM1615878Courtesy of GENERAL MOTORS CORP.

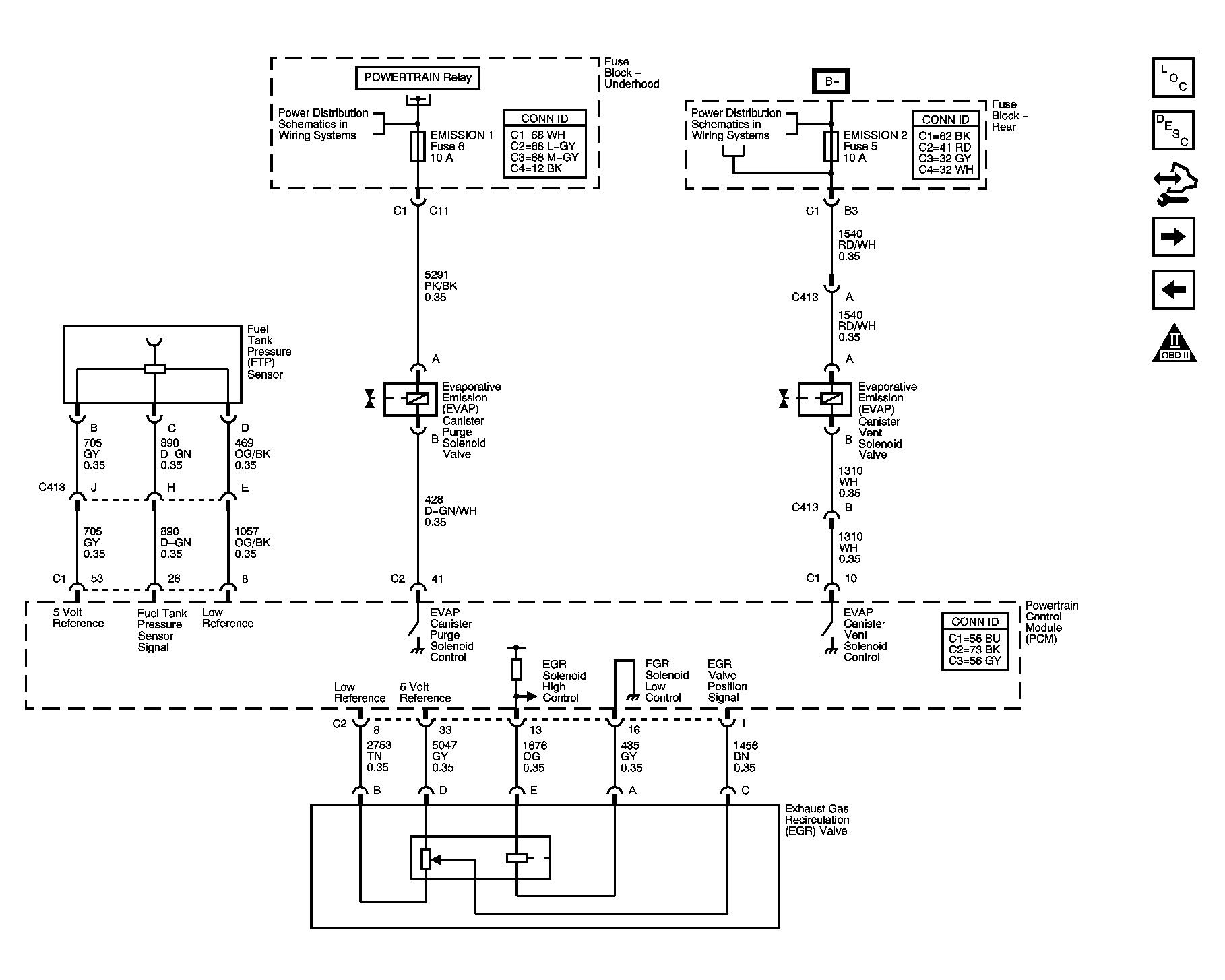

Fig 8: EGR, EVAP Controls and FTP Sensor
GM1615880Courtesy of GENERAL MOTORS CORP.

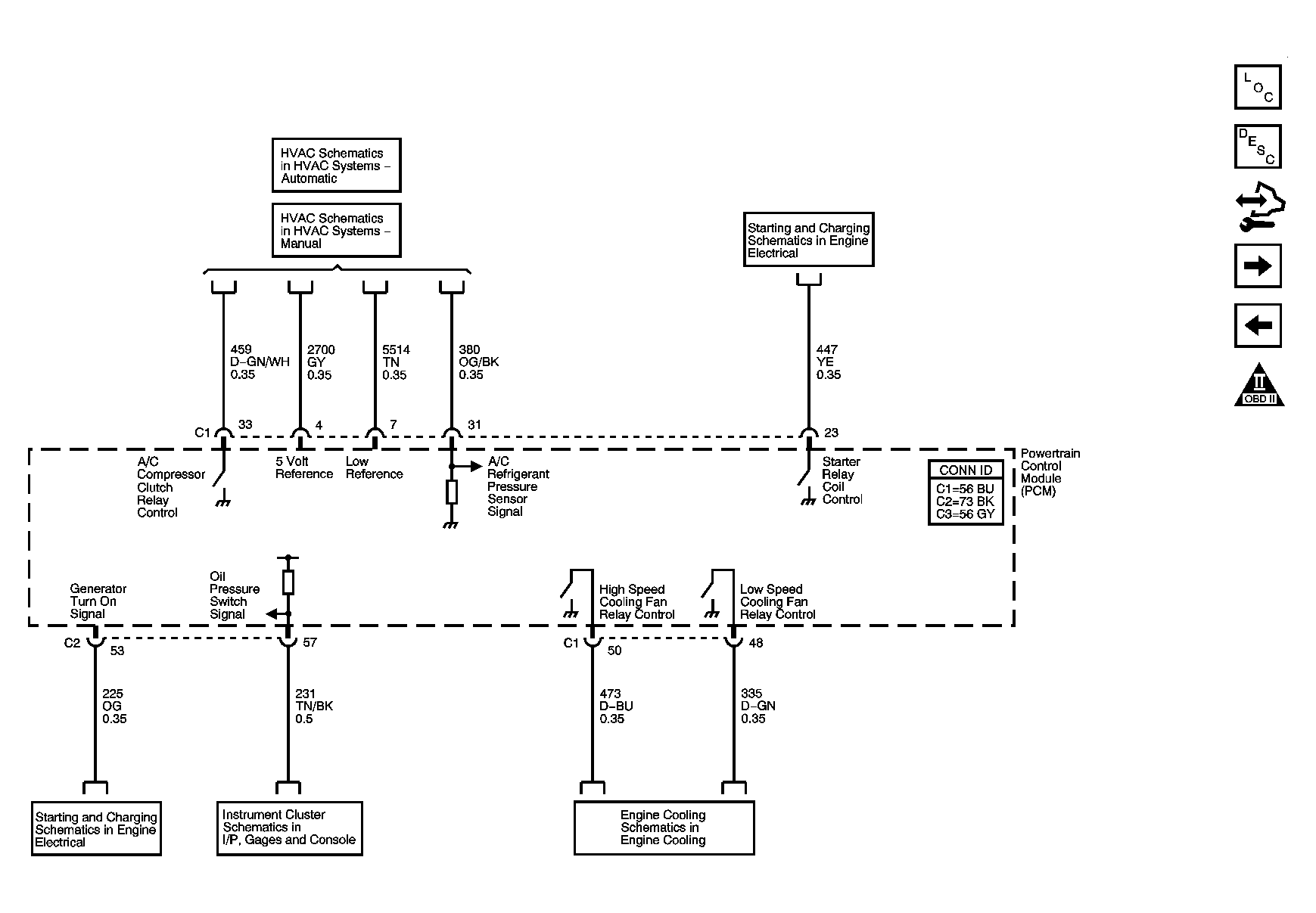

Fig 9: Controlled/Monitored Subsystem References
GM1615882Courtesy of GENERAL MOTORS CORP.

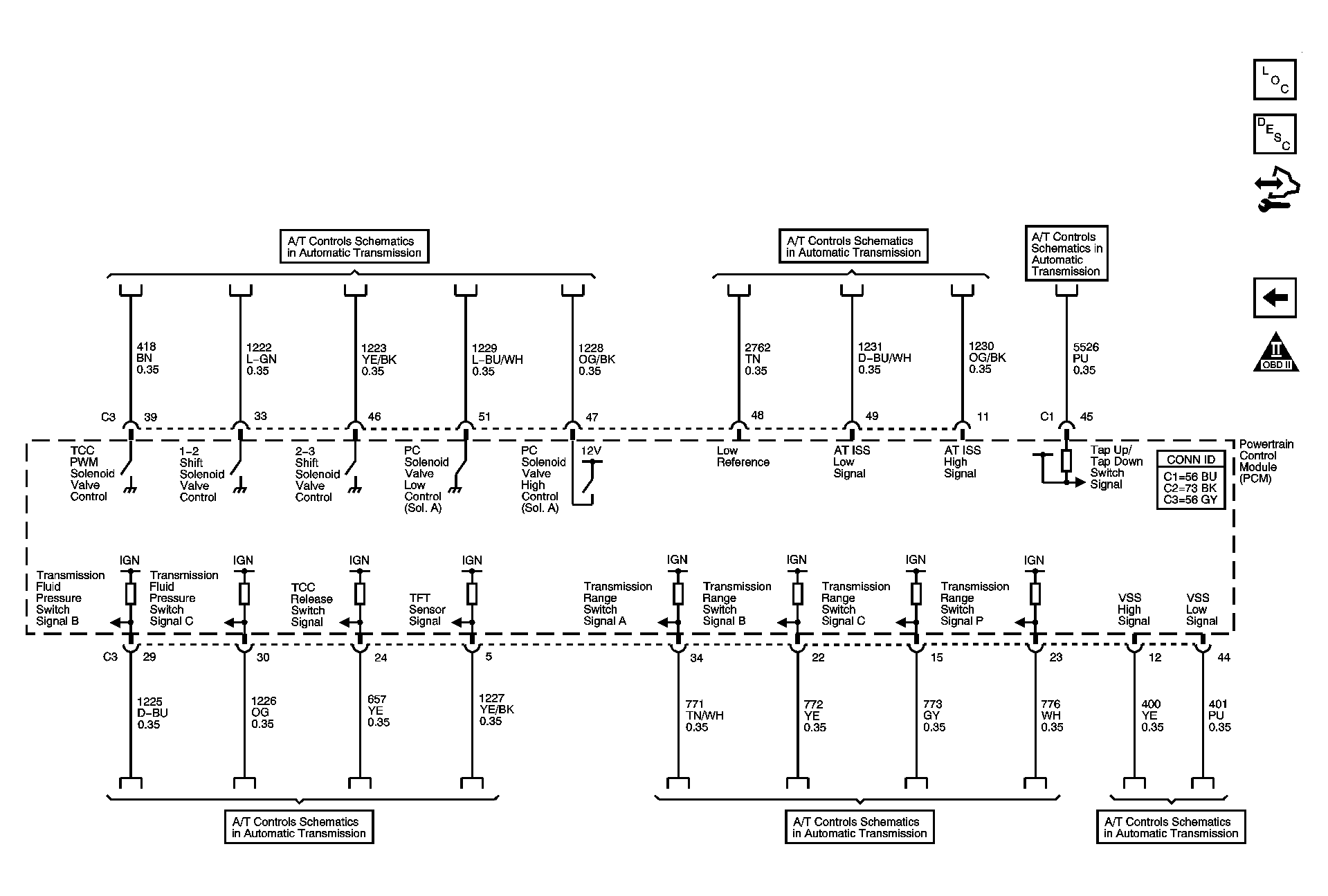

Fig 10: Transmission Control References
GM1615884Courtesy of GENERAL MOTORS CORP.
