Installation Procedure

    Fig 1: Identifying CMP Sensor
    GM1578483Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Inspect the CMP sensor for damage, replace as necessary.
  1. Lubricate the CMP sensor O-ring seal with clean engine oil.
  2. Install the CMP sensor.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the CMP sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

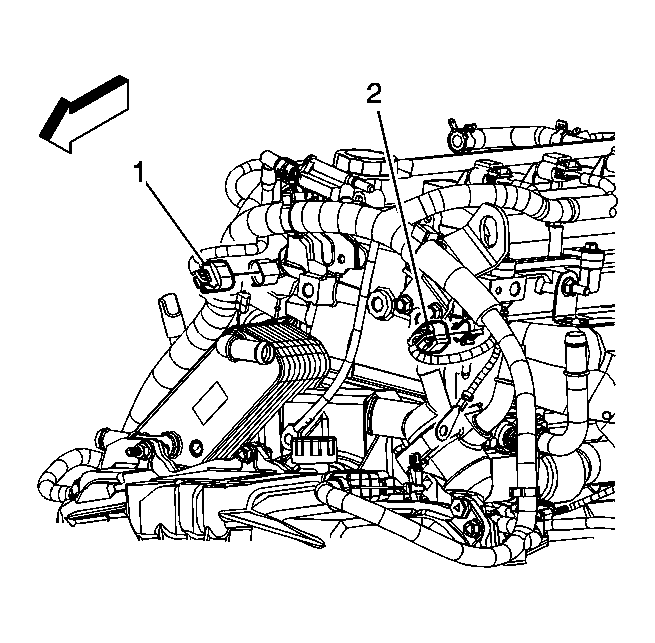

    4. Fig 2: Identifying Intake Camshaft Position (CMP) Sensor Electrical Connector
    GM1578481Courtesy of GENERAL MOTORS CORP.
  4. Connect the intake CMP sensor electrical connector (1).
  5. Install intake manifold cover. Refer to INTAKE MANIFOLD COVER REPLACEMENT .
