Removal Procedure

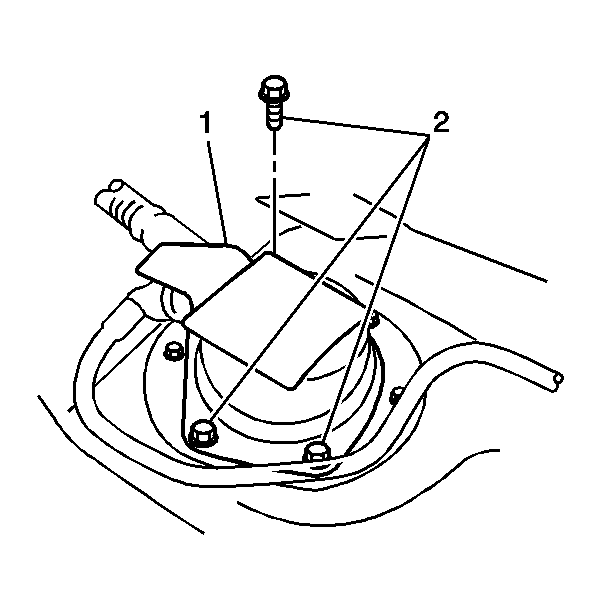

    Fig 1: FLVV Cover And Bolts
    GM851897Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel tank. Refer to Fuel Tank Replacement (FWD)  or Fuel Tank Replacement (AWD) .
  2. Remove the three bolts (2) and the FLVV cover (1) from the fuel tank.
  3. Disconnect the two EVAP lines from the FLVV.

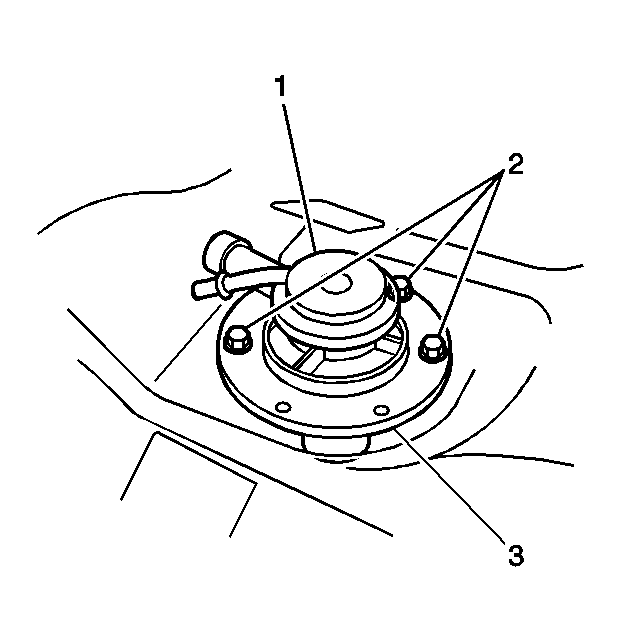

    4. Fig 2: FLVV, Gasket And Bolts (AWD)
    GM851898Courtesy of GENERAL MOTORS CORP.
  4. Remove the three bolts (2) and the FLVV (1) and gasket (3) from the fuel tank.
