Ground Distribution Schematics

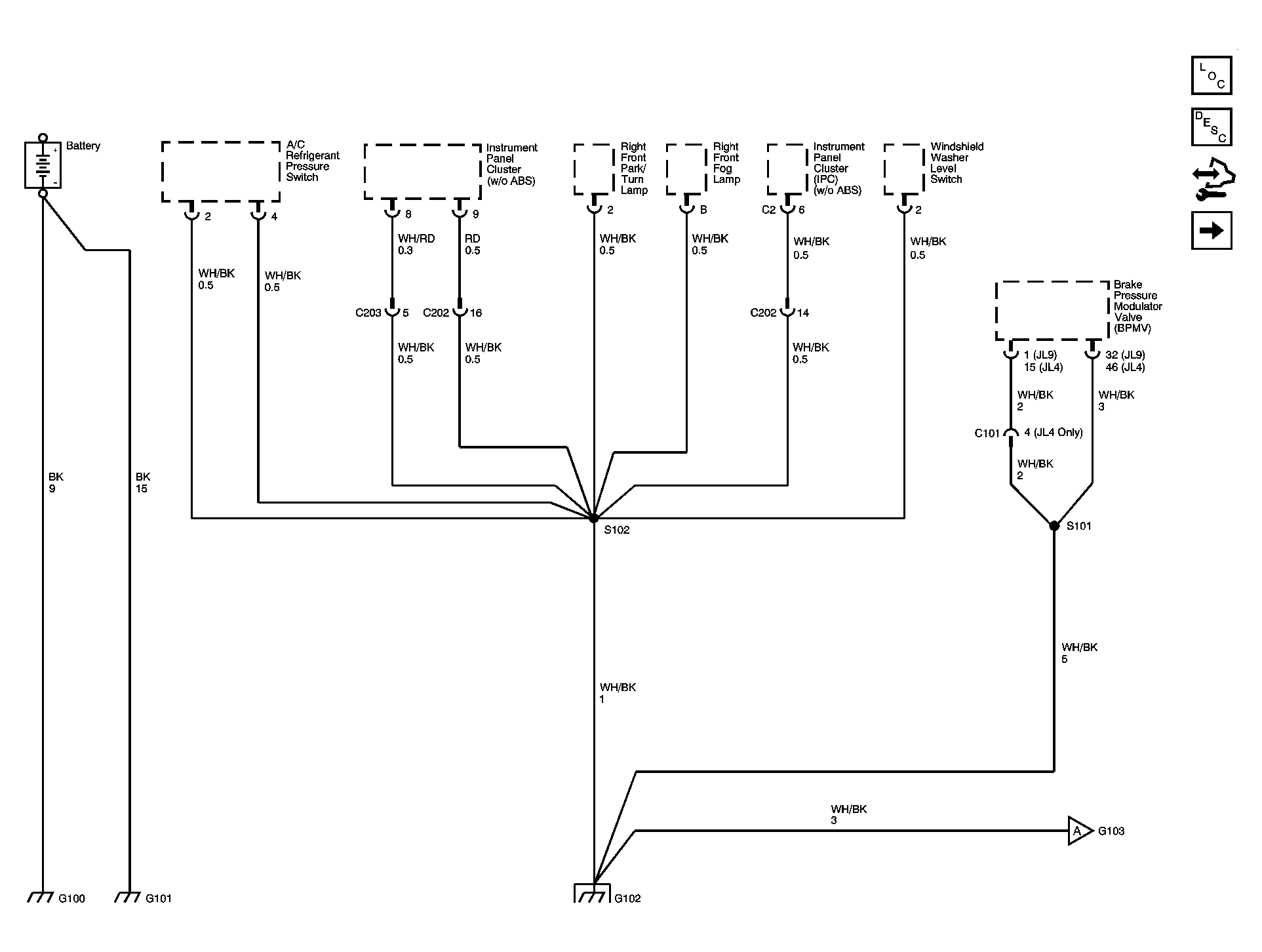

Fig 1: G100, G101 and G102 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: S103 and G103 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

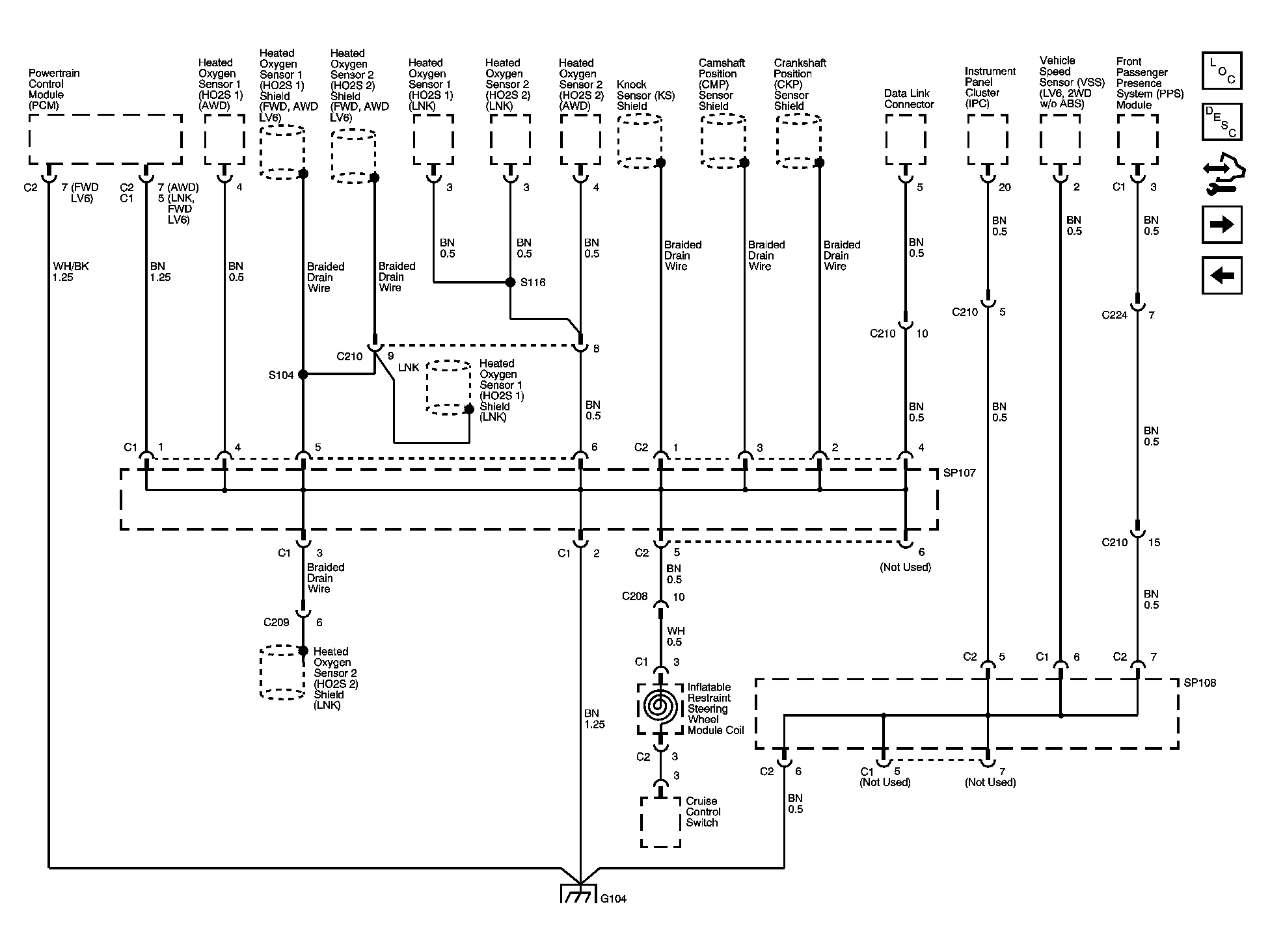

Fig 3: SP107, SP108 and G104 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

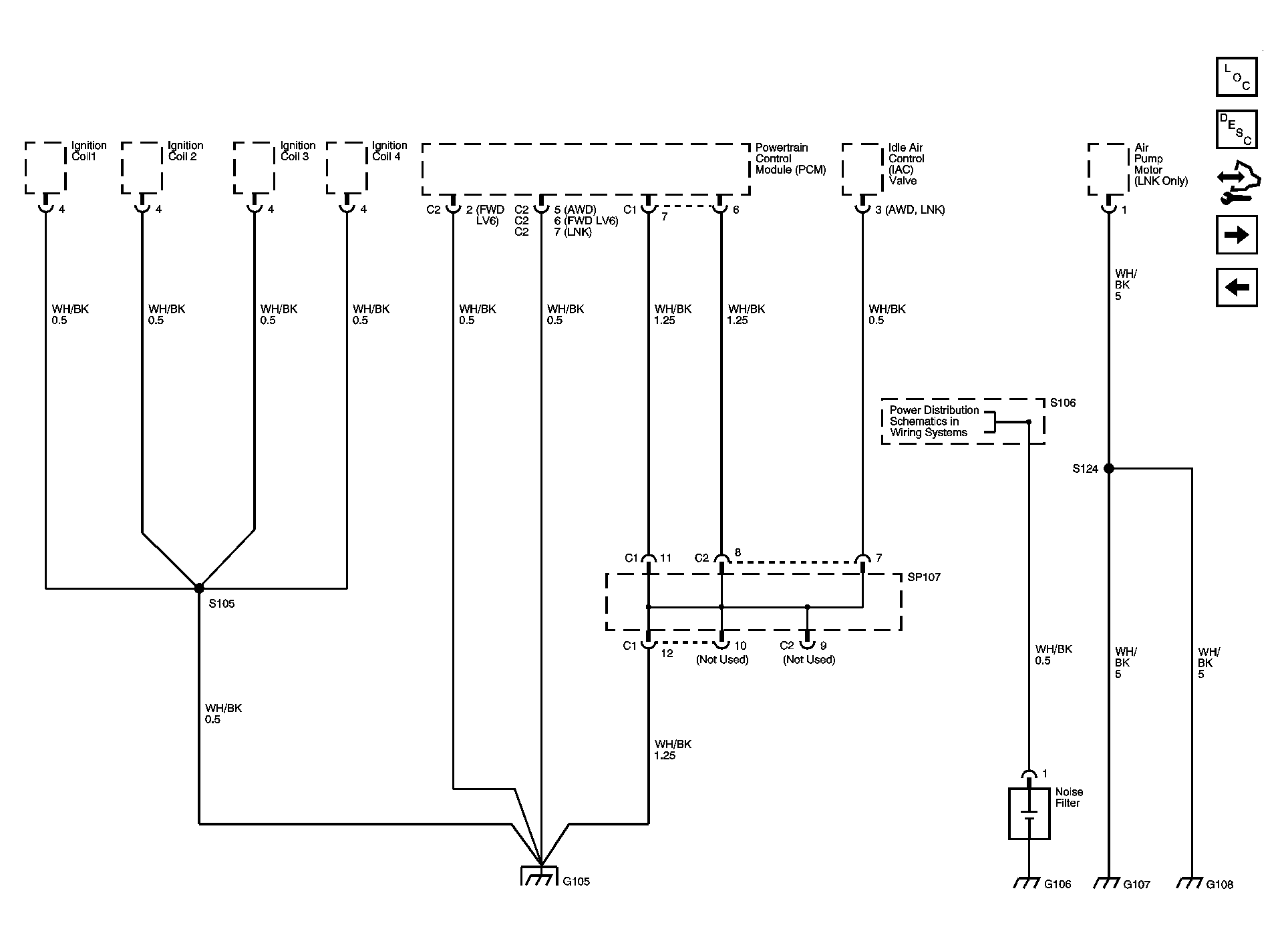

Fig 4: S105, G105, G106, G107 and G108 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

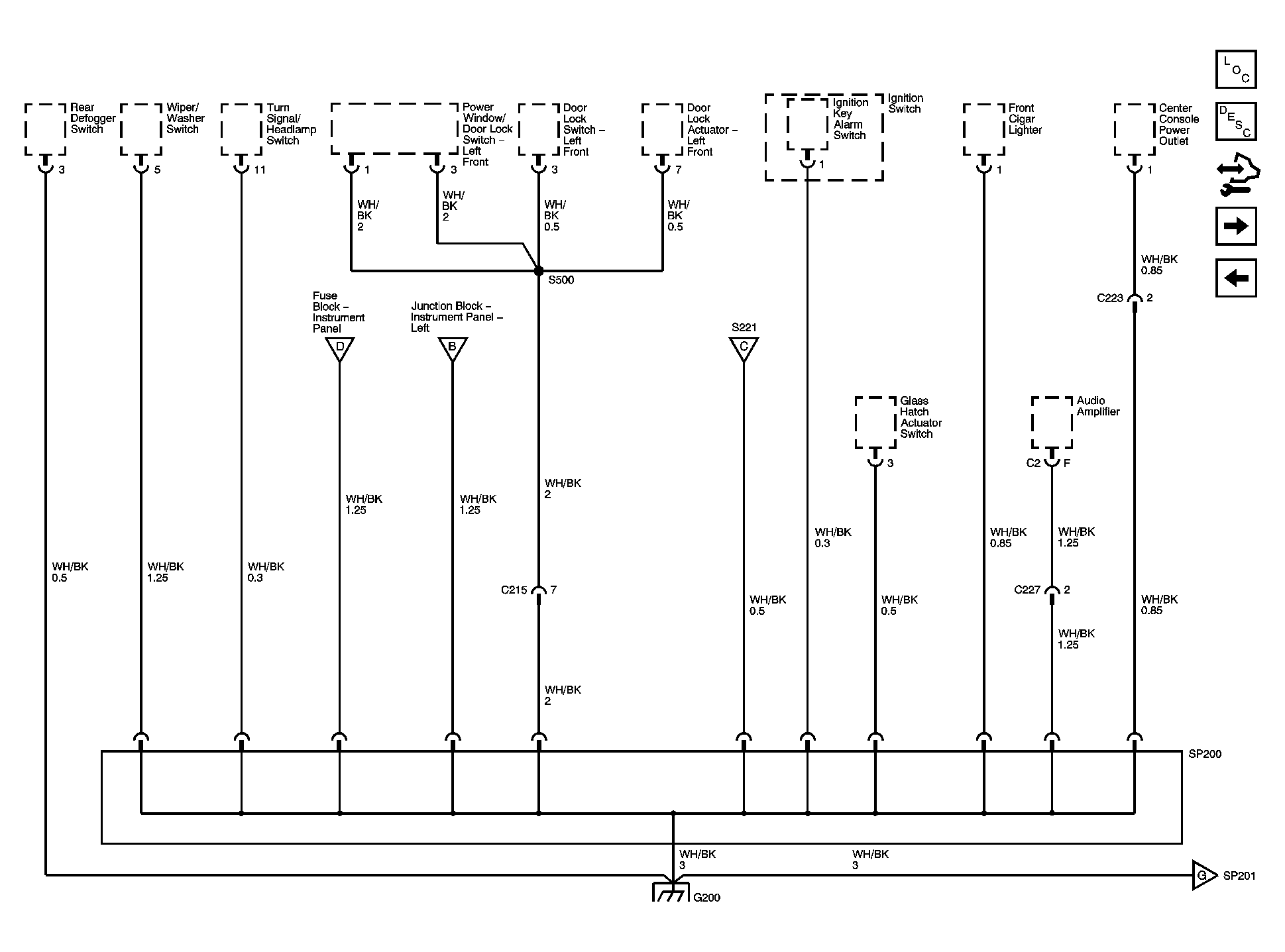

Fig 5: SP200 and G200 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

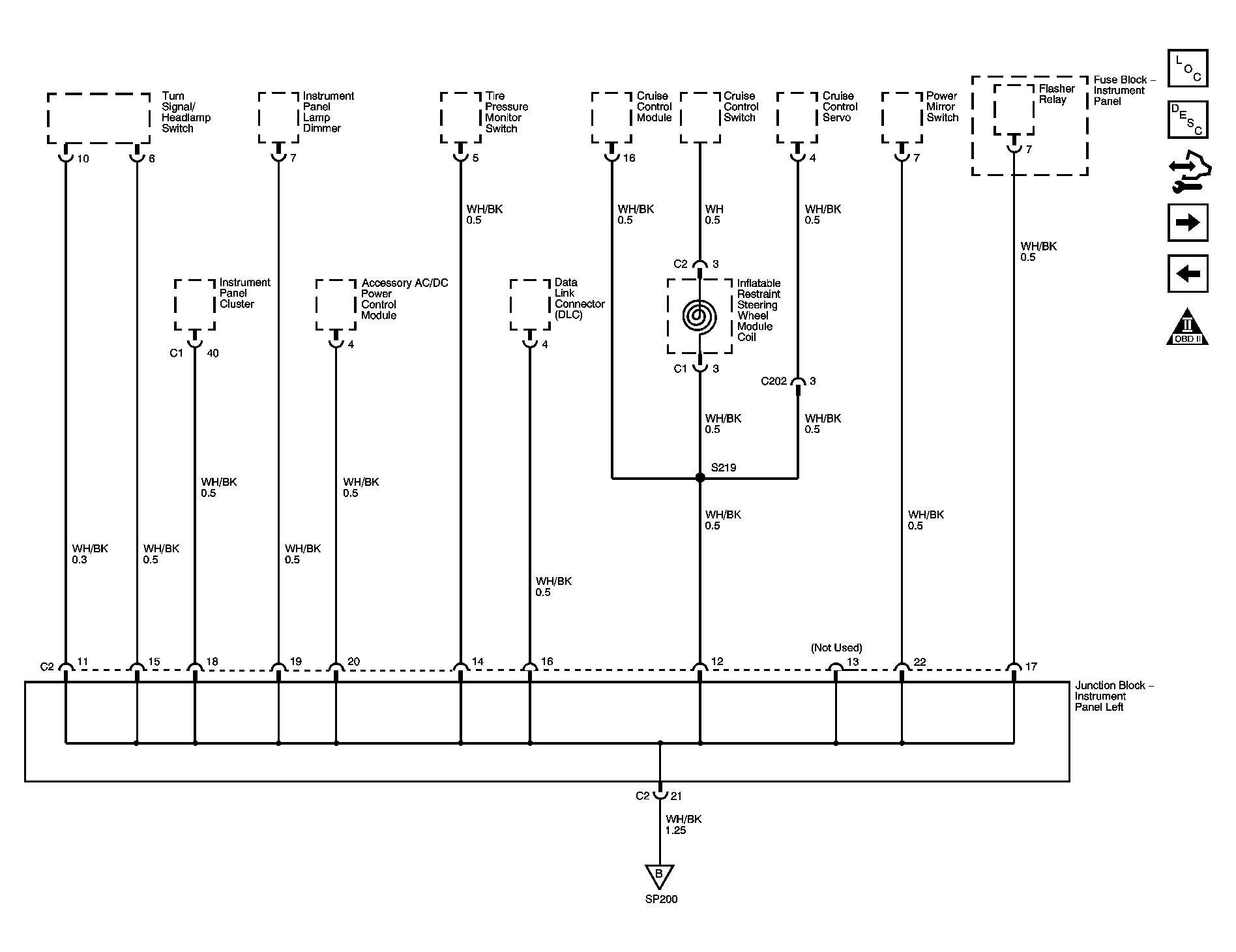

Fig 6: Junction Block - Instrument Panel Left Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: S221 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Fuse Block - Instrument Panel Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

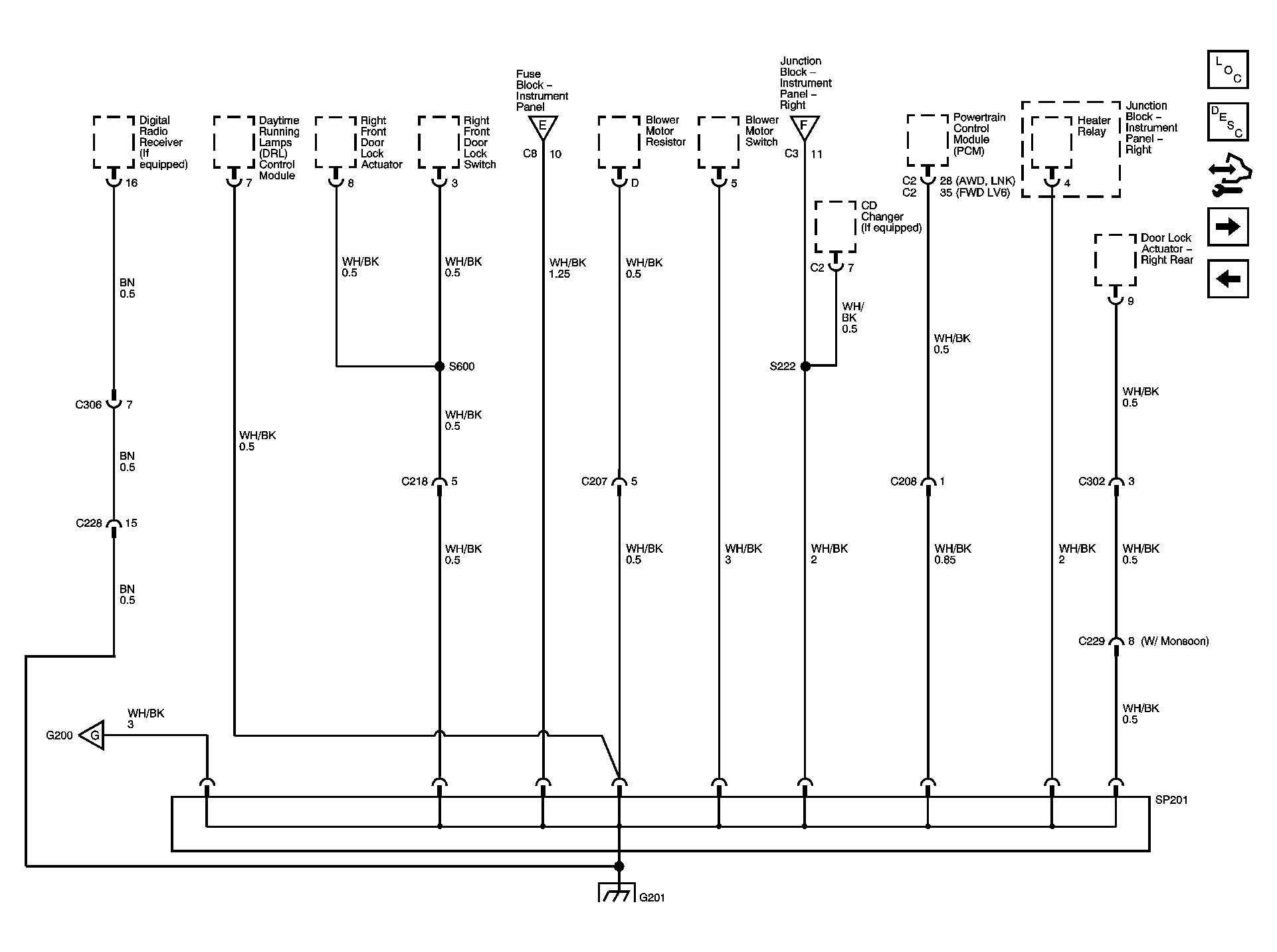

Fig 9: SP201 and G201 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

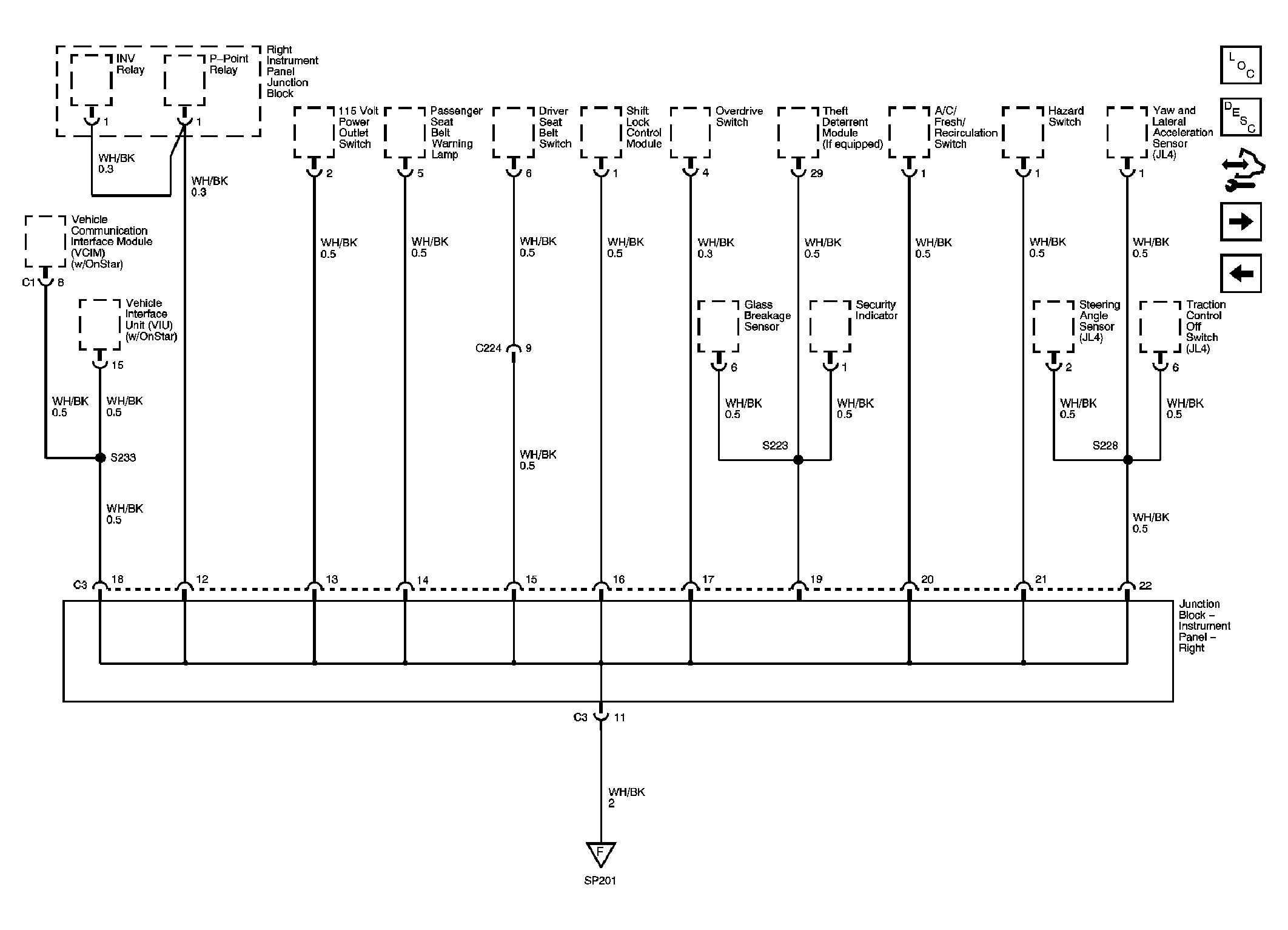

Fig 10: Junction Block - Instrument Panel Right Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 11: G202, G300, G301 and G302 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: SP300 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 13: SP400 Ground Distribution Schematic

Courtesy of GENERAL MOTORS CORP.
