Removal Procedure

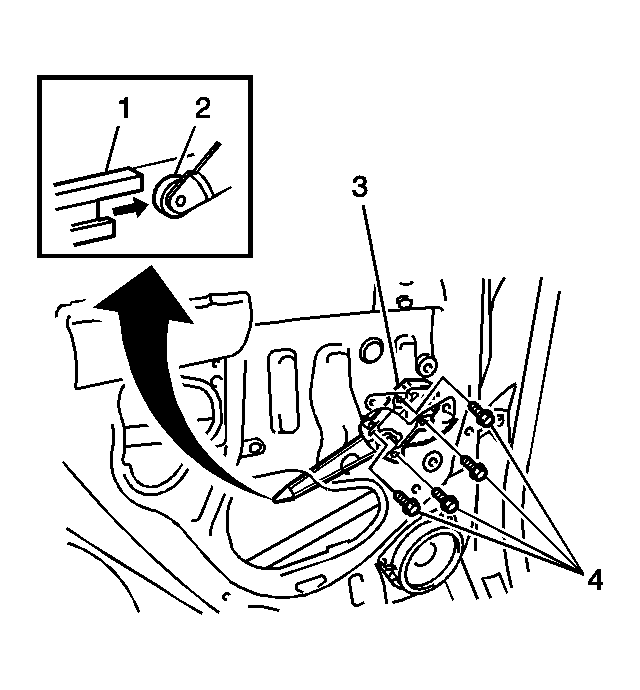

    Fig 1: Window Regulator With Retaining Bolts
    GM847039Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear door window. Refer to Window Replacement - Rear Door .
  2. Remove the following components from the rear door:
    • The 4 retaining bolts (4)
    • The rear side door window regulator (3)
