Installation Procedure

  1. Lubricate a new O-ring with DEXRON III transmission fluid.
  2. Install the new O-ring.

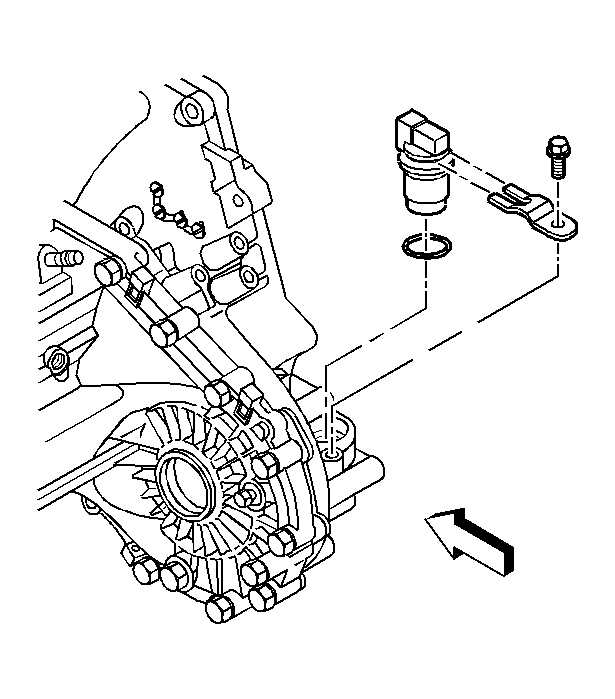

    3. Fig 1: Identifying VSS Retainer
    GM12407Courtesy of GENERAL MOTORS CORP.
  3. Install the VSS retainer.

    Install the vehicle speed sensor (VSS) assembly.

    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the VSS retainer bolt.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

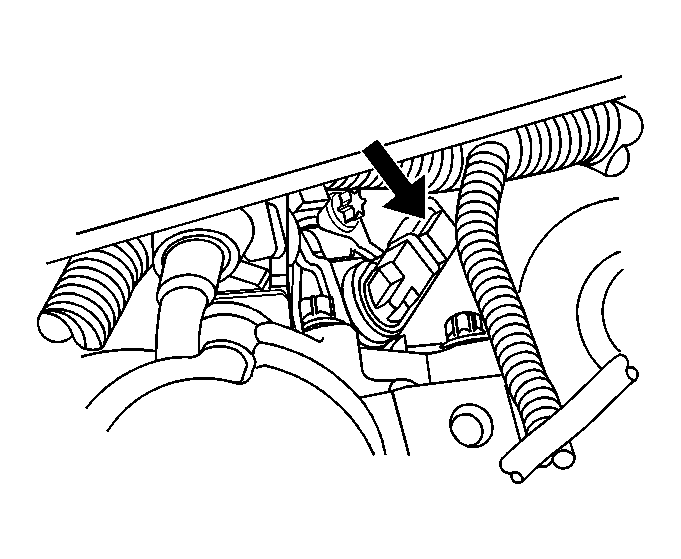

    5. Fig 2: Locating Vehicle Speed Sensor (VSS)
    GM623138Courtesy of GENERAL MOTORS CORP.
  5. Connect the VSS connector to the VSS.
  6. Lower the vehicle.
