Manual Transmission Component Views

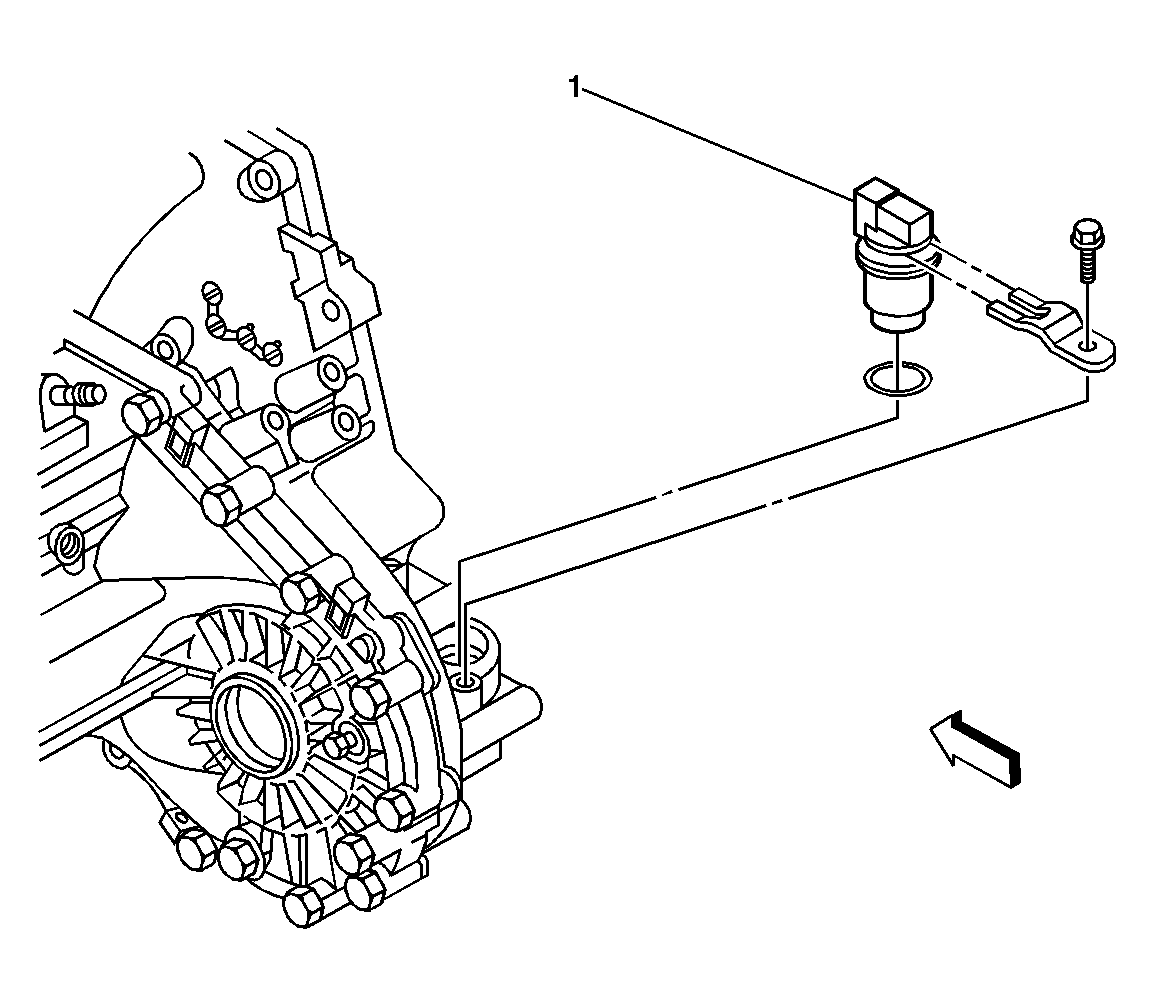

Fig 1: Vehicle Speed Sensor (VSS) Component View
GM791197Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vehicle Speed Sensor (VSS)

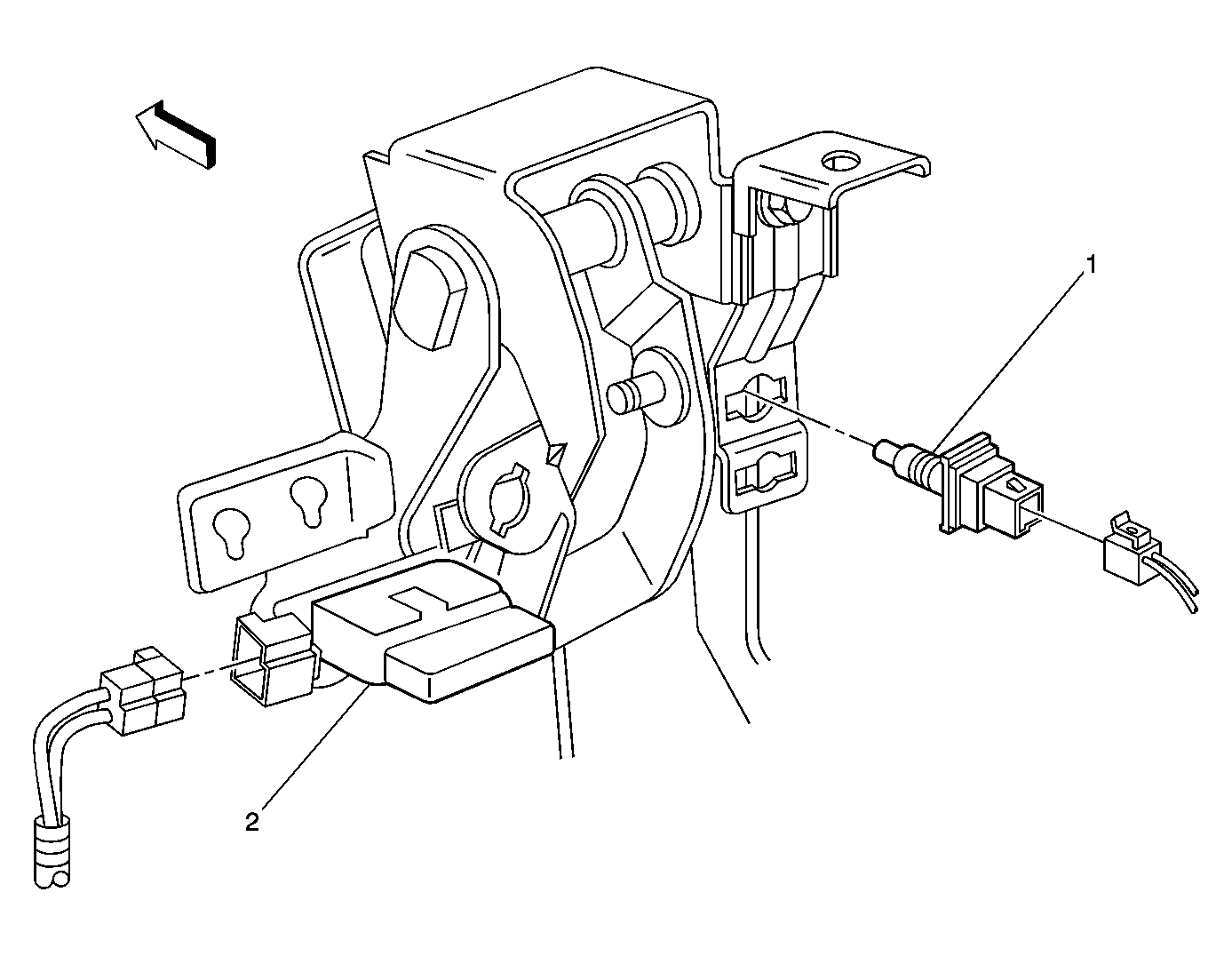

Fig 2: Clutch Pedal Position Switch Component View
GM952540Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Clutch Pedal Start Switch
2 Clutch Pedal Position (CPP) Switch
