Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
    2. CAUTION: Refer to SIR Caution in Cautions and Notices.
  2. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
  3. Remove the steering wheel inflatable restraint module. Refer to Inflatable Restraint Steering Wheel Module Replacement in SIR.
    4. Fig 1: Exploded View Of Steering Wheel
    GM595810Courtesy of GENERAL MOTORS CORP.
  4. Remove the steering wheel nut (1).

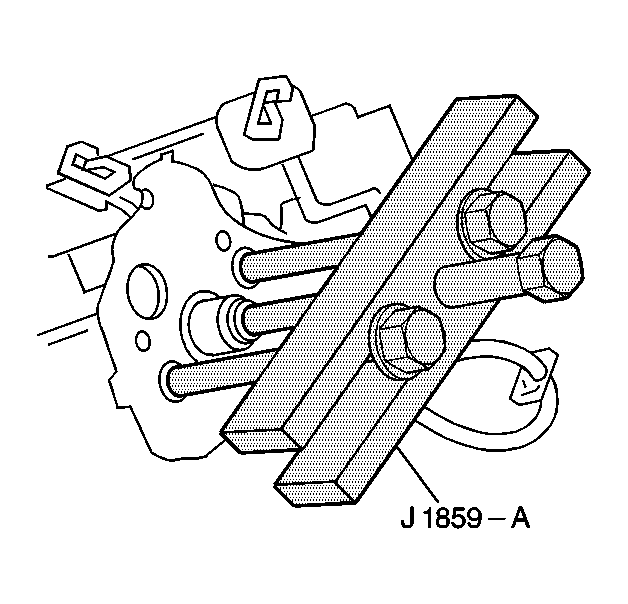

    5. Fig 2: Identifying J 1859-A
    GM490084Courtesy of GENERAL MOTORS CORP.
  5. Remove the steering wheel using J 1859-A and J 42578  . See Special Tools .
    6. Fig 3: Exploded View Of Steering Wheel
    GM595810Courtesy of GENERAL MOTORS CORP.
  6. Remove the steering wheel (2) from the steering column (3).
