Installation Procedure

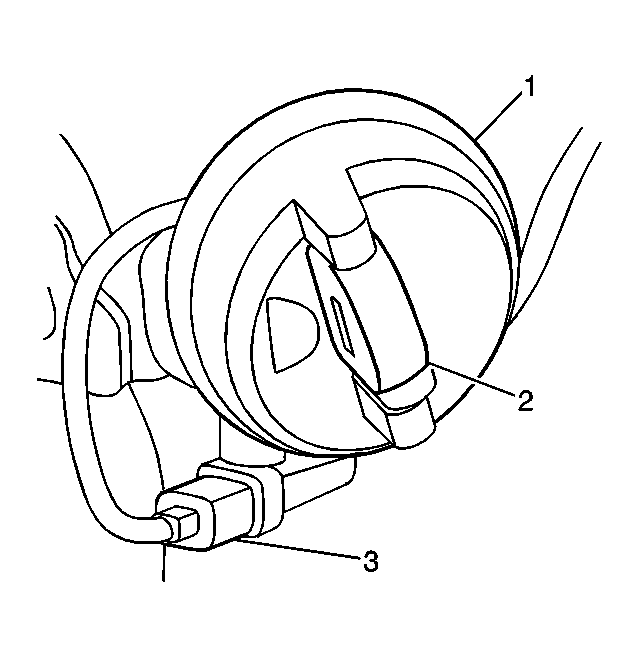

    Fig 1: View Of Ignition Lock Cylinder
    GM491353Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that all the metal shavings are cleaned from the steering column and ignition housing assembly.
  1. Connect the electrical connector (3) to the ignition lock cylinder (1).
  2. Insert the ignition lock cylinder (1) into the housing assembly while rotating the key approximately 5 degrees counter - clockwise.
  3. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  4. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
  5. Connect the negative battery cable.
  6. Perform the Passlock Learn Procedure. Refer to Programming Theft Deterrent System Components in Theft Deterrent.
