Removal Procedure

  1. Remove the right front fender liner. Refer to Front Fender Liner Replacement in Body Front End.
  2. Disconnect the horn electrical connector (2).

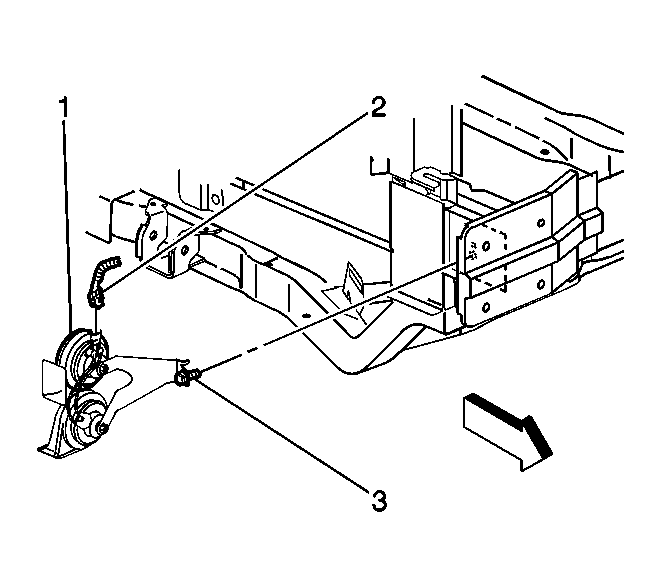

    Fig 1: Disconnecting Horn Electrical Connector
    GM329494Courtesy of GENERAL MOTORS CORP.
  3. Remove the horn bracket bolt (3).
  4. Remove the horn (1) from the front frame rail.
