Installation Procedure

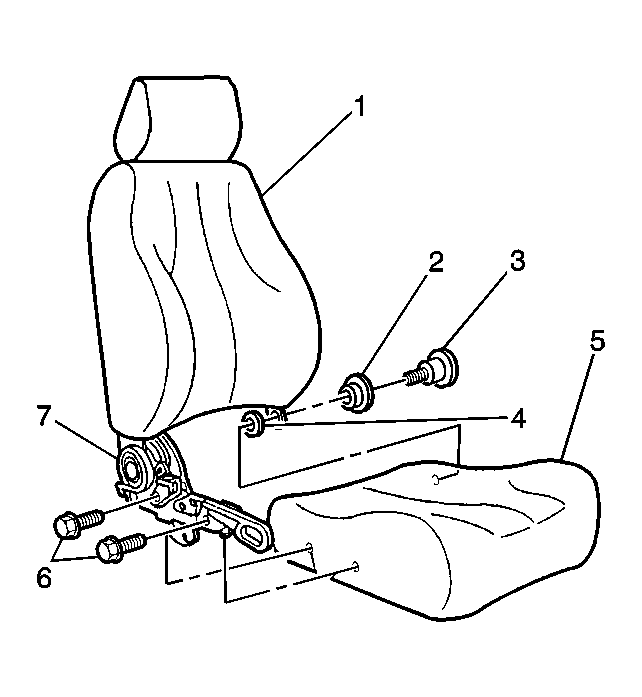

    Fig 1: Exploded View Of Seat Back Recliner
    GM278885Courtesy of GENERAL MOTORS CORP.
  1. Install the front seat back (1) to the front seat cushion (5).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the front bucket seat back pivot bolt (3).

    Tighten:  Tighten the pivot bolt to 20 N.m (15 lb ft).

  3. Install the front bucket seat recliner bolts.

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

  4. Install the outer trim panel on the seat cushion. Refer to Seat Cushion Outer Trim Panel Replacement  .
  5. Fasten the wire harness to the cushion frame for the SIAB, if equipped.
  6. Fasten the lumbar cable to the cushion frame, if equipped.
  7. Install the lumbar actuator to the cushion frame, if equipped. Refer to Lumbar Replacement - Front Seat (Pontiac)  .
  8. Align the lumbar knob to the splines on the actuator, if equipped.

    Press the knob onto the actuator until fully engaged.

  9. Install the front seat. Refer to Seat Replacement  .
  10. Enable the SIR system, if equipped with SIAB. Refer to SIR Disabling and Enabling Zone 7 or to SIR Disabling and Enabling Zone 9 in SIR.
