Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

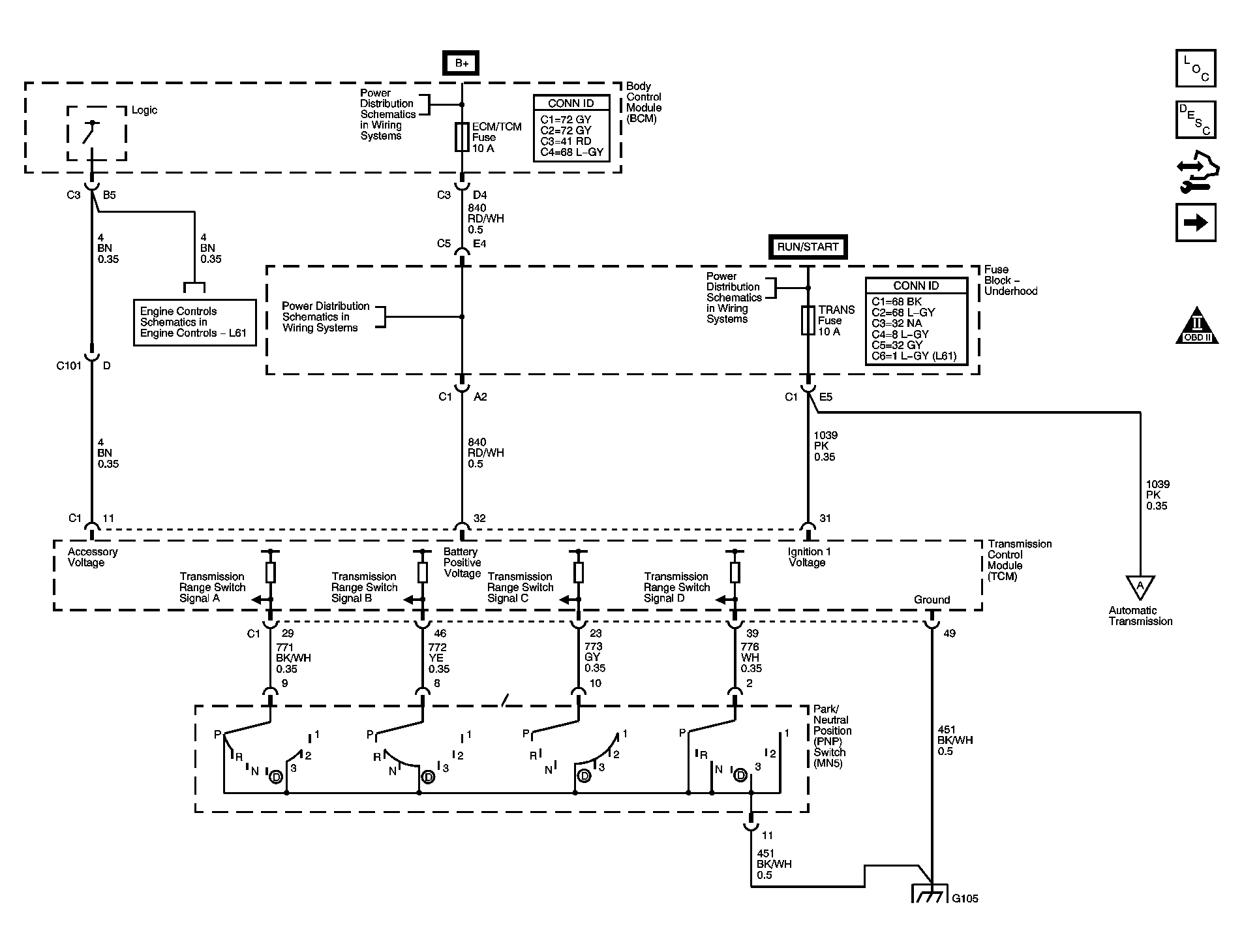

Fig 1: TCM Power, Ground & PNP Switch Schematic
GM1509893Courtesy of GENERAL MOTORS CORP.

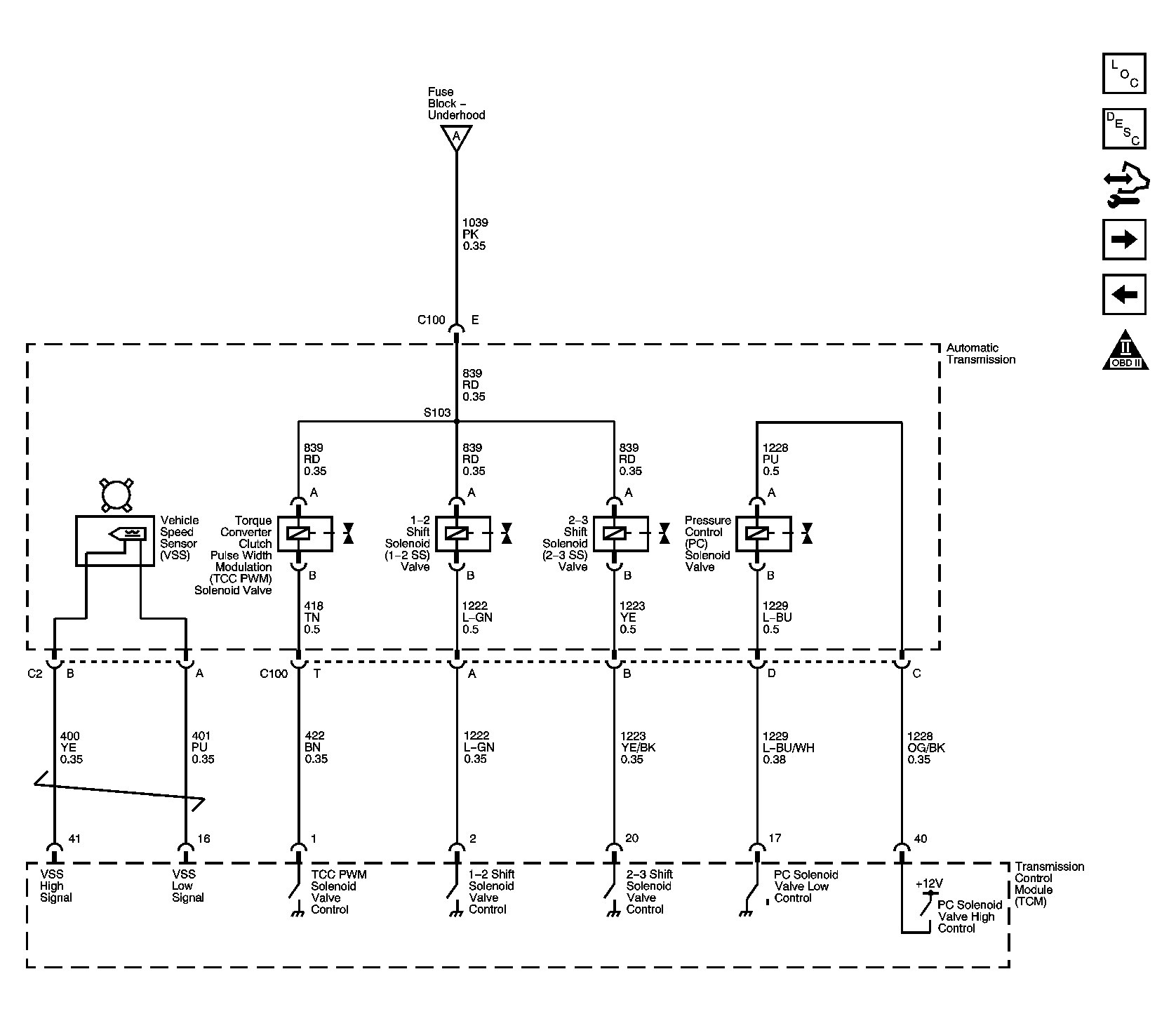

Fig 2: Transmission Solenoids & VSS Schematic
GM1509896Courtesy of GENERAL MOTORS CORP.

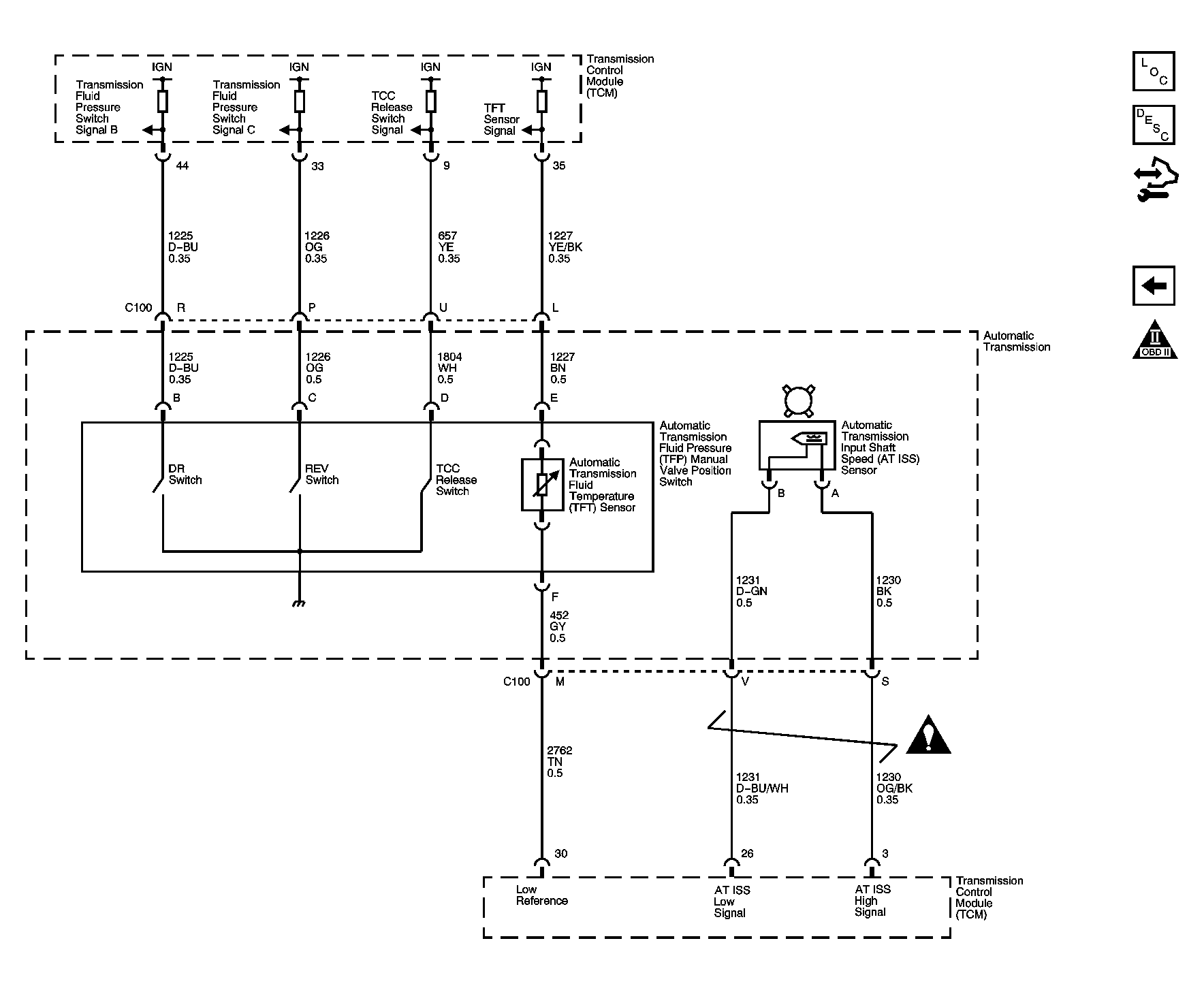

Fig 3: Transmission Switches, TFT & A/T ISS Sensor Schematic
GM1509900Courtesy of GENERAL MOTORS CORP.
