Removal Procedure

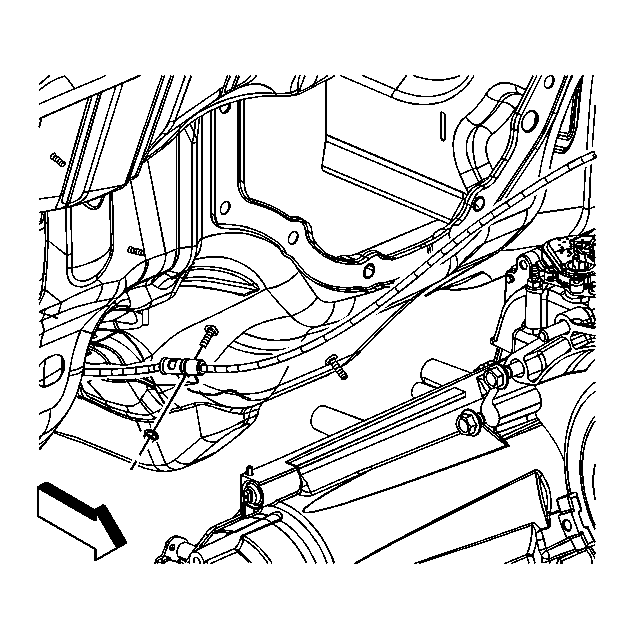

    Fig 1: Identifying Shift Cable Retaining Nut
    GM1521636Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the shift cable retaining nut near the exhaust heat shield.

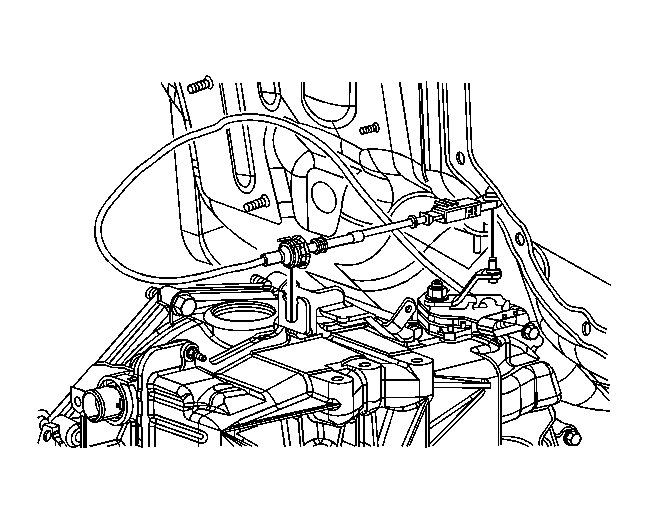

    3. Fig 2: Identifying Shift Cable
    GM1521639Courtesy of GENERAL MOTORS CORP.
  3. Remove the shift cable from the transmission cable bracket.
  4. Disconnect the shift cable from the park/neutral position switch.
  5. Lower the vehicle.
  6. Remove the console. Refer to Console Replacement - Front Floor in Instrument Panel, Gages, and Console.
    7. Fig 3: View Of Shift Control
    GM851244Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the shift cable from the shift control assembly.
  8. Position the driver's side front carpet aside.

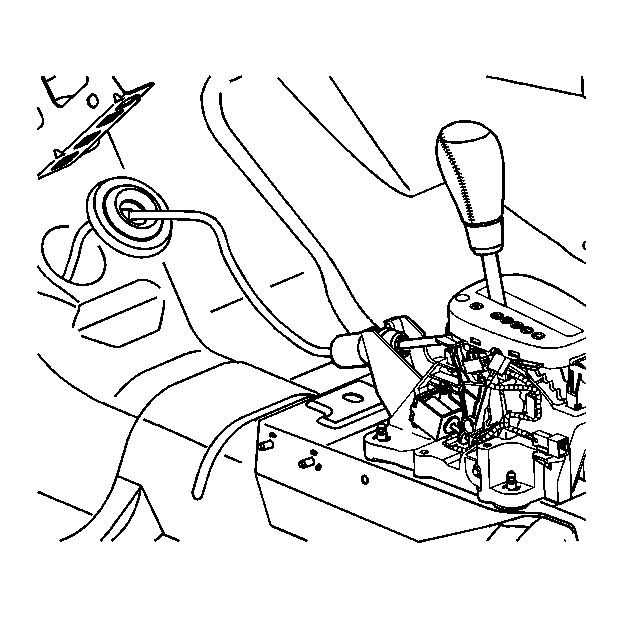

    9. Fig 4: View Of Floor Pan Grommet
    GM851242Courtesy of GENERAL MOTORS CORP.
  9. Separate the grommet from the floor pan.
  10. Remove the cable from the vehicle by pulling the cable through the driver's floor opening.
