Installation Procedure

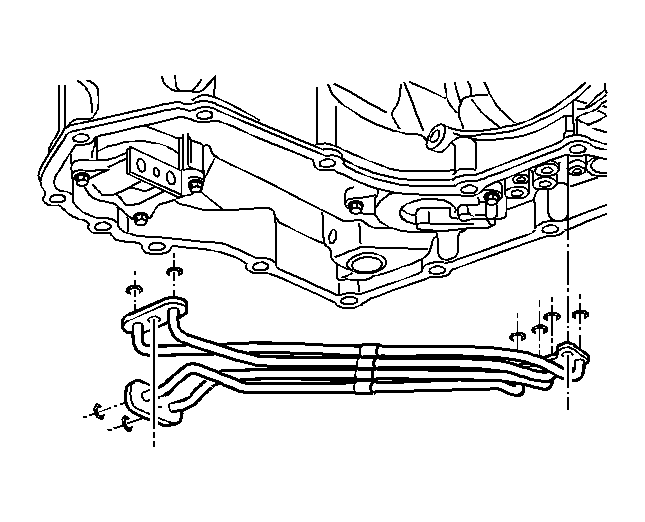

    Fig 1: Identifying Lo & Reverse Band Oil Pipe Assembly Seals
    GM104551Courtesy of GENERAL MOTORS CORP.
  1. Install the eight low/reverse band oil pipe assembly seals.
  2. Install the low/reverse band oil feed pipe assembly onto the transmission.

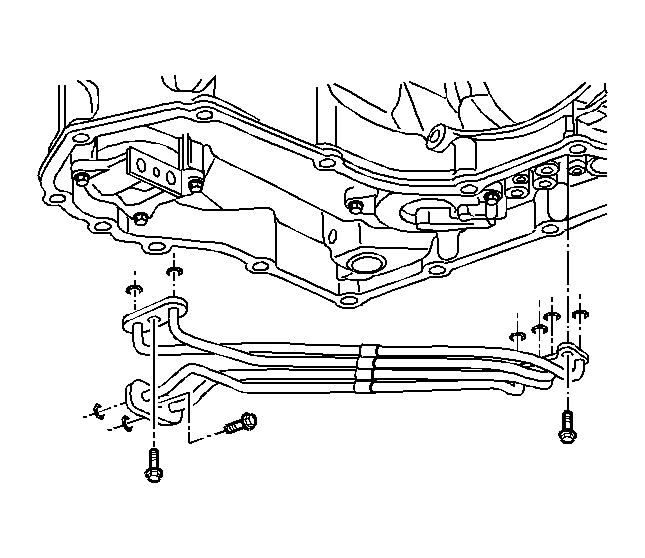

    3. Fig 2: View Of Oil Feed Pipe Bolts
    GM104550Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Hand start the bolts that attach the oil feed pipe assembly to the transmission.

    Tighten:  Tighten the bolts to 14 N.m (124 lb in).

  4. Install the transmission oil filter assembly. Refer to Oil Filter and Seal Replacement .
  5. Install the transmission oil pan and gasket. Refer to Oil Filter and Seal Replacement .
  6. Lower the vehicle.
  7. Refill the transmission to the proper level.
  8. Inspect the transmission oil level. Refer to Transmission Fluid Checking Procedure .
