Head Restraint Guide Replacement - Front Seat

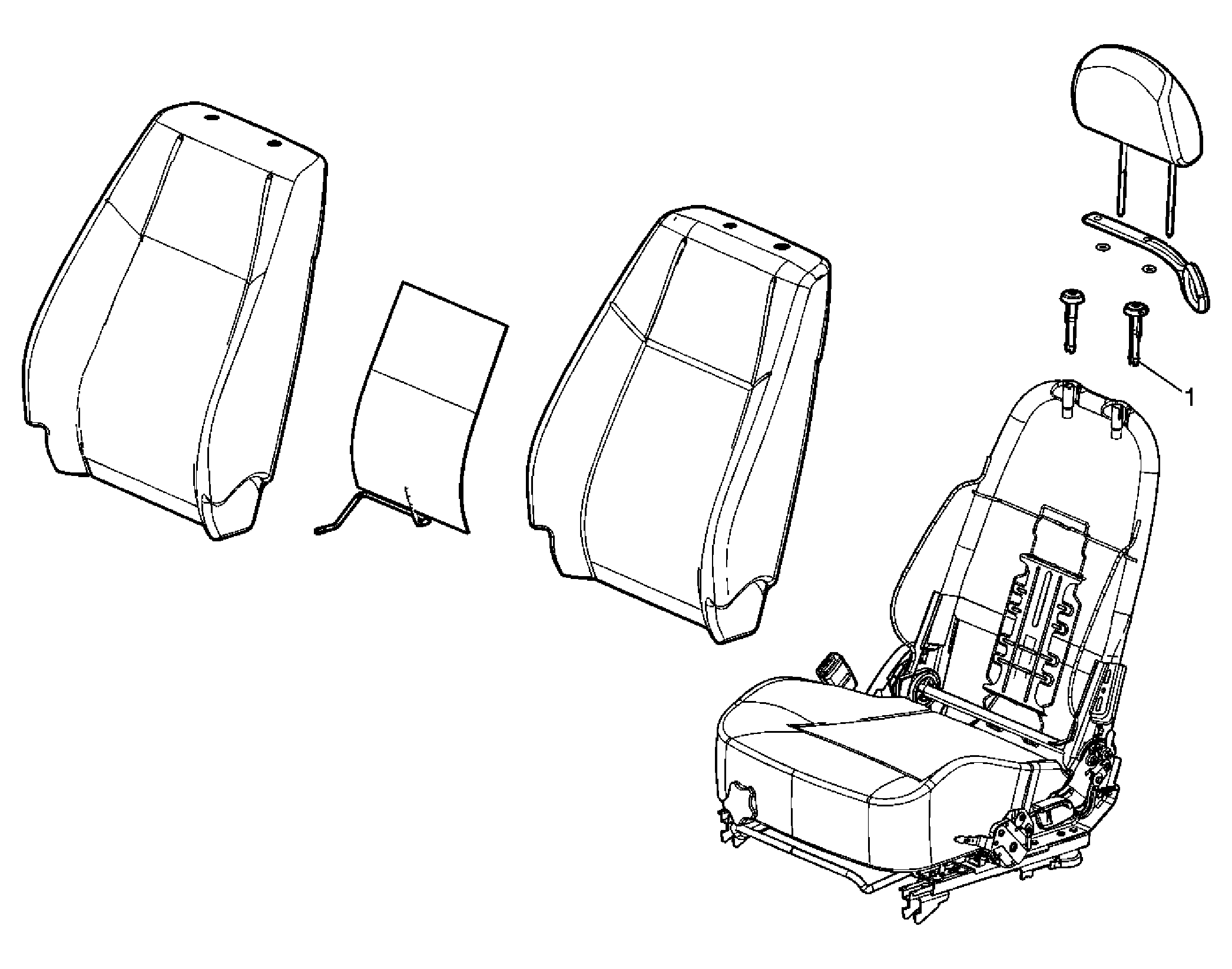

Fig 1: Head Restraint Guide - Front Seat
GM1551173Courtesy of GENERAL MOTORS CORP.
Head Restraint Guide Replacement - Front Seat

Callout Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices.
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the head restraint. Refer to Head Restraint Replacement - Front Seat .
  2. Partially remove the seat back cover. Refer to Seat Back Cover and Pad Replacement - Front .
1 Guide, Head Restraint
