Body Control System Schematics

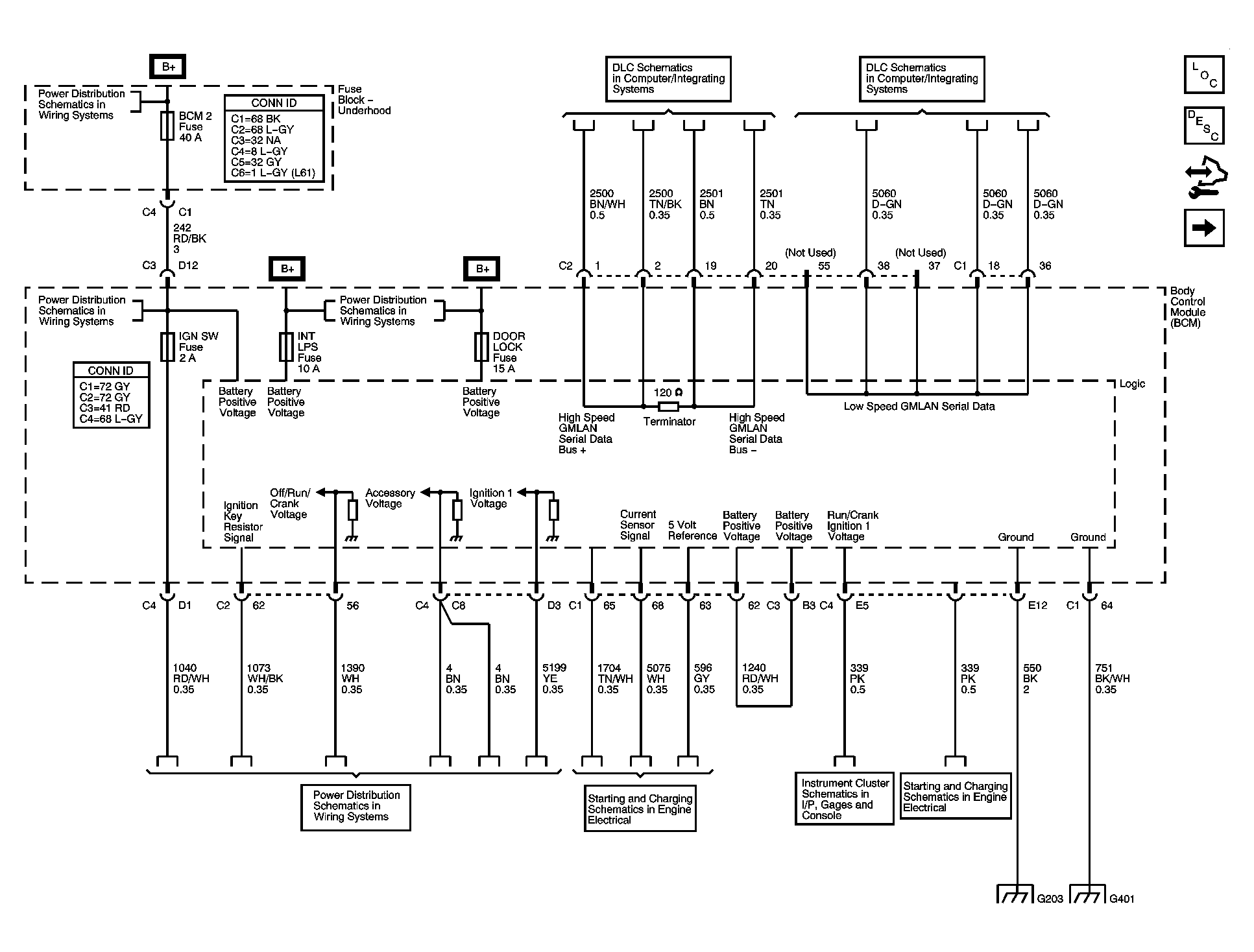

Fig 1: Power, Ground, Data Link and Engine References Schematic

Courtesy of GENERAL MOTORS CORP.

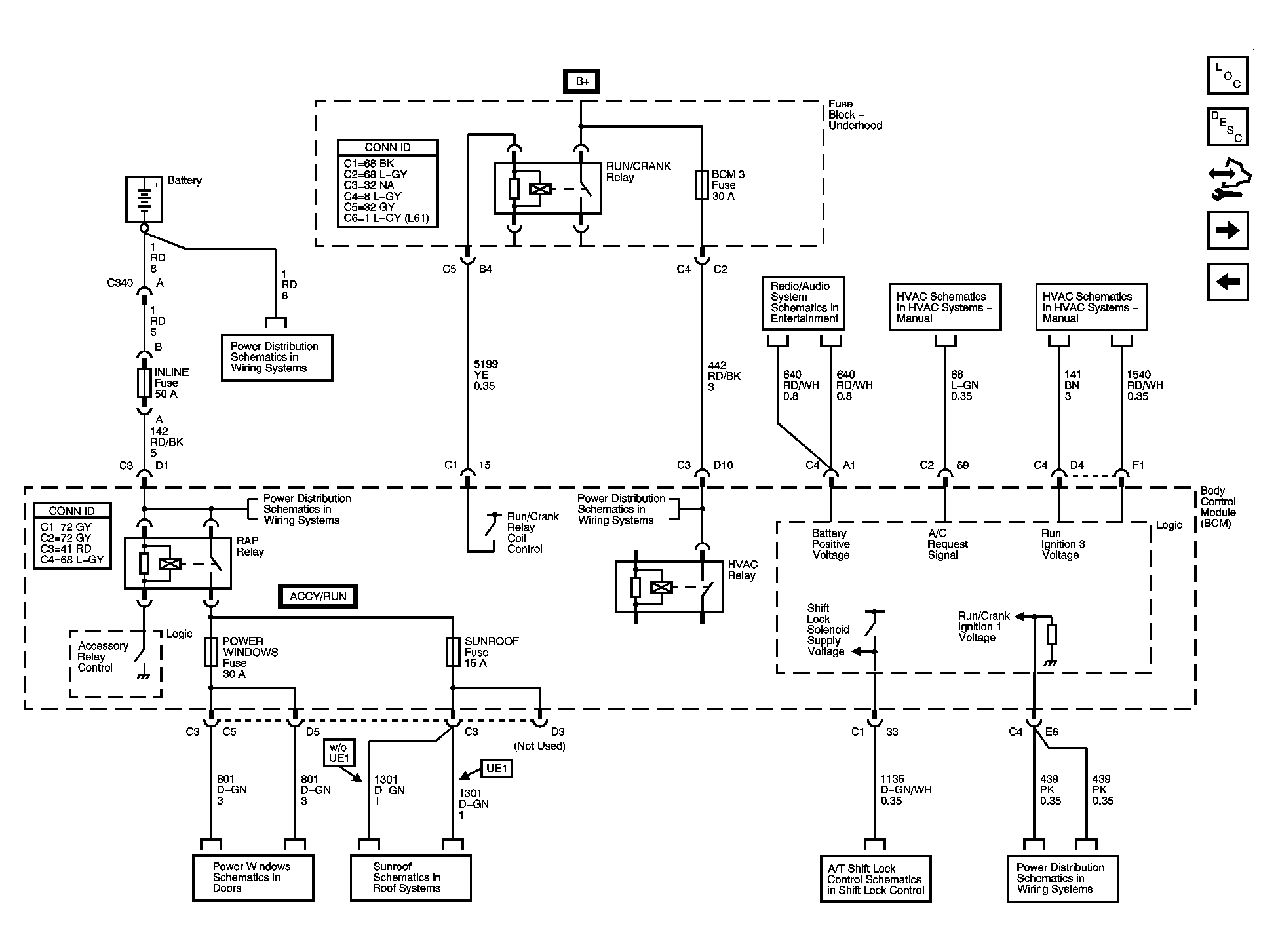

Fig 2: RUNCRANK, RAP, and HVAC Relays, BCM 3, PWR WINDOWS, and SUNROOF Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

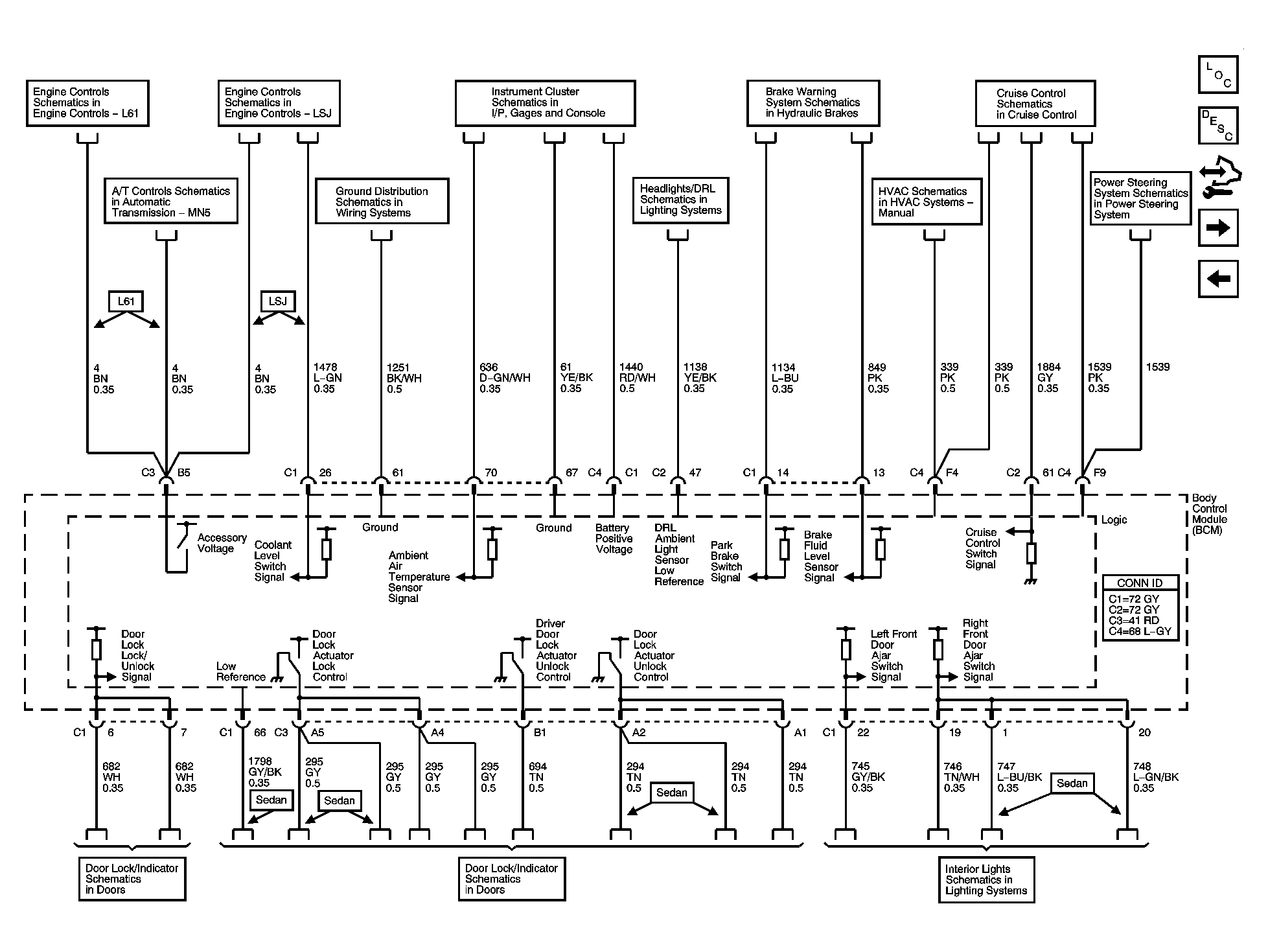

Fig 3: ABS, Brake Warning, Cruise Control, Door Lock/Indicator, Engine Controls and Engine Cooling References Schematic

Courtesy of GENERAL MOTORS CORP.

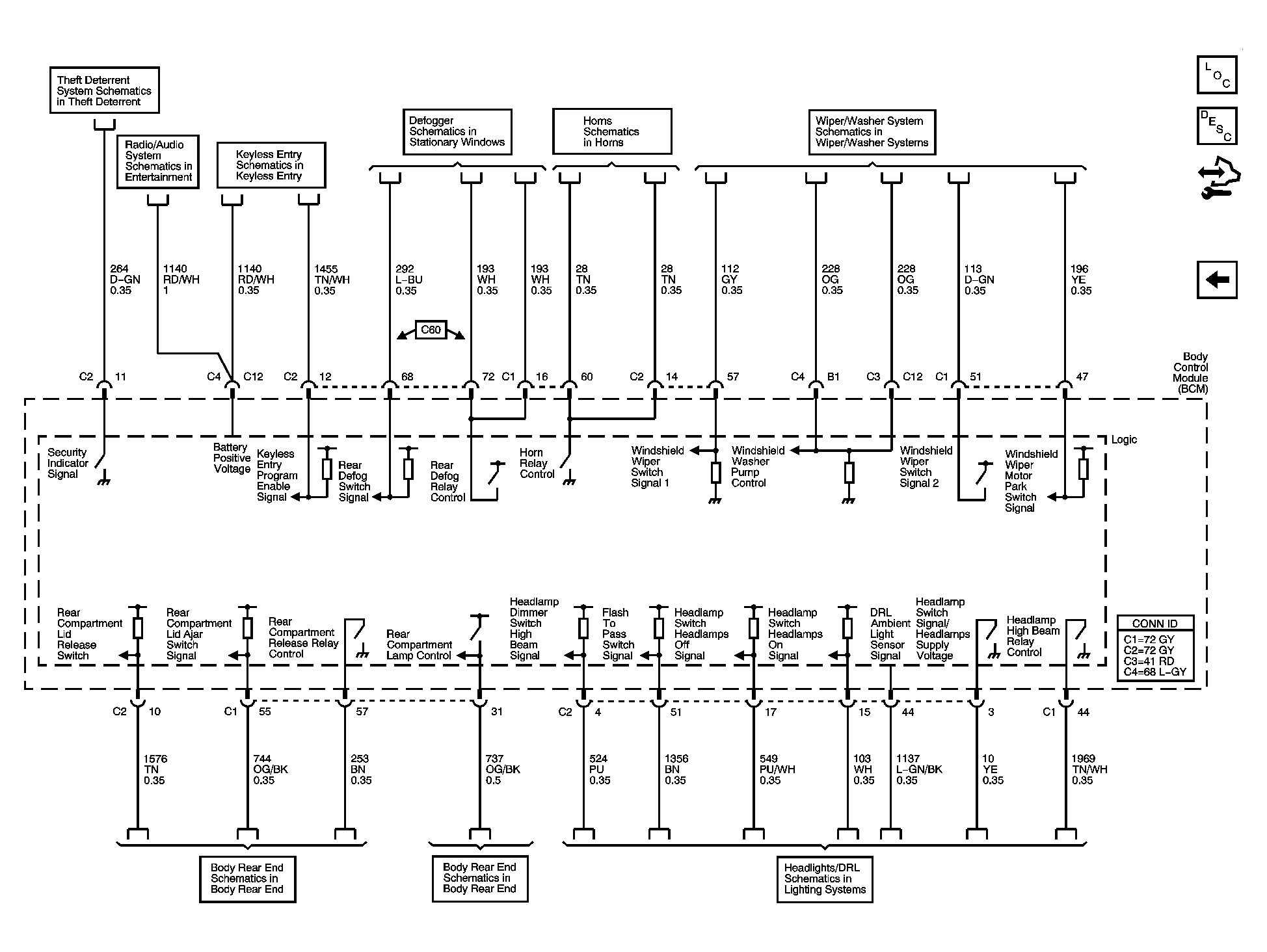

Fig 4: Body Rear End, Defogger, Headlights/DRL, Horns and Wiper/Washer References Schematic

Courtesy of GENERAL MOTORS CORP.

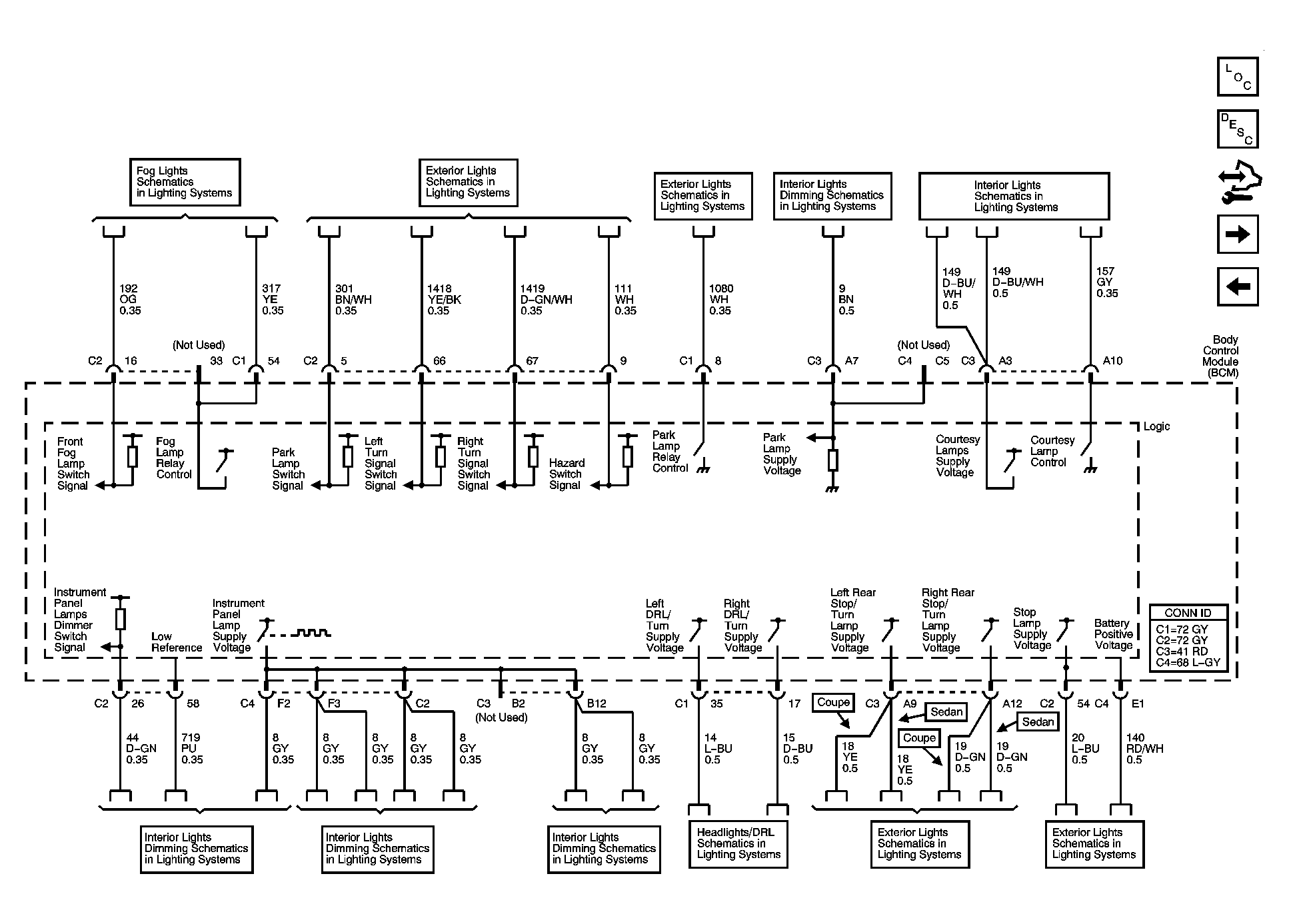

Fig 5: Lighting System References Schematic

Courtesy of GENERAL MOTORS CORP.
