Automatic Transmission Shift Lock Control Schematics

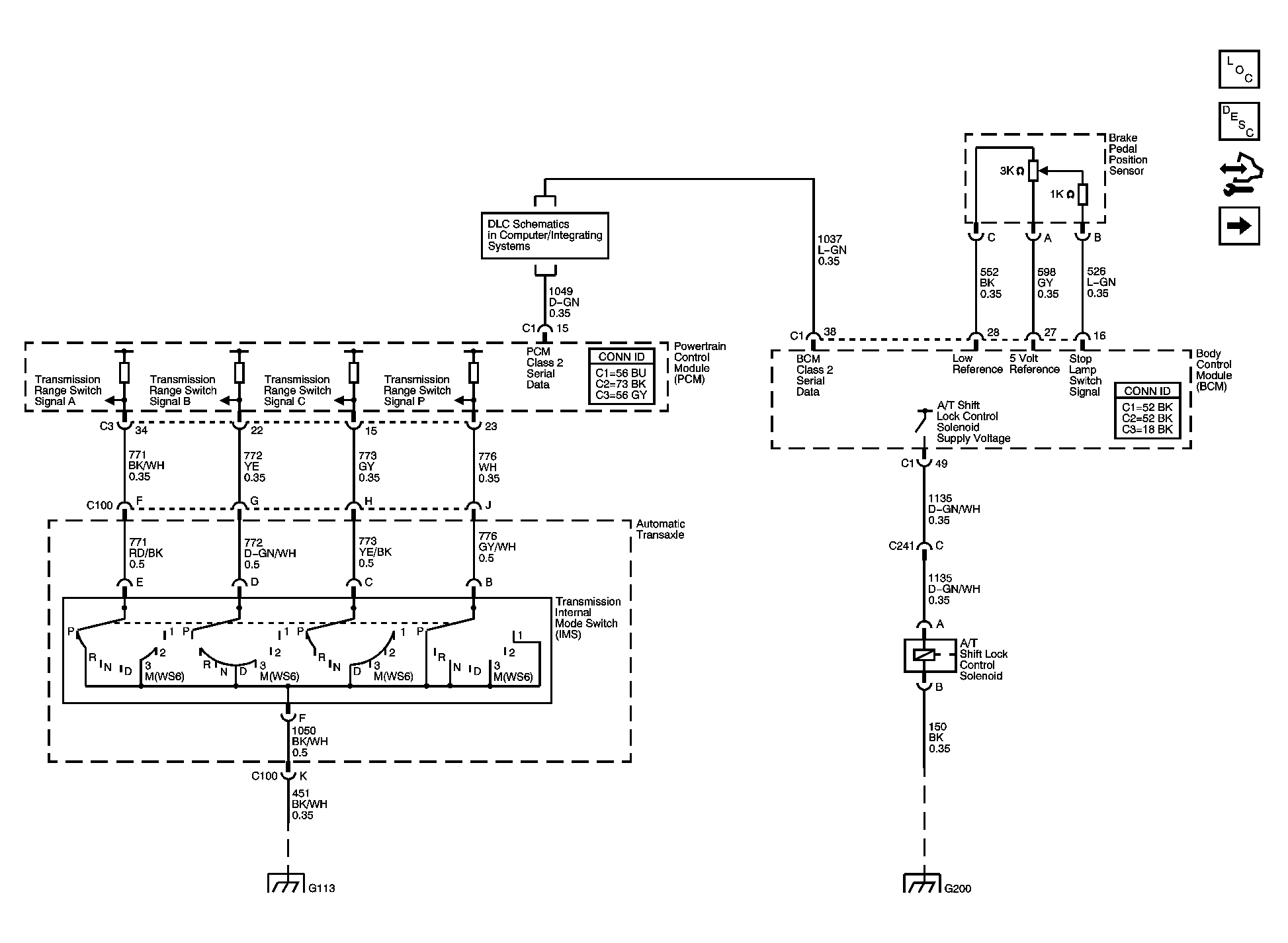

Fig 1: Automatic Transmission Shift Lock Control Schematics (L26, L32)
GM1457710Courtesy of GENERAL MOTORS CORP.

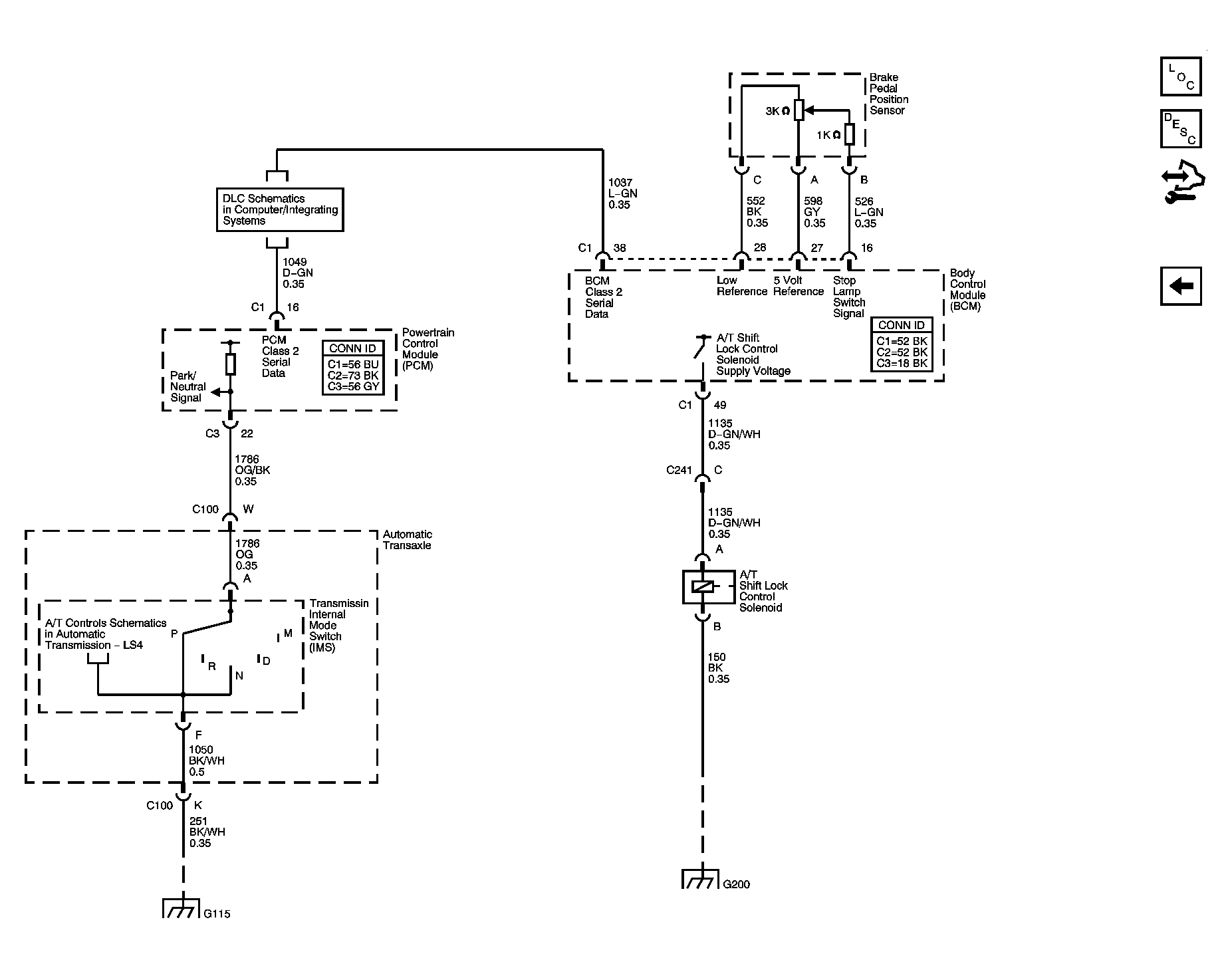

Fig 2: Automatic Transmission Shift Lock Control Schematics (LS4)
GM1556902Courtesy of GENERAL MOTORS CORP.
