Installation Procedure

    Fig 1: View Of VSS & O-Ring
    GM10711Courtesy of GENERAL MOTORS CORP.
  1. Install the O-ring (11) to the VSS (10).
    2. Fig 2: VSS & Extension Case
    GM1248553Courtesy of GENERAL MOTORS CORP.
  2. Install the VSS (10).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the VSS stud (9).

    Tighten:  Tighten the stud to 11 N.m (97 lb in).

  4. Install the wiring harness retainer on stud.

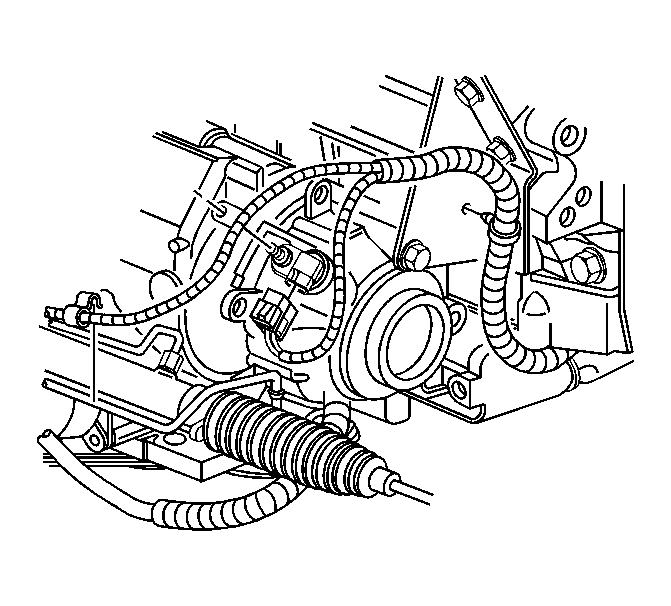

    5. Fig 3: VSS Electrical Connector
    GM1248567Courtesy of GENERAL MOTORS CORP.
  5. Connect the VSS electrical connector.
  6. Install the right front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  7. Lower the vehicle.
