Remote Power Steering Fluid Reservoir Replacement
Remote Power Steering Fluid Reservoir Replacement

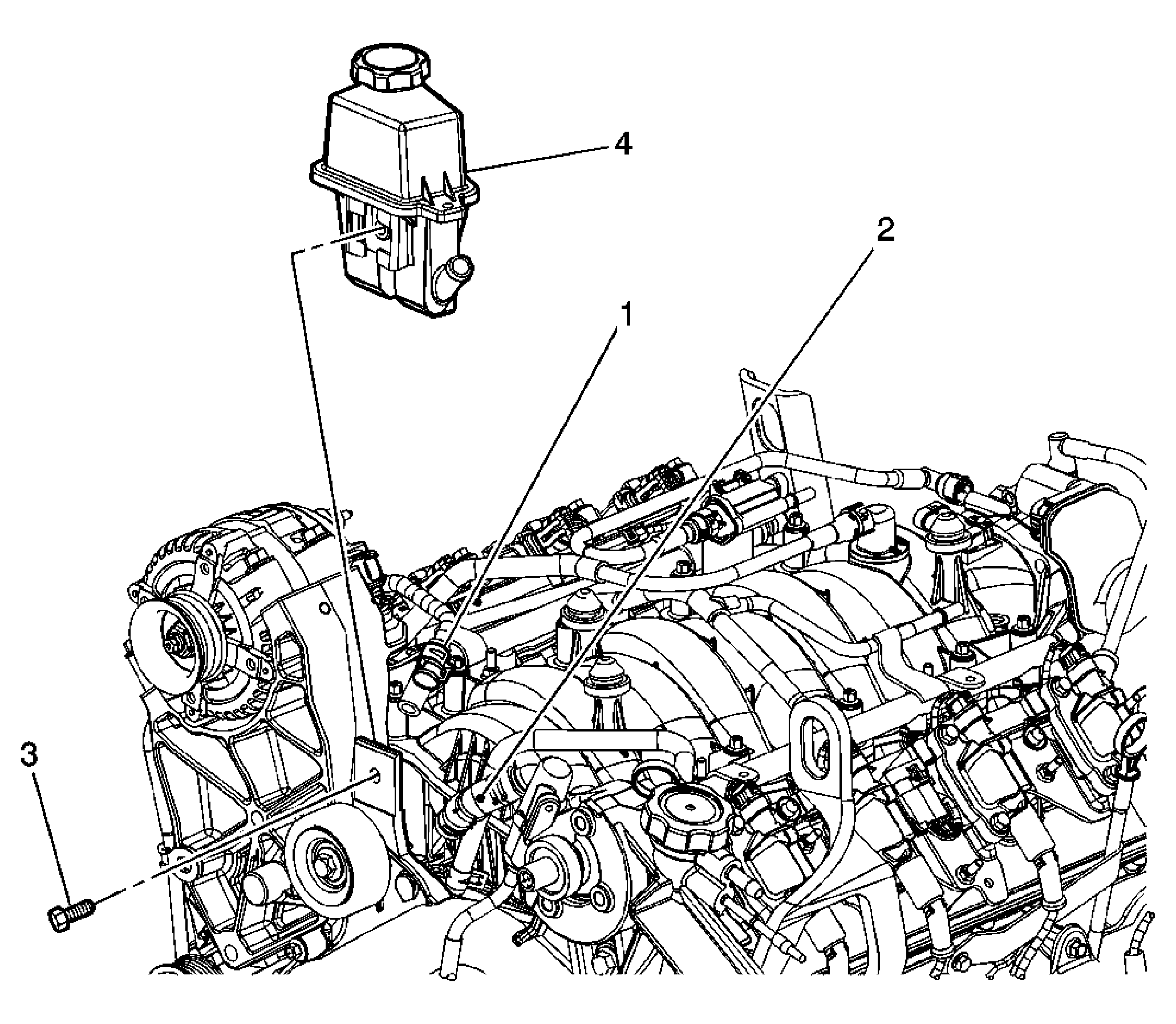

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
.Preliminary Procedure |
|
| 1 | Clamp, Power Steering Return Hose. Tip: Using the appropriate tool, remove the power steering fluid from the reservoir. Also, plug the open end of the hose to limit the amount of fluid leakage. |
| 2 | Clamp, Power Steering Pump Feed Hose. Tip: Plug or cap the hose between the power steering pump and the reservoir so as to limit the amount of fluid loss. |
| 3 | Bolt, Remote Power Steering Reservoir (Qty:1). Tighten: 18 N.m (13 lb ft). |
| 4 | Reservoir, Power Steering Remote. |
