Installation Procedure

    Fig 1: View Of Rear Exhaust Pipe Hanger(s)
    GM1553091Courtesy of GENERAL MOTORS CORP.
  1. Install the rear exhaust pipe hanger(s).
    2. Fig 2: View Of Side Exhaust Pipe Hanger(s)
    GM1553089Courtesy of GENERAL MOTORS CORP.
  2. Install the side exhaust pipe hanger(s) (1).

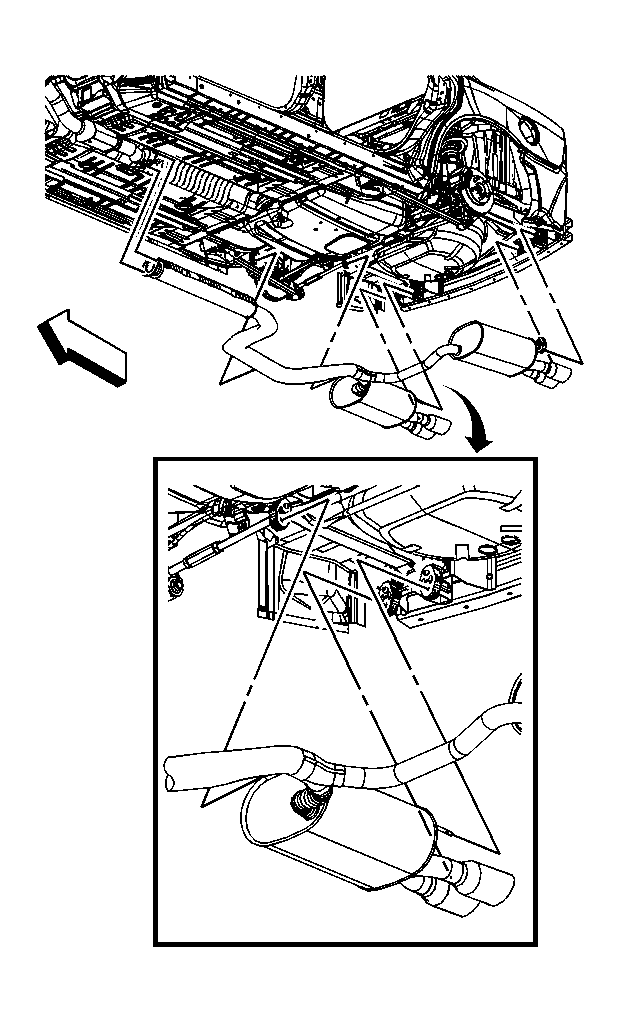

    3. Fig 3: View Of Muffler (Dual Exhaust With RPO Z7T, Right Side)
    GM1553086Courtesy of GENERAL MOTORS CORP.
  3. Install the muffler to the exhaust pipe hanger (dual exhaust with RPO Z7T, right side).

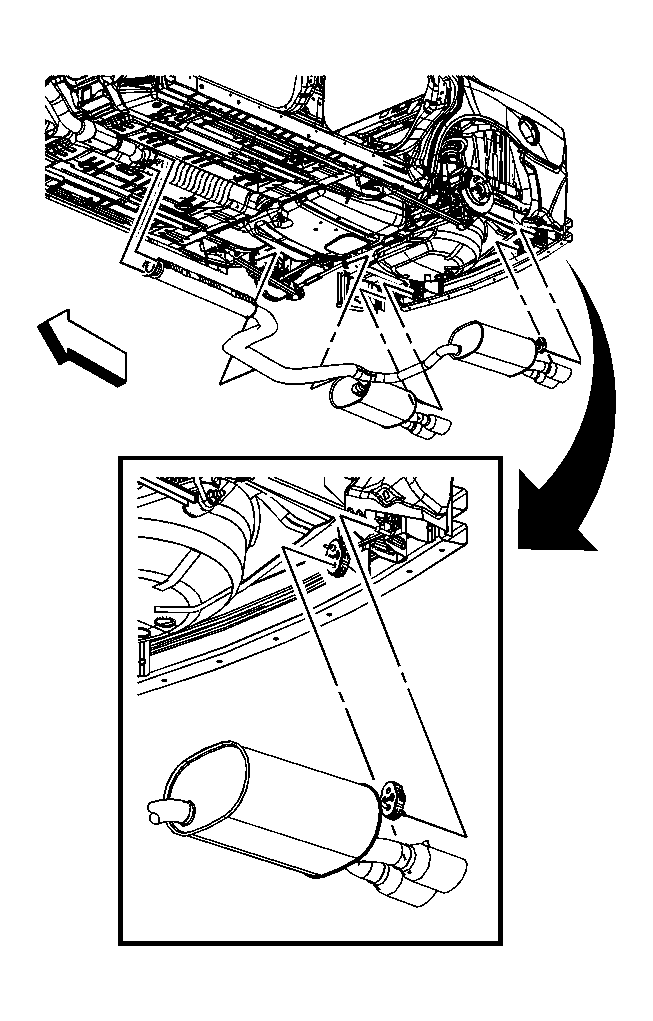

    4. Fig 4: View Of Muffler (Dual Exhaust With RPO Z7T, Left Side)
    GM1553083Courtesy of GENERAL MOTORS CORP.
  4. Install the muffler to the exhaust pipe hanger (dual exhaust with RPO Z7T, left side).

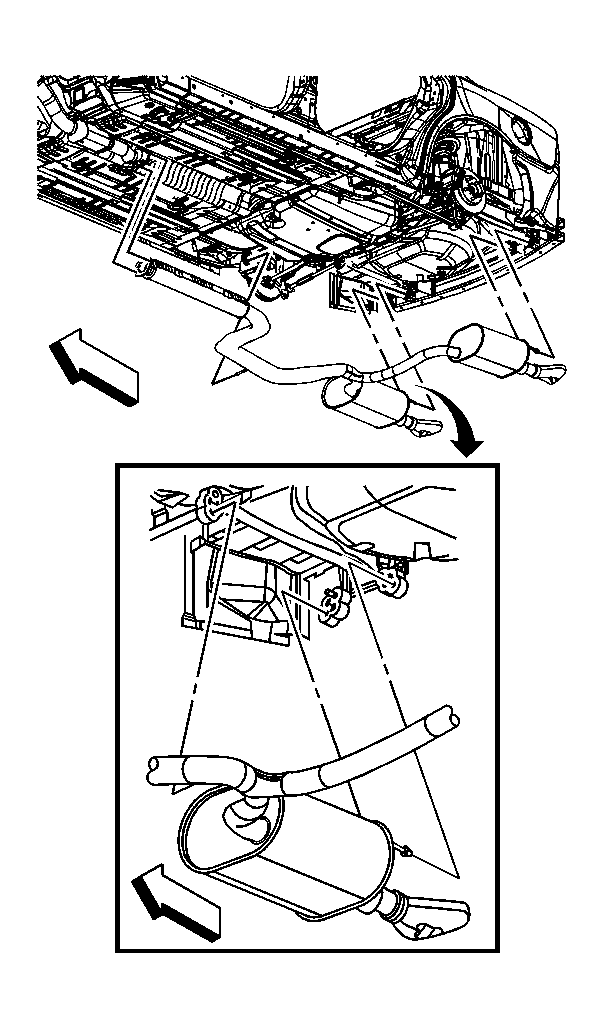

    5. Fig 5: View Of Muffler (Dual Exhaust)
    GM1553072Courtesy of GENERAL MOTORS CORP.
  5. Install the muffler to the exhaust pipe hanger (dual exhaust).

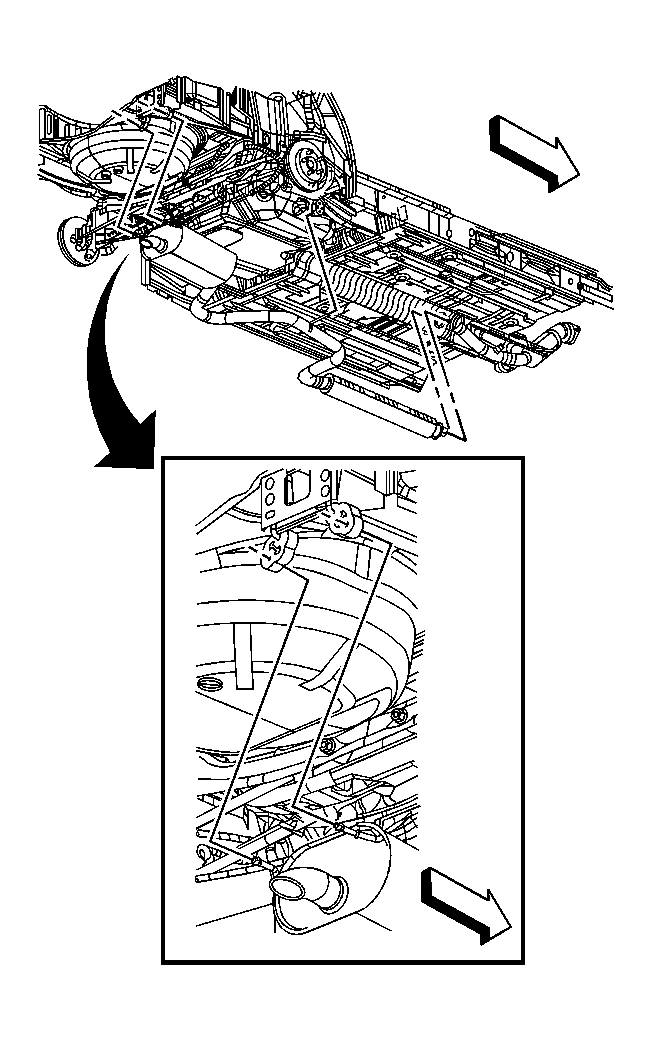

    6. Fig 6: View Of Muffler (Single Exhaust)
    GM1553070Courtesy of GENERAL MOTORS CORP.
  6. Install the muffler to the exhaust pipe hanger (single exhaust).

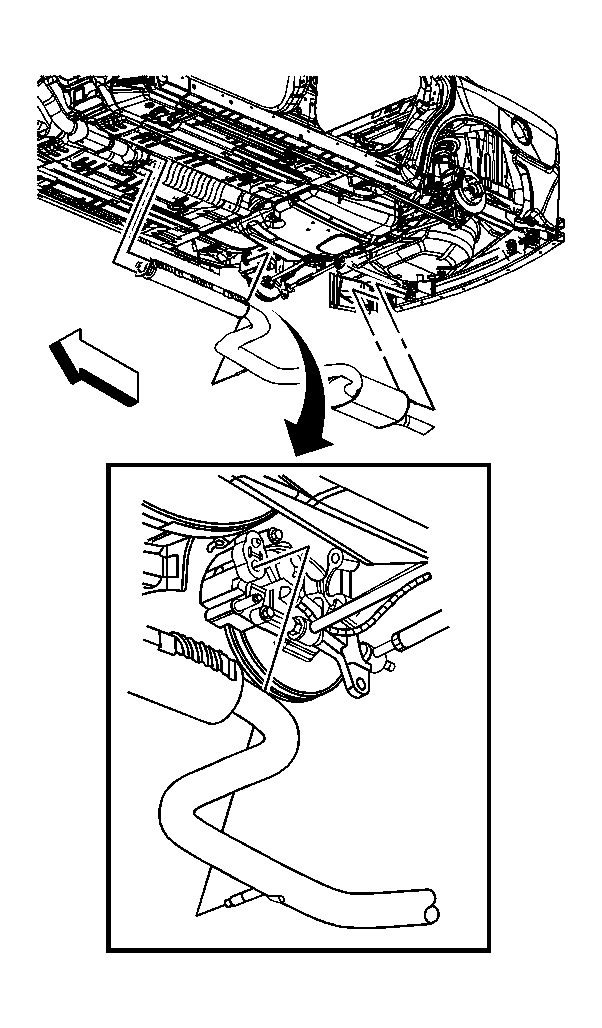

    7. Fig 7: View Of Exhaust Pipe
    GM1553067Courtesy of GENERAL MOTORS CORP.
  7. Install the exhaust pipe to the exhaust pipe hanger (single/dual exhaust).
  8. Remove the support from the exhaust system.
  9. Lower the vehicle.
