Engine Controls Schematics

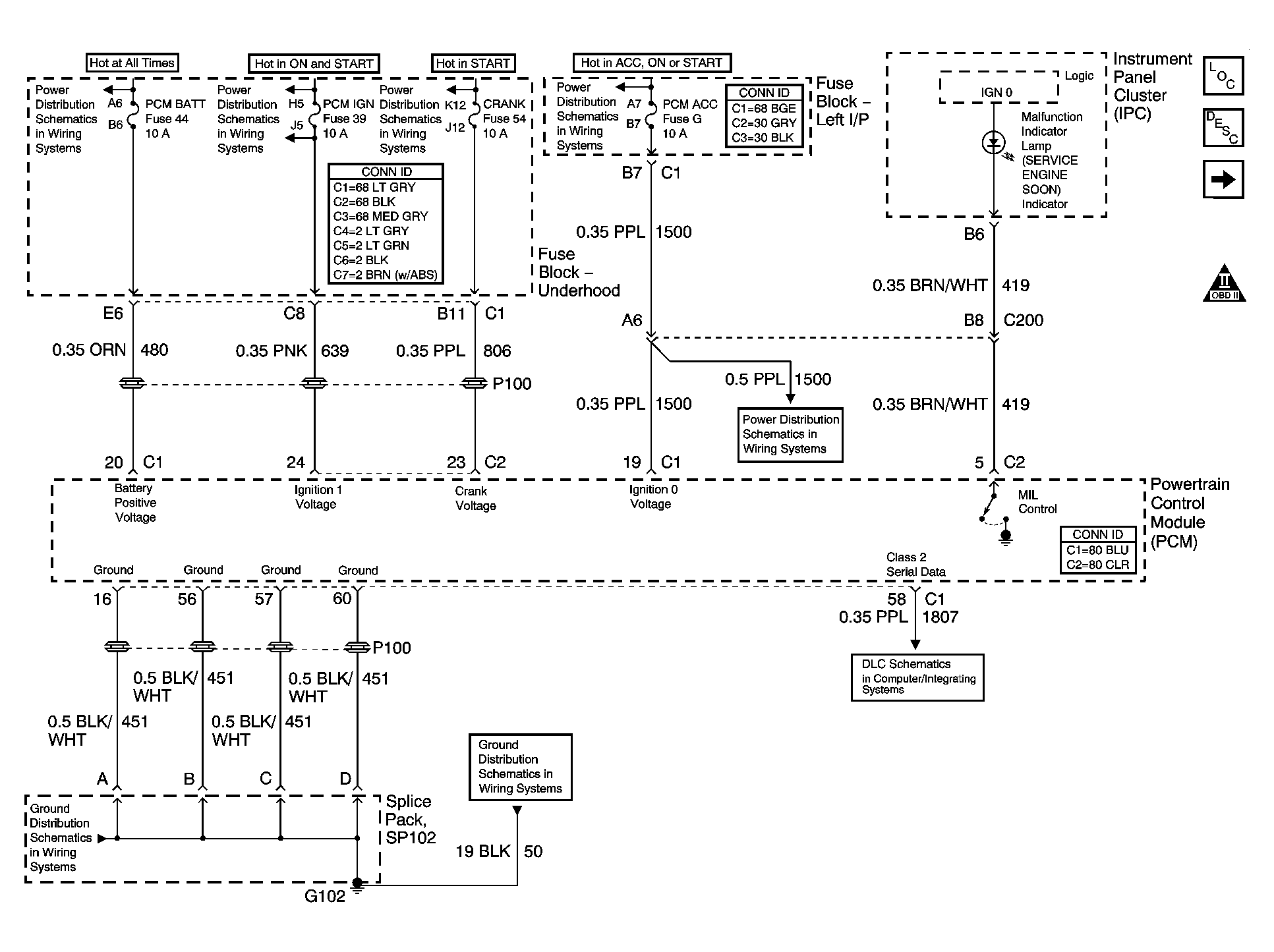

Fig 1: Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

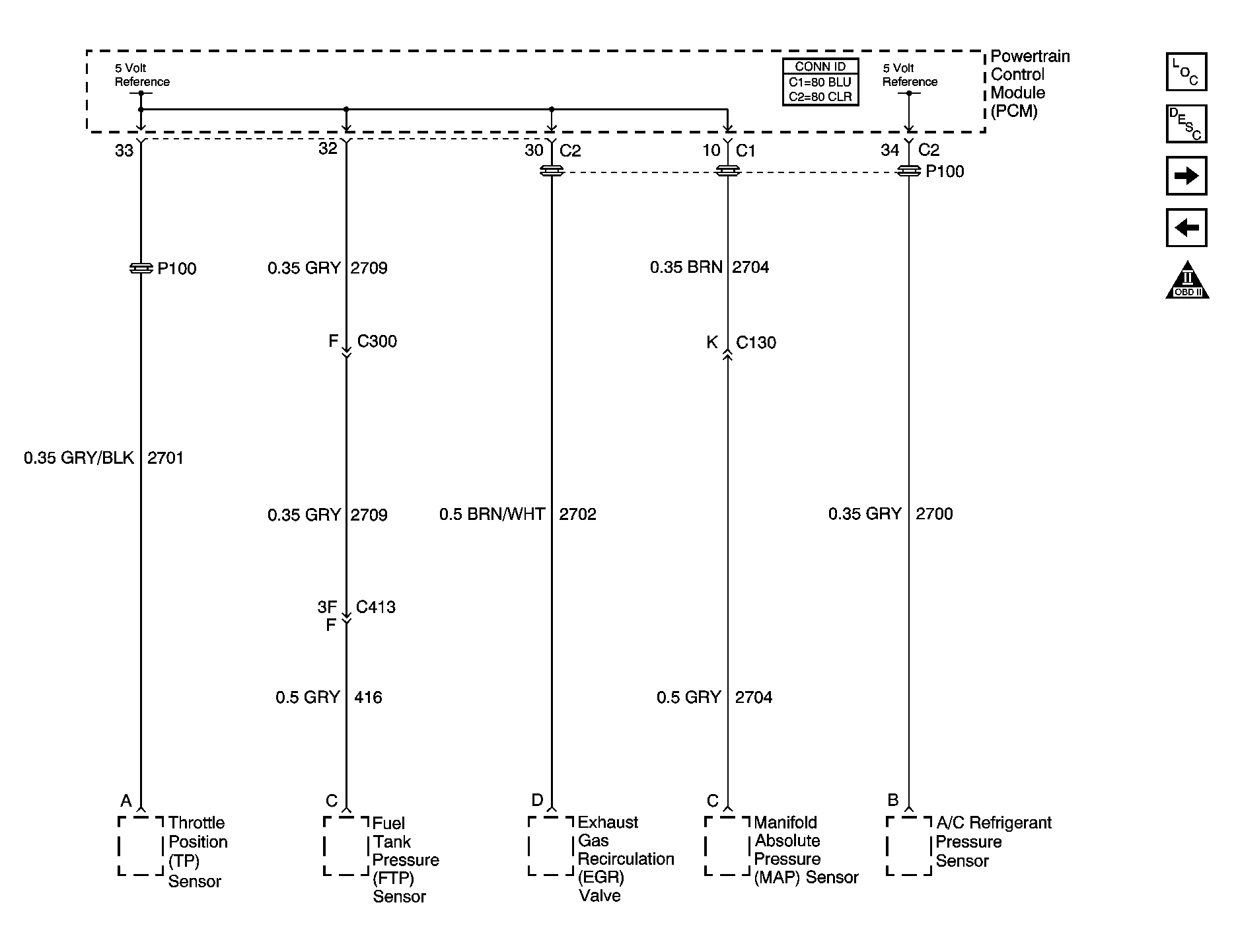

Fig 2: 5-Volt Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Low Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

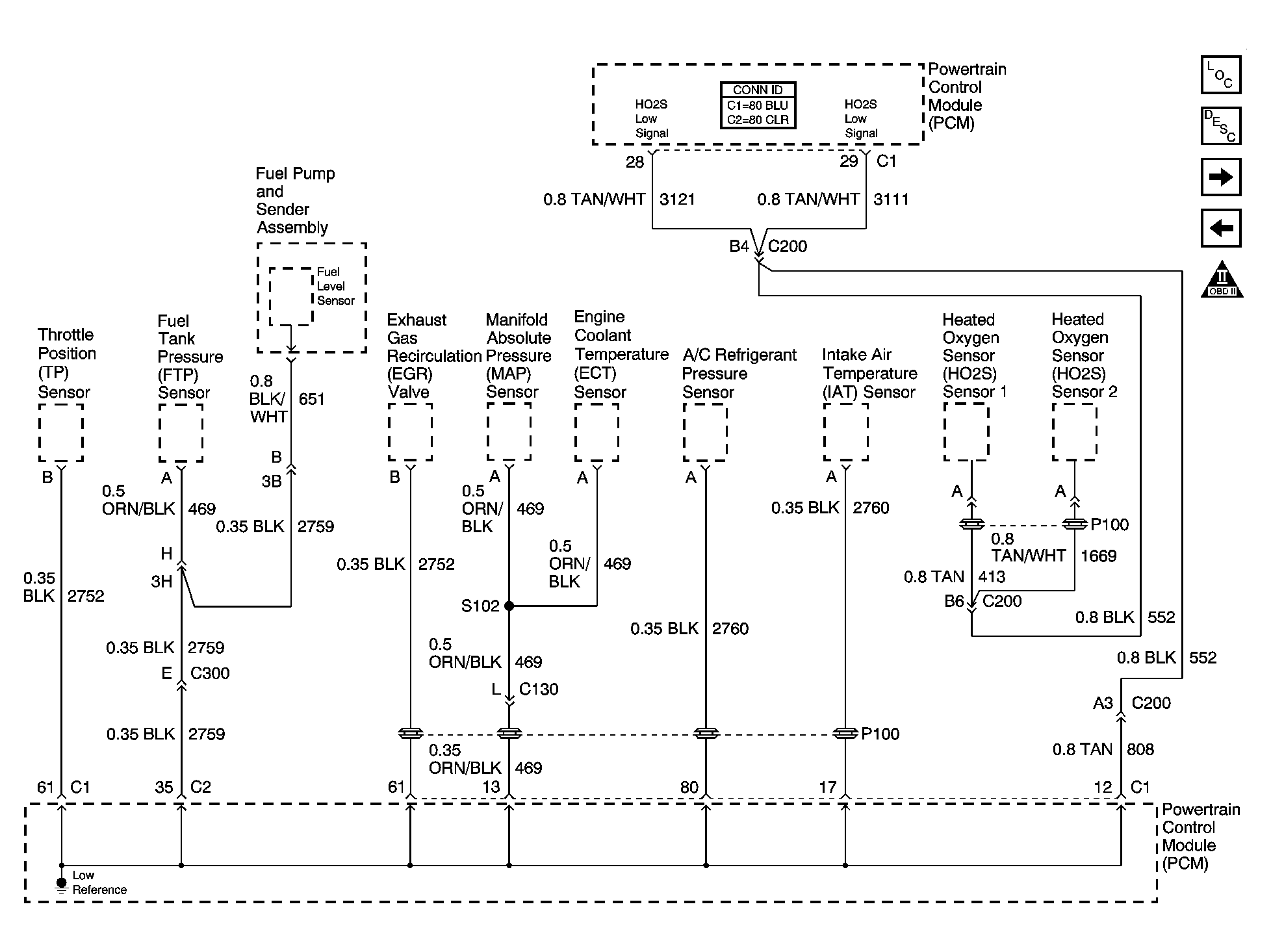

Fig 4: Engine Data Sensors - Pressure & Temperature Schematics

Courtesy of GENERAL MOTORS CORP.

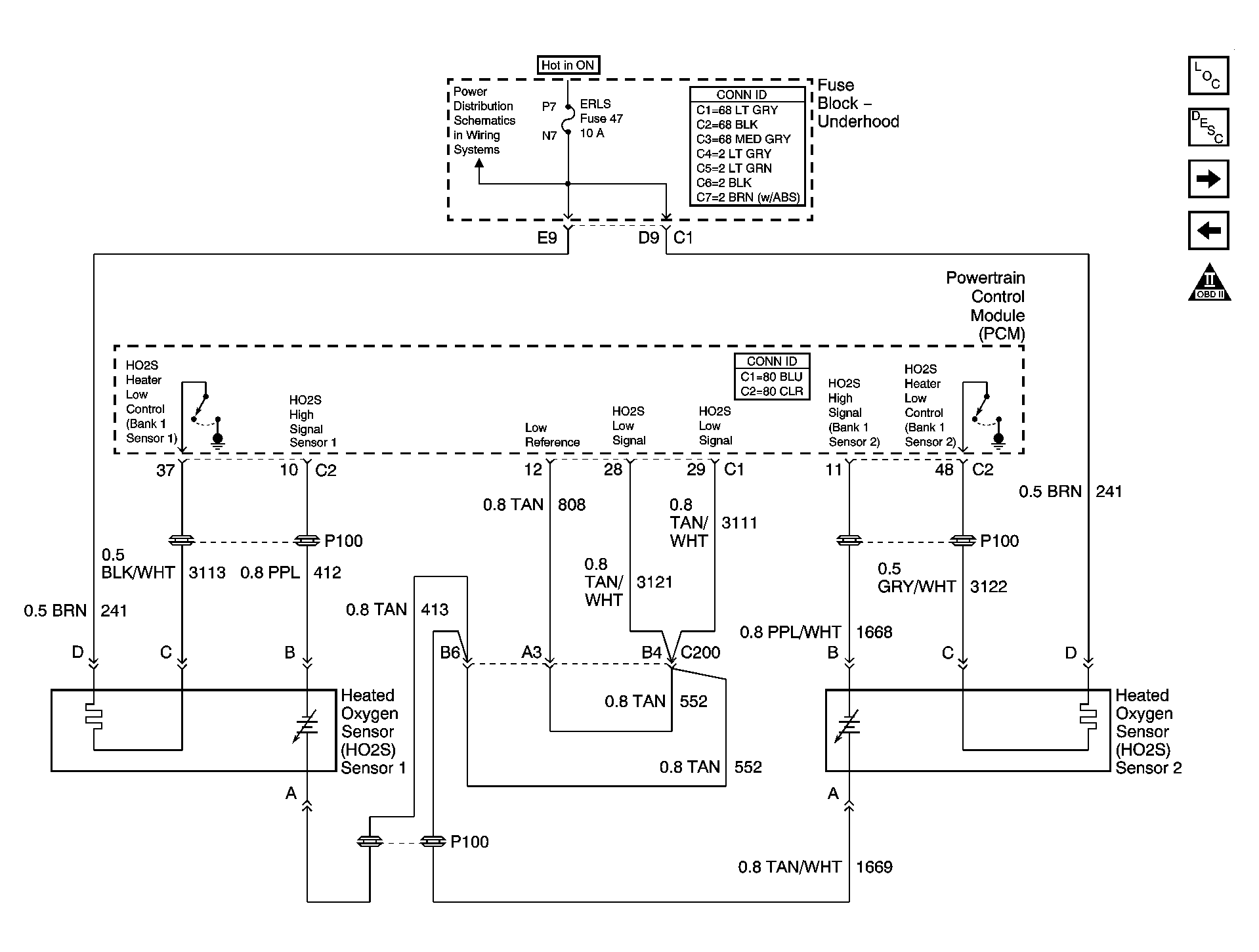

Fig 5: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

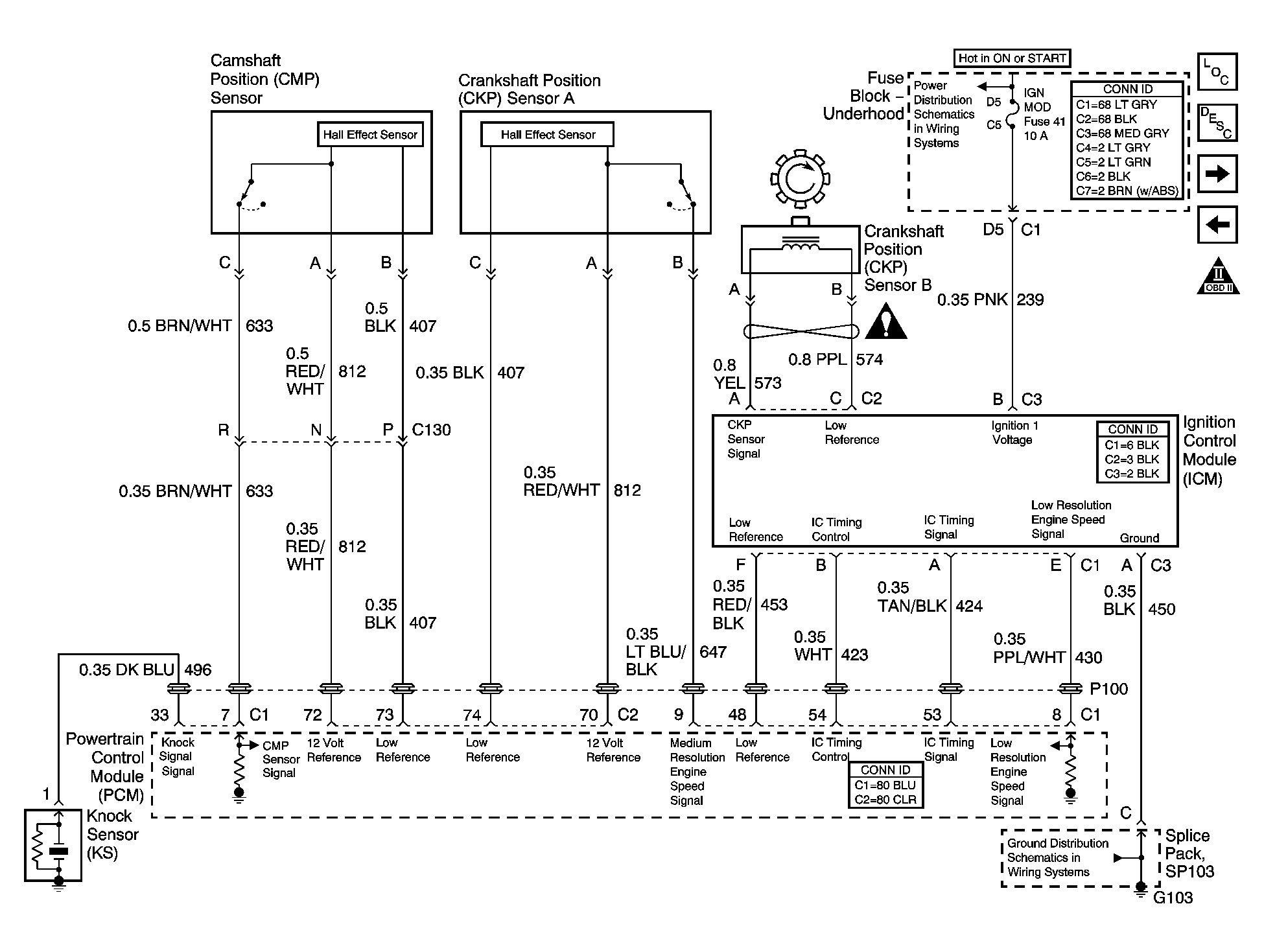

Fig 6: Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

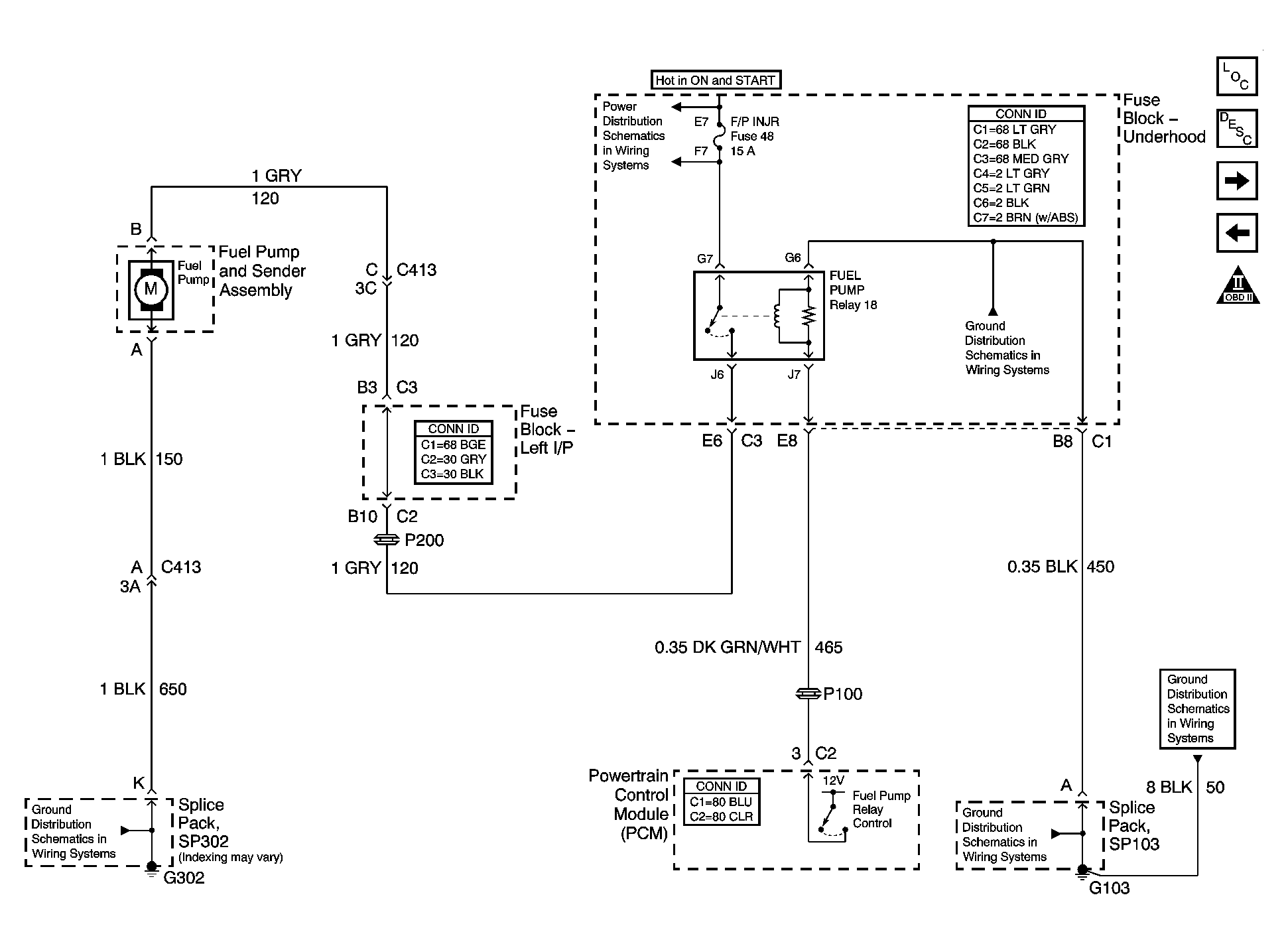

Fig 7: Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

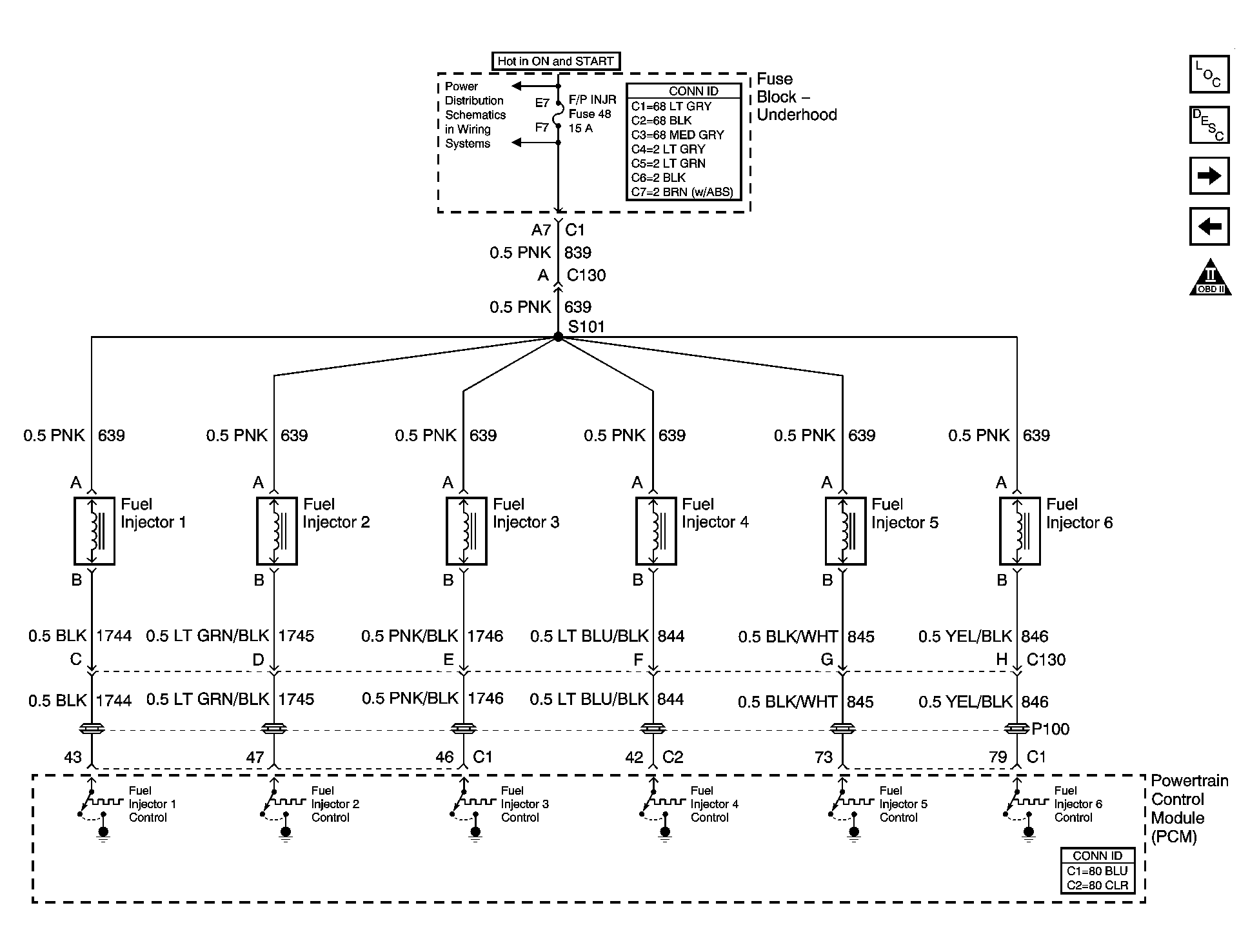

Fig 8: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

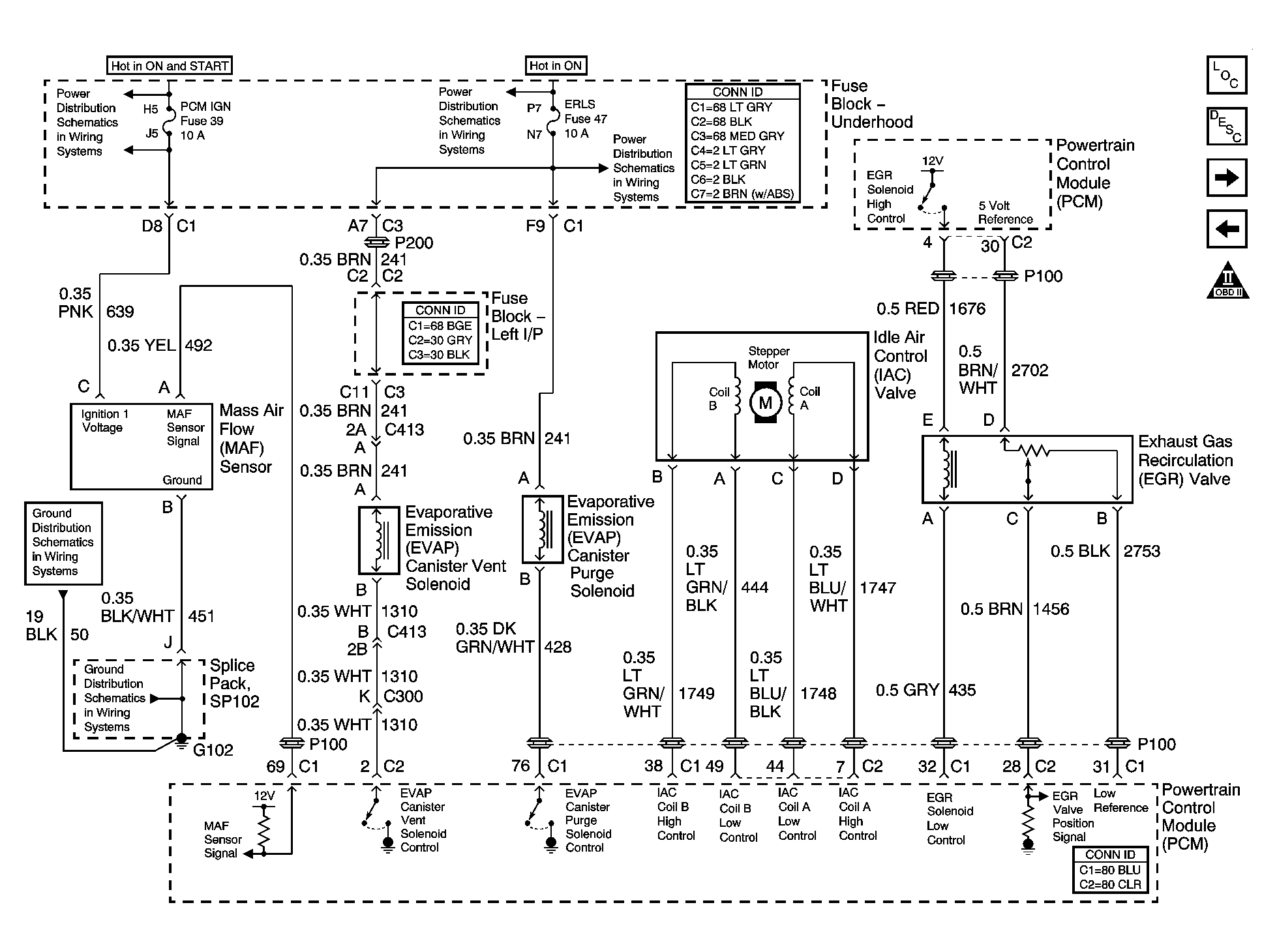

Fig 9: EVAP Controls & EGR Schematic

Courtesy of GENERAL MOTORS CORP.

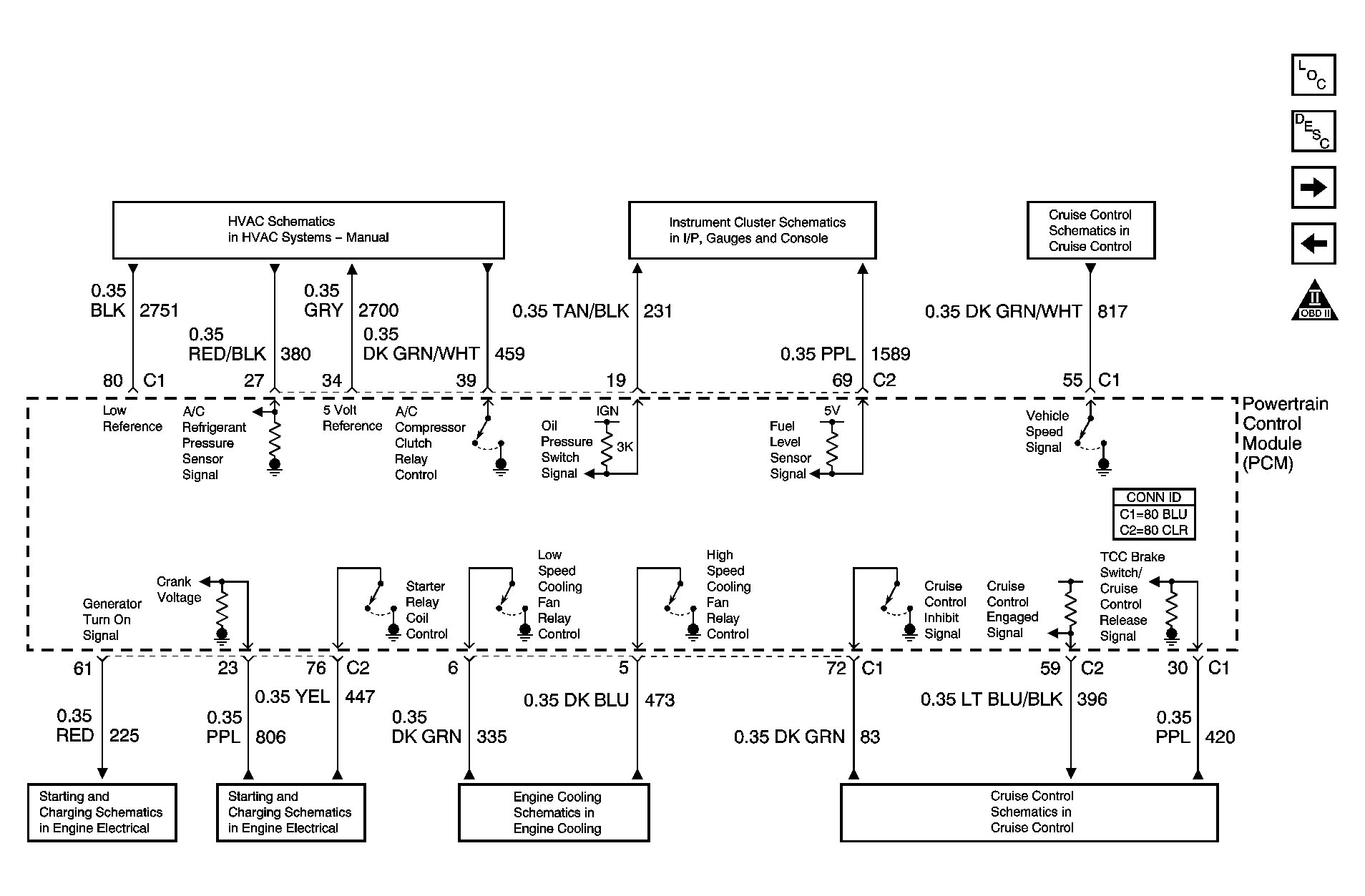

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

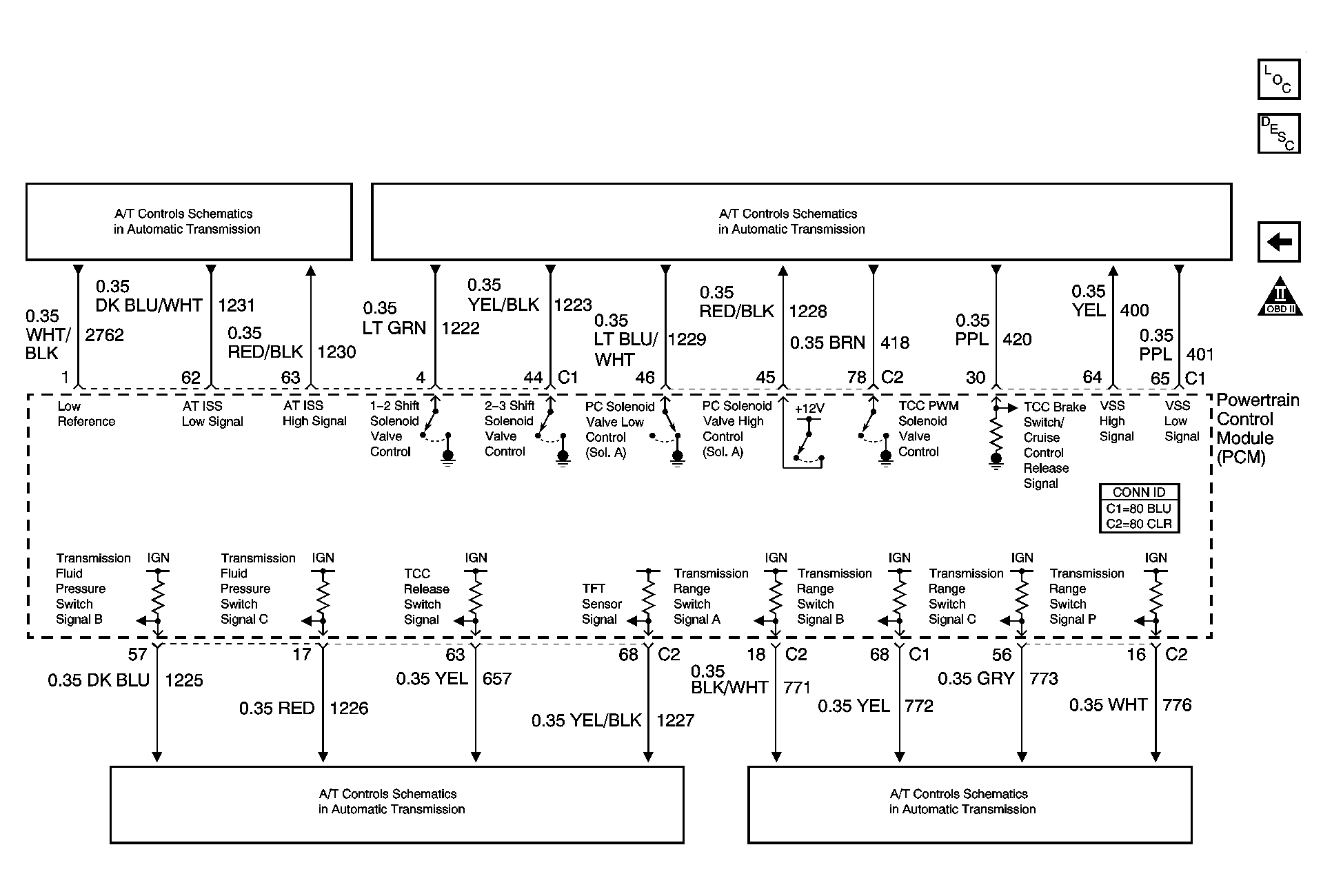

Fig 11: Transmission Controls - A/T Schematics

Courtesy of GENERAL MOTORS CORP.
